Seca 285 - Replacing the Brake Lining; Replacing the Sliding Elements

Replacement instructions
seca 284/ 285
13.09.2010 /KSP 6 30-34-00-811

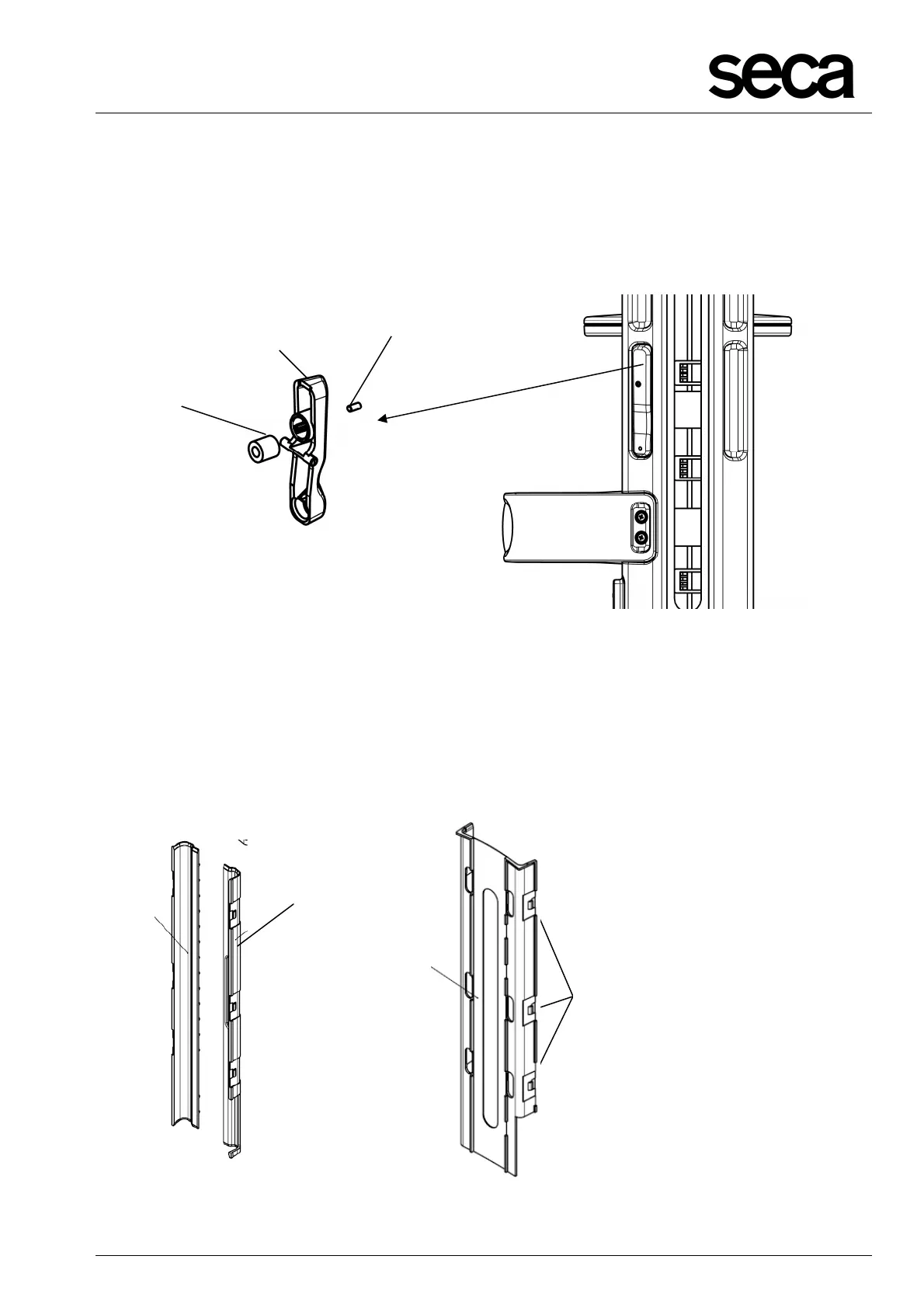

2.2 Replacing the brake lining
• To replace the brake lining (D) it is not necessary to dismantle the slider!
• Unscrew the setscrew (E) from the brake switch (F) and use a thin tool to press out the
brake lining (D); fit in reverse order.
Figure 5: Replacing the brake lining
2.3 Replacing the sliding elements
• To replace the sliding elements (D) it is not necessary to dismantle the slider.
• The sliding elements (G; H; I) are provided with locking tabs which must be snapped
into the recesses in the metal holder.
• The jacket backsides (K; L, Fig. 7) cannot be replaced non-destructively!
Figure 6: Replacing the sliding elements
G
H
I
Locking tabs
D
F
E
