Seca 285 - Replacing the Modular Cable

Replacement instructions
seca 284/ 285
13.09.2010 /KSP 10 30-34-00-811
3.2 Replacing the modular cable
• Open the logo compartment (I).
• To install: guide the modular cable (A) through the front compartment (L) as shown on
the photo.

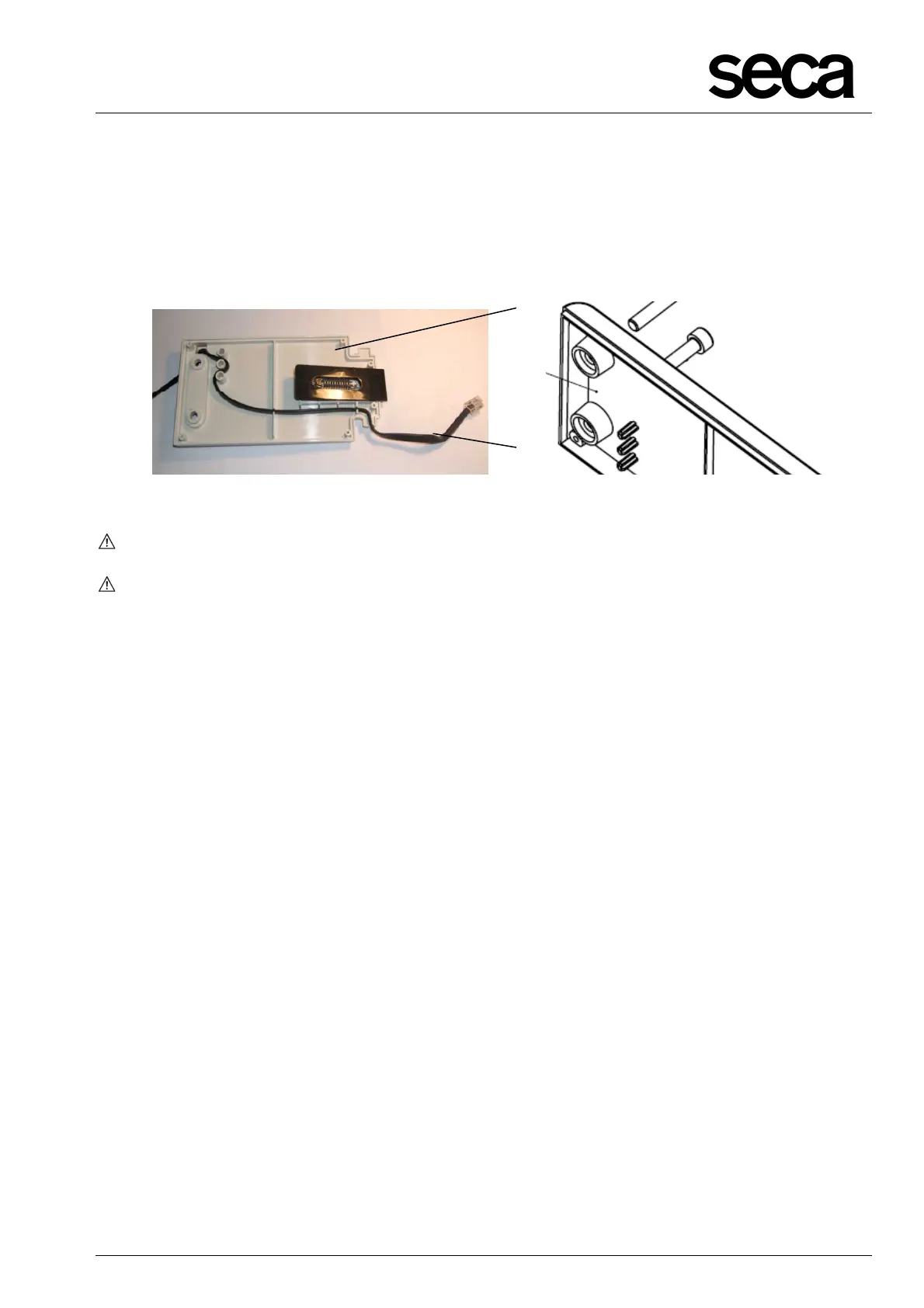

Figure 12: Replacing modular cable and logo compartment
ATTENTION: The cable end must project 110 – 130 mm from the housing!
The modular cable (A) must be fitted so that it is not excessively bent or kinked at the
plug!
I
A
L
