5.5 Mounting the multifunctional display on the wall
NOTE
• The supplied wall plugs are intended for mounting on solid walls.
Special wall plugs may be required for other wall types.
• Note the length of the display cable when determining the mounting
height.
1. Screw the multifunctional display onto the positioner ➔ Mounting the
multifunctional display on the positioner, page 76.
2. Mark the drill holes at the required height.
3. Drill the holes (diam. 5 mm, approx. 35 mm deep).
4. Insert the wall plugs into the drill holes.
5. Insert the supplied screws into the wall plugs.
6. Tighten the screws until each screw shank protrudes approx. 10 mm out
of the wall.

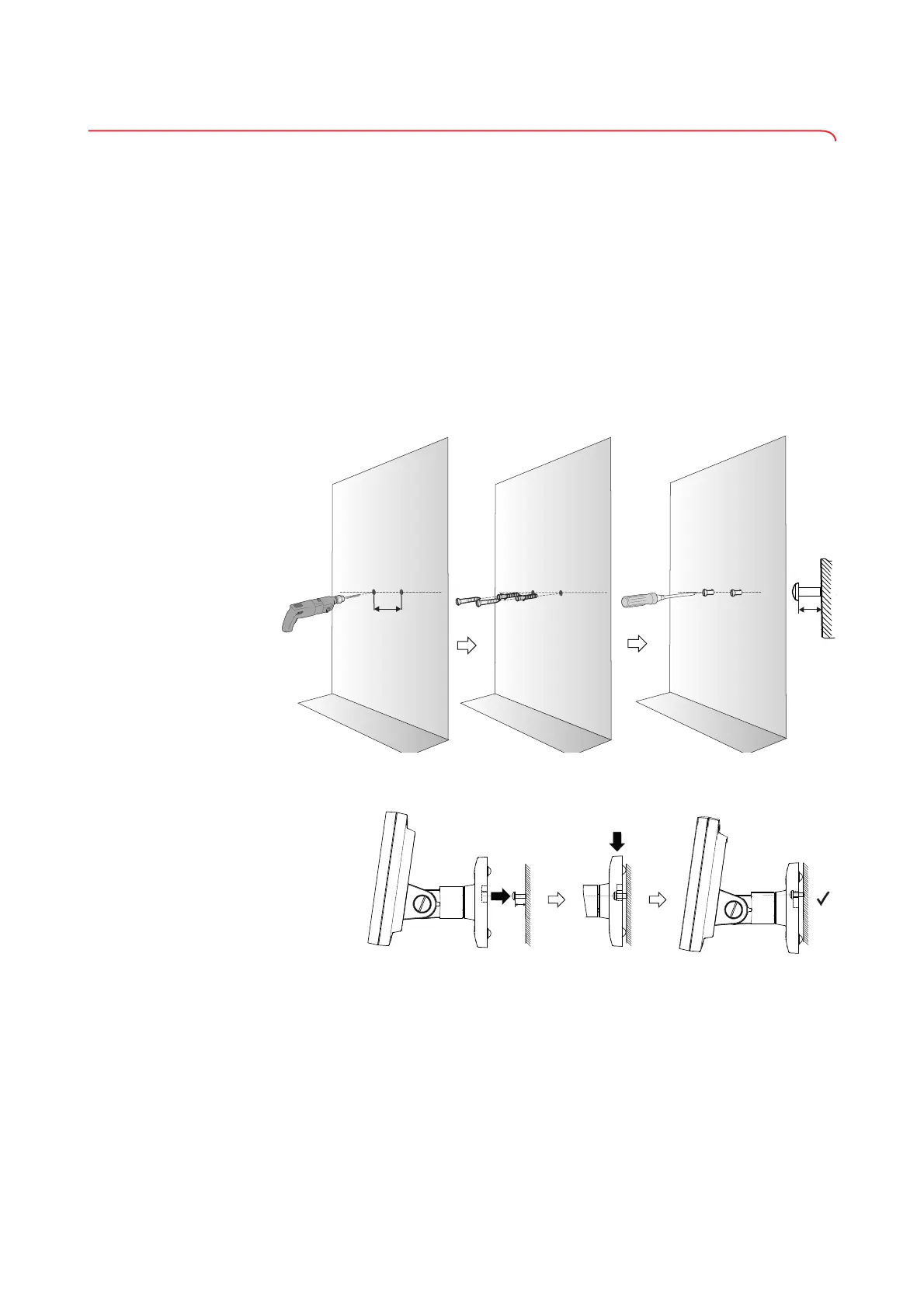

7. Place the multifunctional display with the positioner onto the screws as
shown in the illustration below.
8. Connect the multifunctional display to the weighing platform
➔ Connecting the multifunctional display to the scale, page 78.
