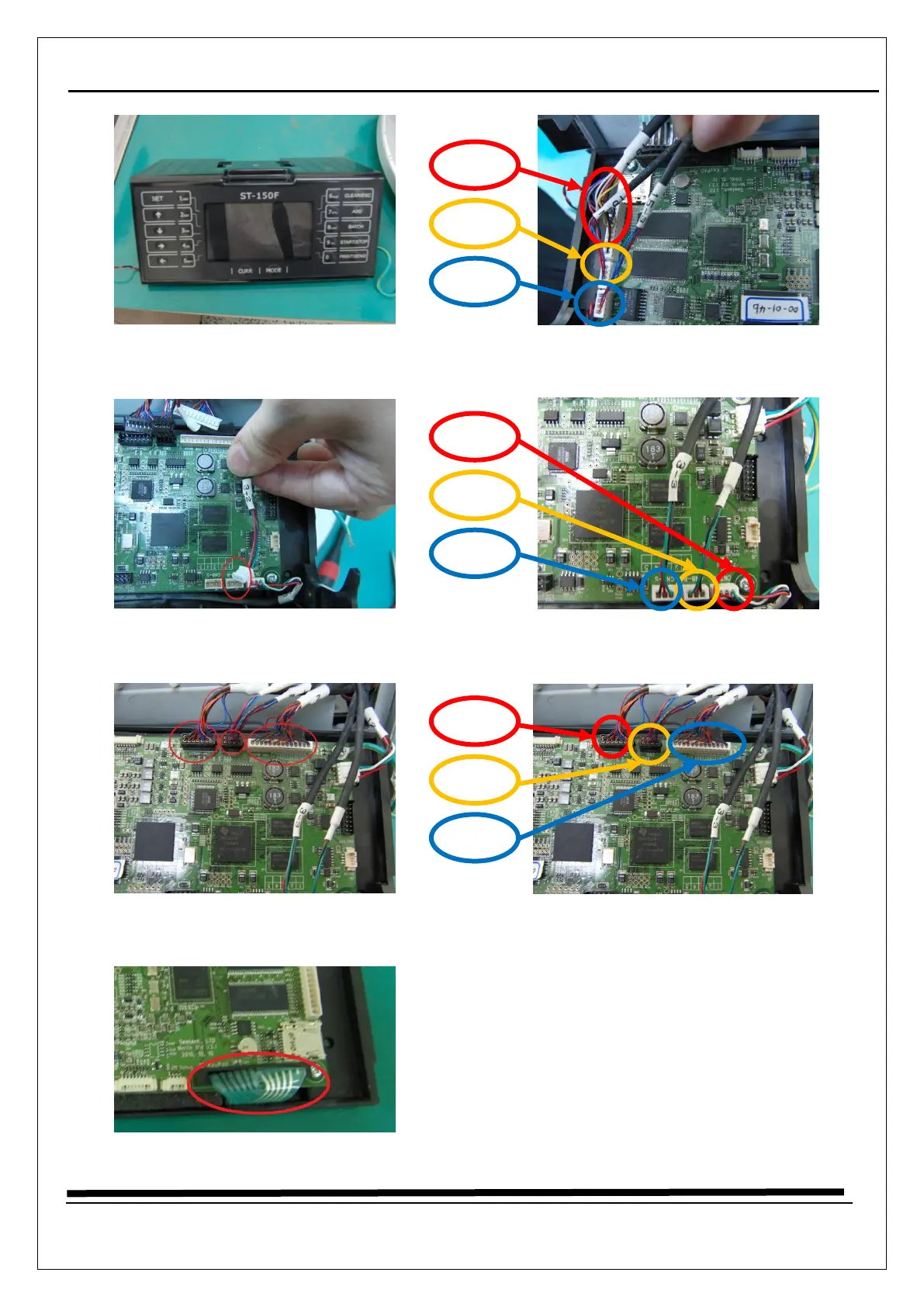

Remove front cover assembly.
Disconnect #15-1, #15-2, #15-3 cable
on Merlin board.
Disconnect #3-1, #3-2, #3-3 cable on
Merlin board.
#3-1
#3-2
#3-3
#15-1
#15-2
#15-3
Disconnect #1-1, #1-2, #2 cable on
Merlin board.
#1-1
#1-2
#2
Disconnect membrane cable.
