3.2. Detection Module – Argos board

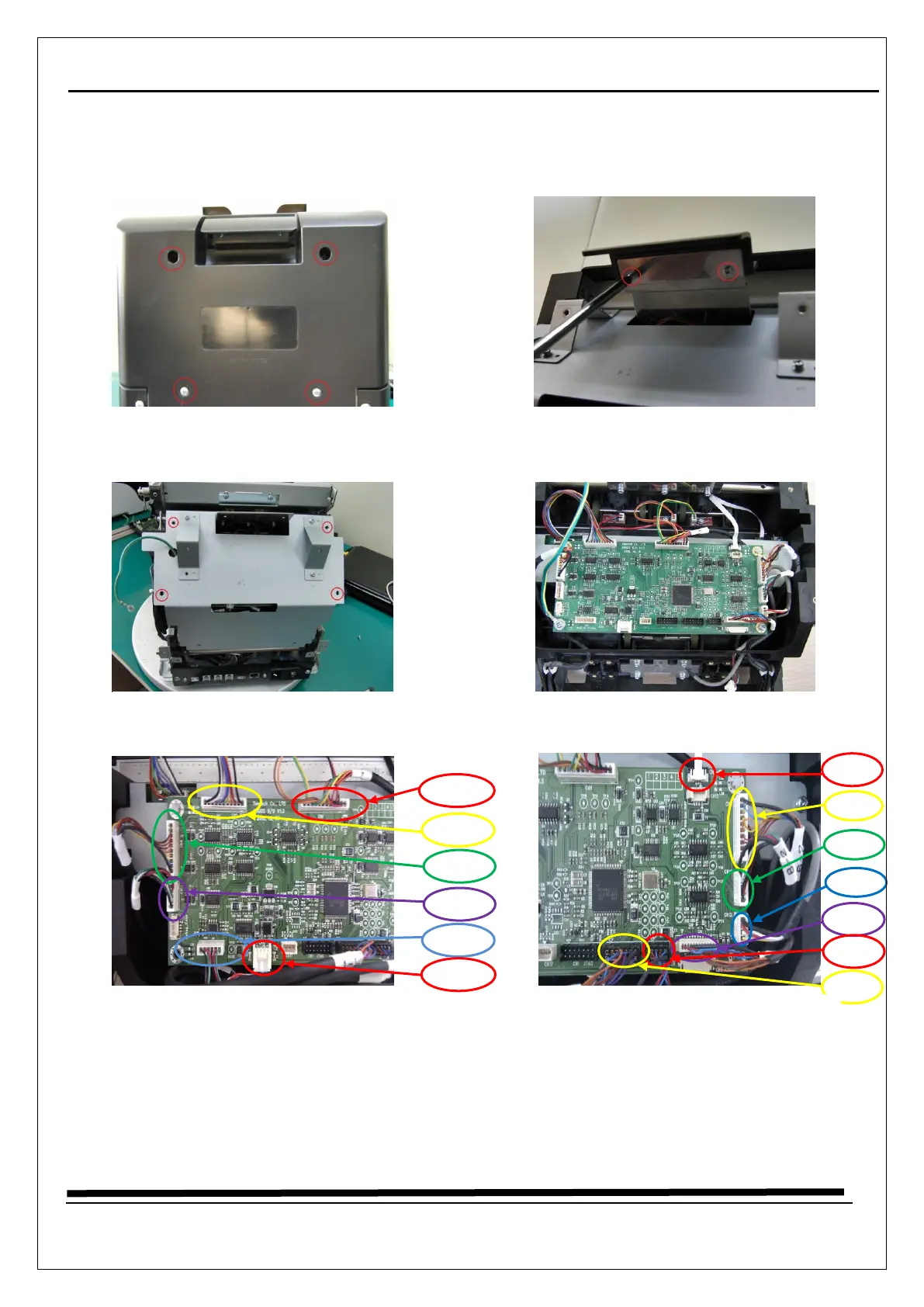

Loosen 4 screws of rear cover.
Loosen 2 screws of middel knob and
remove rear cover.
Loosen 4 screws of middle cover.
Loosen 4 screws of middle cover.
#17-1
#6-2
#8-2
#7
#16
#1-1
#1-2
Disconnect #1-1, #1-2, #6-2, #7, #8-2,
#16, #17-1 cable on Argos Board.
Disconnect #4, #14, #6-1, #8-1, #5-1,
#12 cable on Argos Board.
#4
#14
#6-1
#8-1
#5-1
#12
