SERVICE MANUAL FOR ST-150(F)
25/47 SeeTech

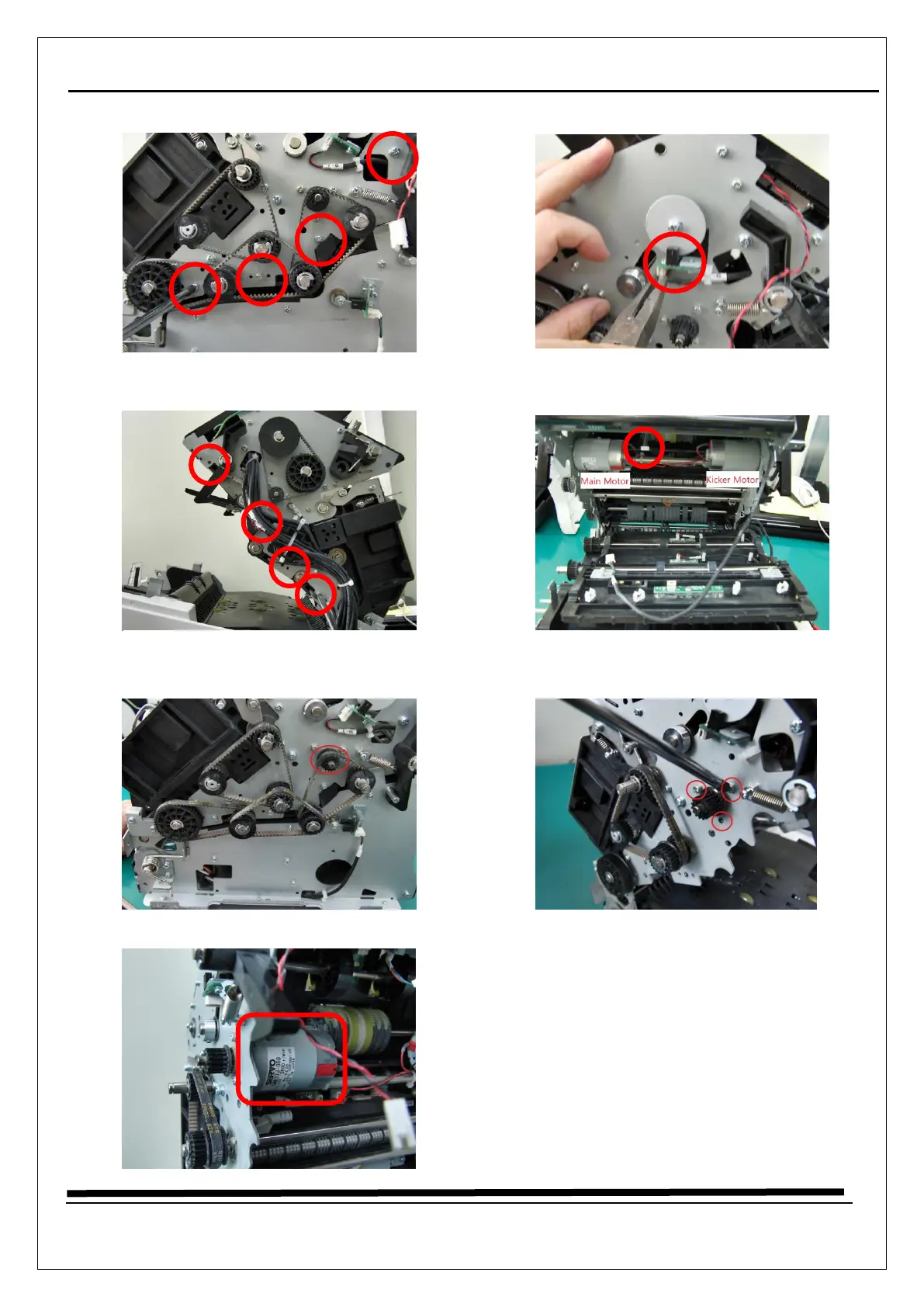

Loosen 4 screws of left side.
Disconnect connector from Encoder
sensor.
Loosen 4 screws of right side.
Disconnect connector in red circle and
open Low drive assembly.
Remove belt in red circle.
Remove Pulley and loosen 3 screws.
