SERVICE MANUAL FOR ST-150(F)
28/47 SeeTech

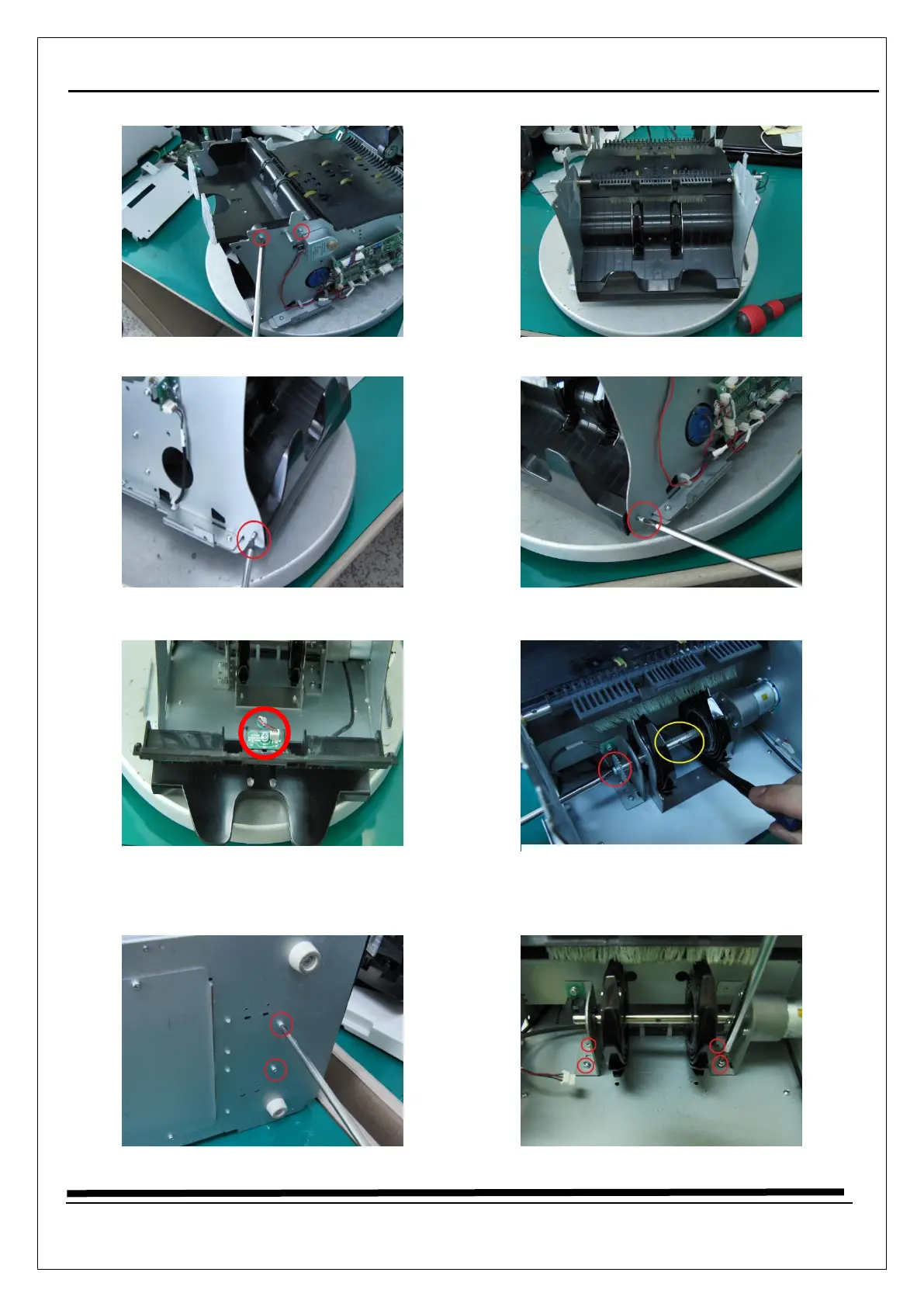

Loosen 2 screws of right side.
Remove Reject pocket.
Loosen screw of left side.
Loosen screw of left side.
Disconnect connector and remove
stacker pocket.
Fix position the shaft by slender driver
as yellow circle and remove the screw
in red circle
Loosen 2 screws of bottom.
Loosen 4 screws.
