SEG Electronics GmbH Technical Manual WIC1

14 DOK-TD-WIC1E, Rev. M

4.2 User interface

4.2.1 WIC1-1

Pursuant to the intended maintenance-free design and for reducing cost there is no user interface with LED indica-

tors and display. The setting values of the protective functions can be recorded directly at the protection relay.

For the basic version WIC1-1 the adjustment of protective functions can only be done via the communication inter-

face which is placed above the terminal blocks at the left of the device.

The adjustment can take place by means of PC. For the short-circuit element here a separate password is needed.

The factory setting for this password is: seg

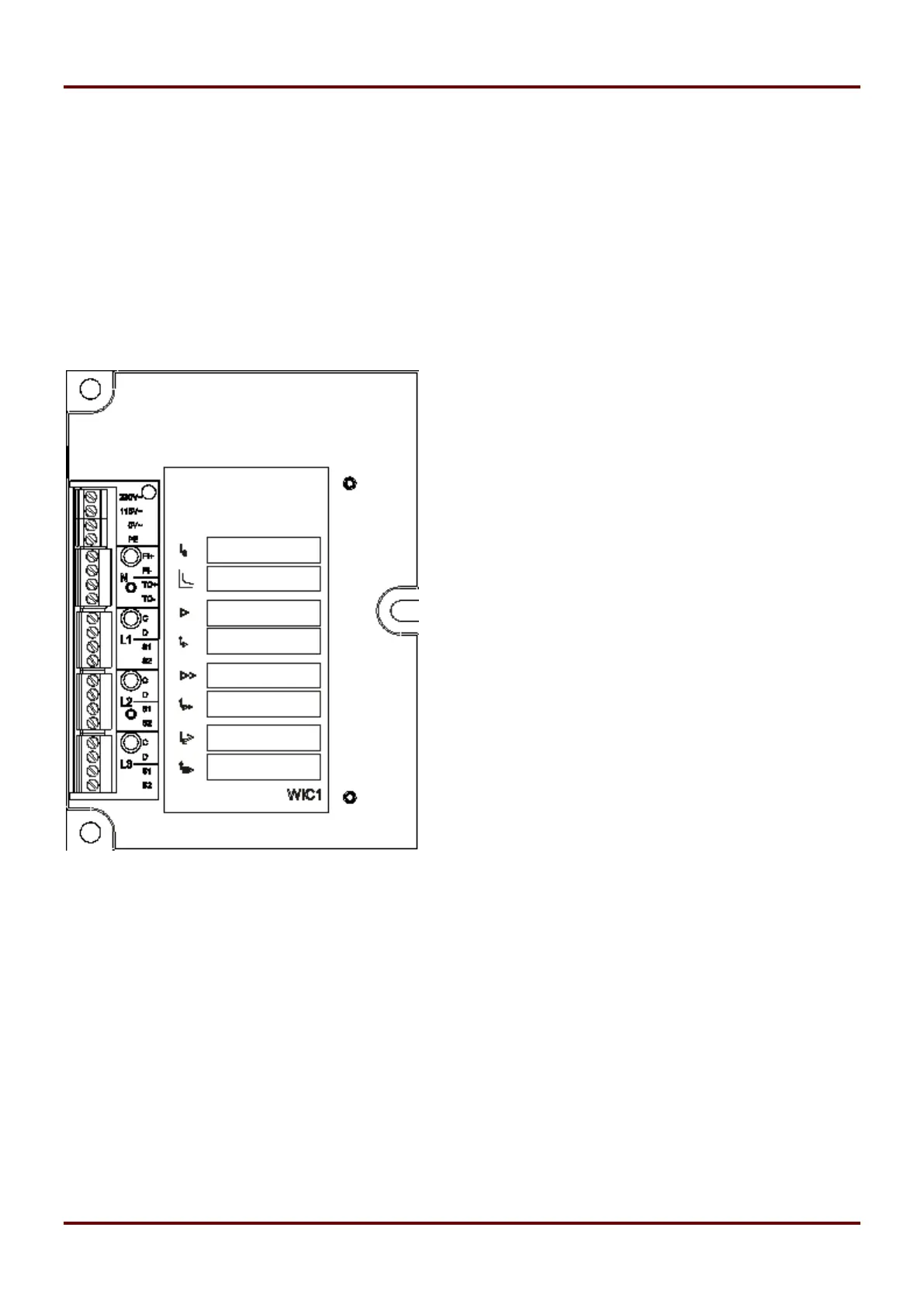

Figure 4.1: WIC1-1
