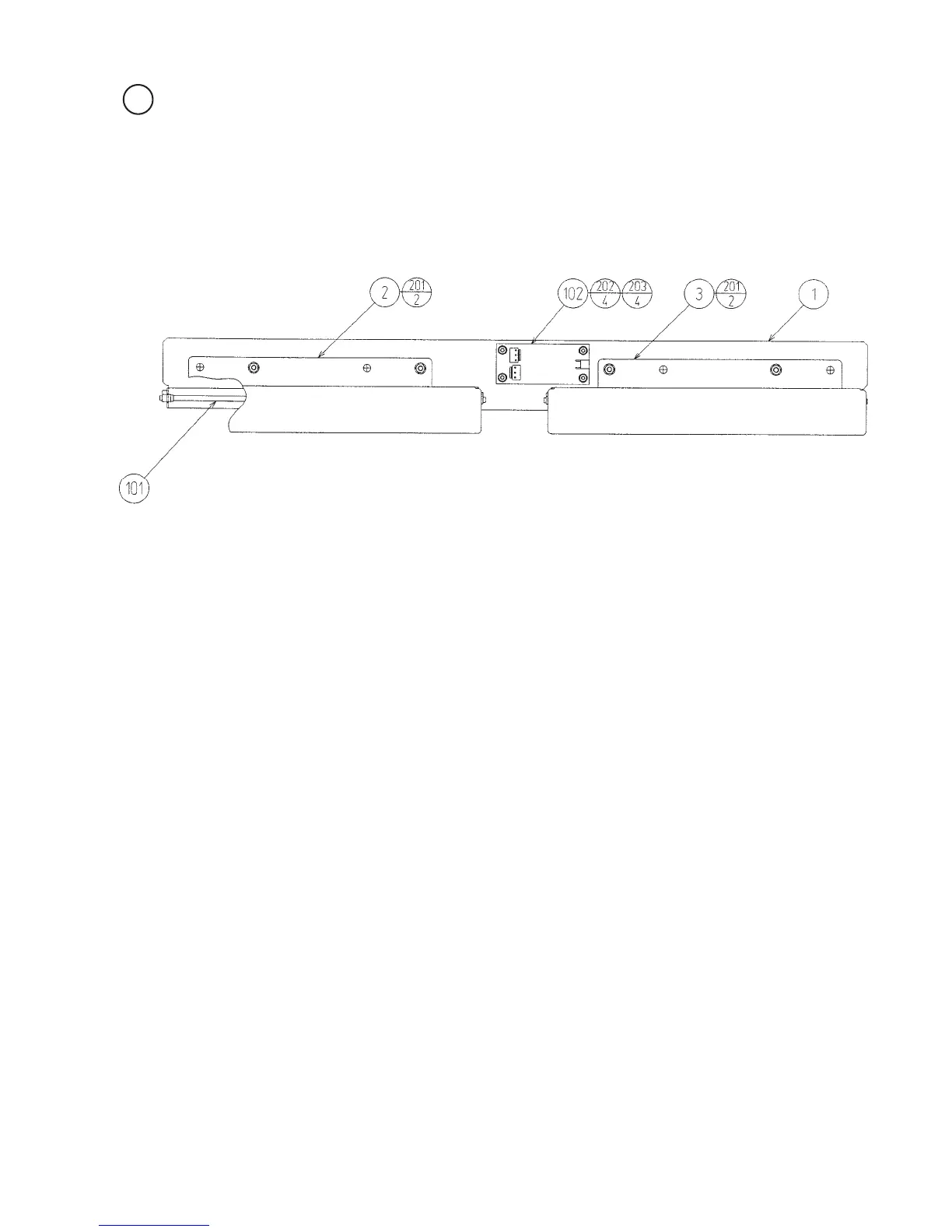

ASSY LIGHT (FRI-0220)
ITEM NO.
PART NO.
DESCRIPTION
NOTE
1
FRI-0221
HOLDER
2
FRI-0222
HOLDER PLATE A
3
FRI-0223
HOLDER PLATE B
101
390-5697-01
CATHODE TUBE PINK W/CONN
102
838-13038
CATHODE TUBE INVERTER 12V
103
280-5275-SR10
CORD CLAMP SR10
104
601-0460
PLASTIC TIE BELT 100 MM
201
050-F00400
FLG NUT M4
202
050-U00300
U NUT M3
203
060-F00300
FLT WSHR M3
100
102
Table of Contents
Table of Contents
4
Introduction of the Owners Manual
5
Specifications
5
Handling Precautions
7
Precautions Concerning Installation Location
9
Operation
11
Operation
12
Name of Parts
13
Accessories
14
Assembling and Precautions
17
Precautions to be Heeded When Moving the Machine
30
Contents of Game
32
Explanation of Test and Data Display
39
Switch Unit and Coin Meter
40
System Test Mode
41
Game Test Mode
54
Control Panel
61
Removing the Control Panel
61
Adjusting and Replacing the Handle's (Steering Wheel's) V.r
62
Greasing
63
Accelerator & Brake
64
Adjusting and Replacing the V.r
64
Greasing
65
Paddle (Wing) Shift
66
Monitor
72
Cautions and Warnings Concerning the Safety for Handling the Monitors
72
Cautions to be Heeded When Cleaning the Crt Surfaces
74
Adjustment Method
75
Replacing the Flourescent Lamp
77
Periodic Inspection Table
79
Troubleshooting
81
Game Board
84
Removing the Board
84
Filter Board
86
Error Display (Drive Control Board)
87
Design Related Parts
89
Communication Play
91
Installation Precautions
91
Connecting the Communication Cables
91
Setting for Communication Play
95
Cautions to be Heeded When Using the Test Mode
95
Parts List
96
Wire Color Code Tabe
141
Other manuals for Sega F355 Challenge
