Monitor adjustments have been made at the time of shipment. Therefore, do
not make further adjustment without a justifiable reason. Adjusting the
monitor which contains high tension parts is a dangerous work. Also, an
erroneous adjustment can cause deviated synchronization and image fault,
resulting in malfunctioning.
When making adjustment, utilize a resinous Alignment Rod. Servicing with
bare hand or using conductive tools can cause electric shock.
For adjustment, use the Resinous Adjustment Rod.

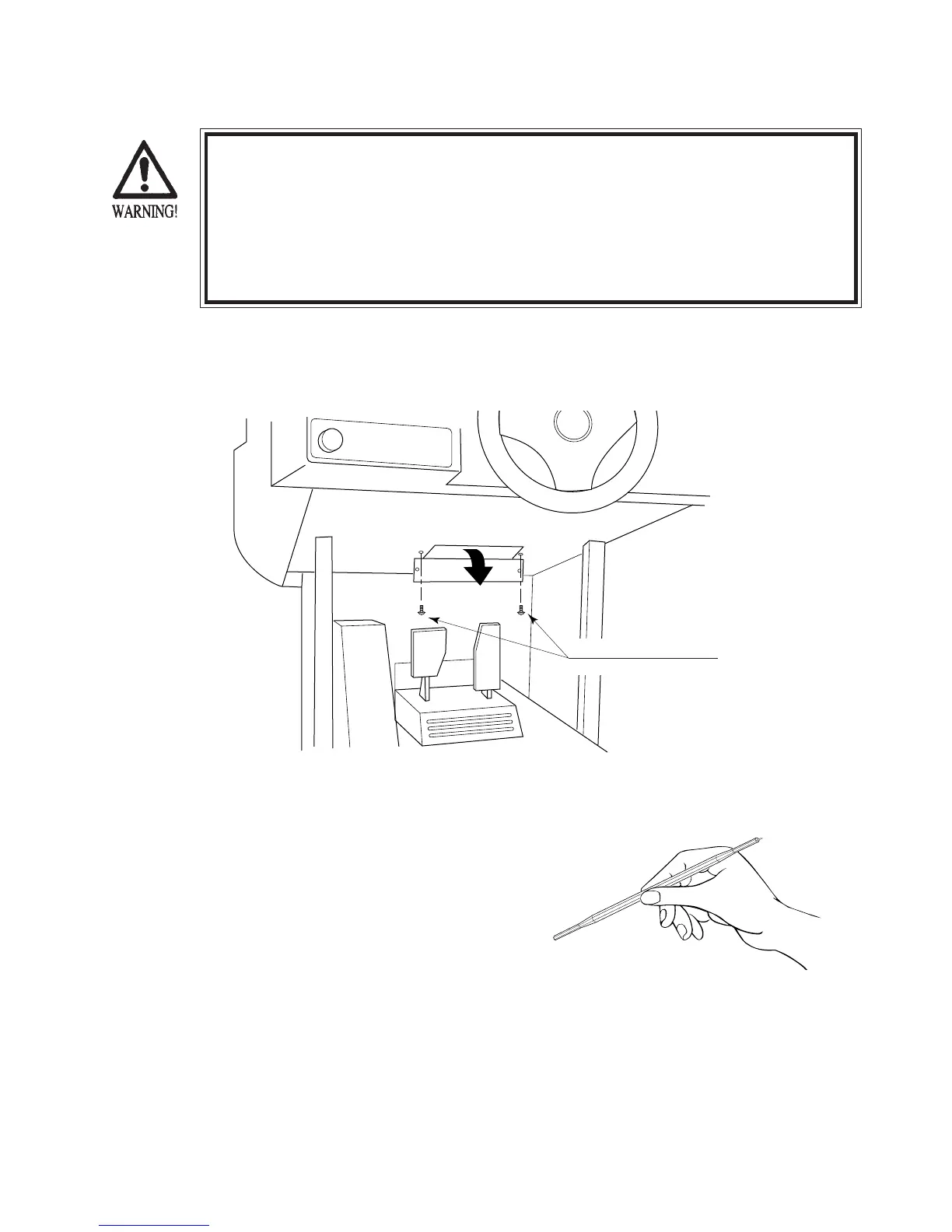

FIG. 14. 3 b
14 - 3 ADJUSTMENT METHOD
FIG. 14. 3 a
To make monitor adjustment, take off the 2 Truss Screws from CRT ADJUST PANEL portion.
The Adjustment BD appears when the screws are removed.
TRUSS SCREW (2) black
M4 X 8
