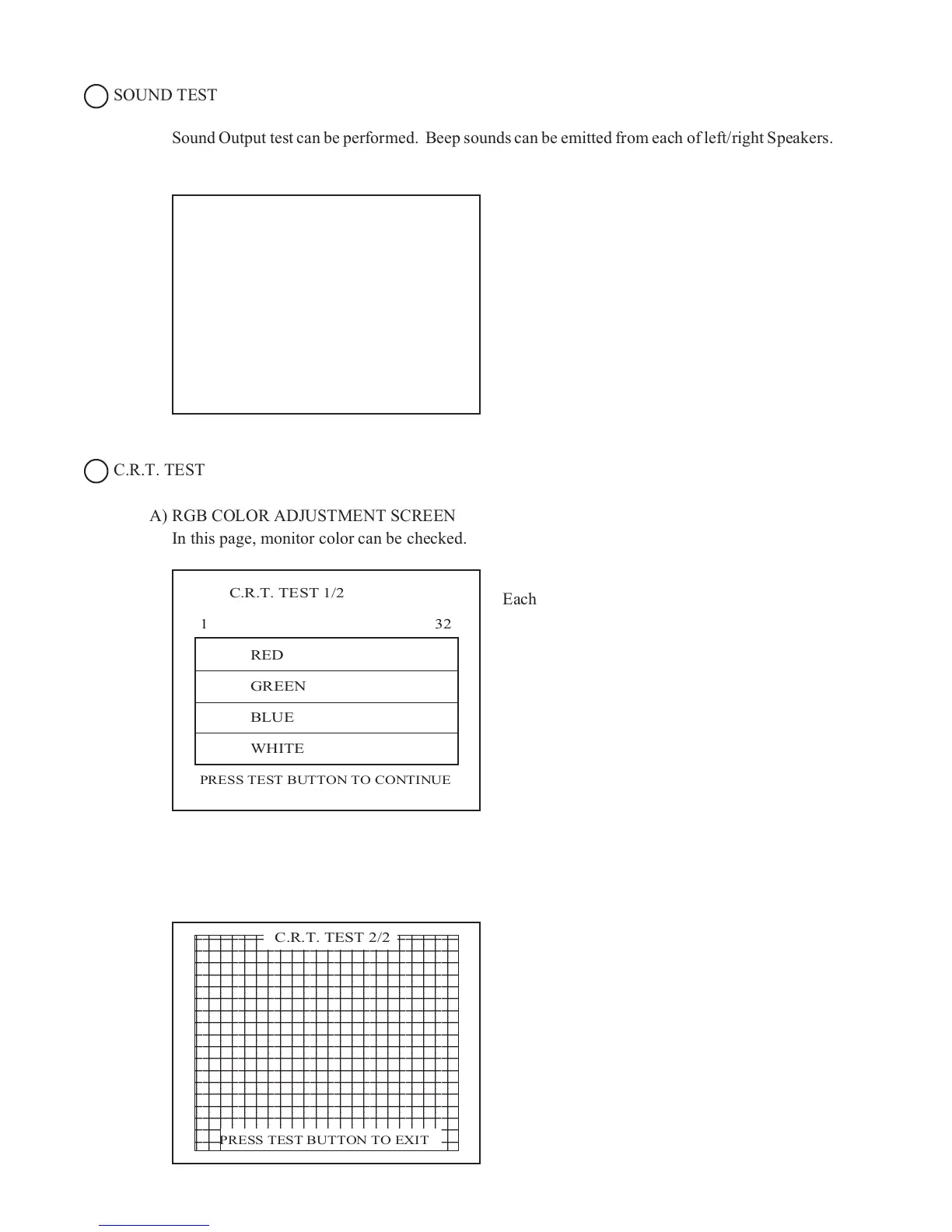

C.R.T. TEST 1/2
1 32
RED
GREEN
BLUE
WHITE
PRESS TEST BUTTON TO CONTINUE
C.R.T. TEST 2/2
PRESS TEST BUTTON TO EXIT
SOUND TEST
Sound Output test can be performed. Beep sounds can be emitted from each of left/right Speakers.
C.R.T. TEST
A) RGB COLOR ADJUSTMENT SCREEN
In this page, monitor color can be checked.
Each of red, green, and blue is the darkest at the
leftmost end, and becomes brighter towards the
right-hand end in 31 gradations. Monitor
brightness is satisfactory if the white color bar
is black at the left end and if it is white at the
right end.
Press the TEST button to proceed to the next
page.
B) MONITOR SIZE ADJUSTMENT SCREEN
In this page, monitor size can be checked.
Adjust so that the checkered patterns do not go
beyond the screen.
Press the TEST button to return to the menu
mode.
SOUND TEST
RIGHT SPEAKER OFF
LEFT SPEAKER OFF
-> EXIT
SELECT WITH SERVICE BUTTON
AND
PRESS TEST BUTTON
fEmitted from the right-hand side Speaker.
fEmitted from the left-hand side Speaker.
fReturns to the menu mode.
