FIG. 15 c
FIG. 15 d
TRUSS SCREW (6) black
M4 X 8

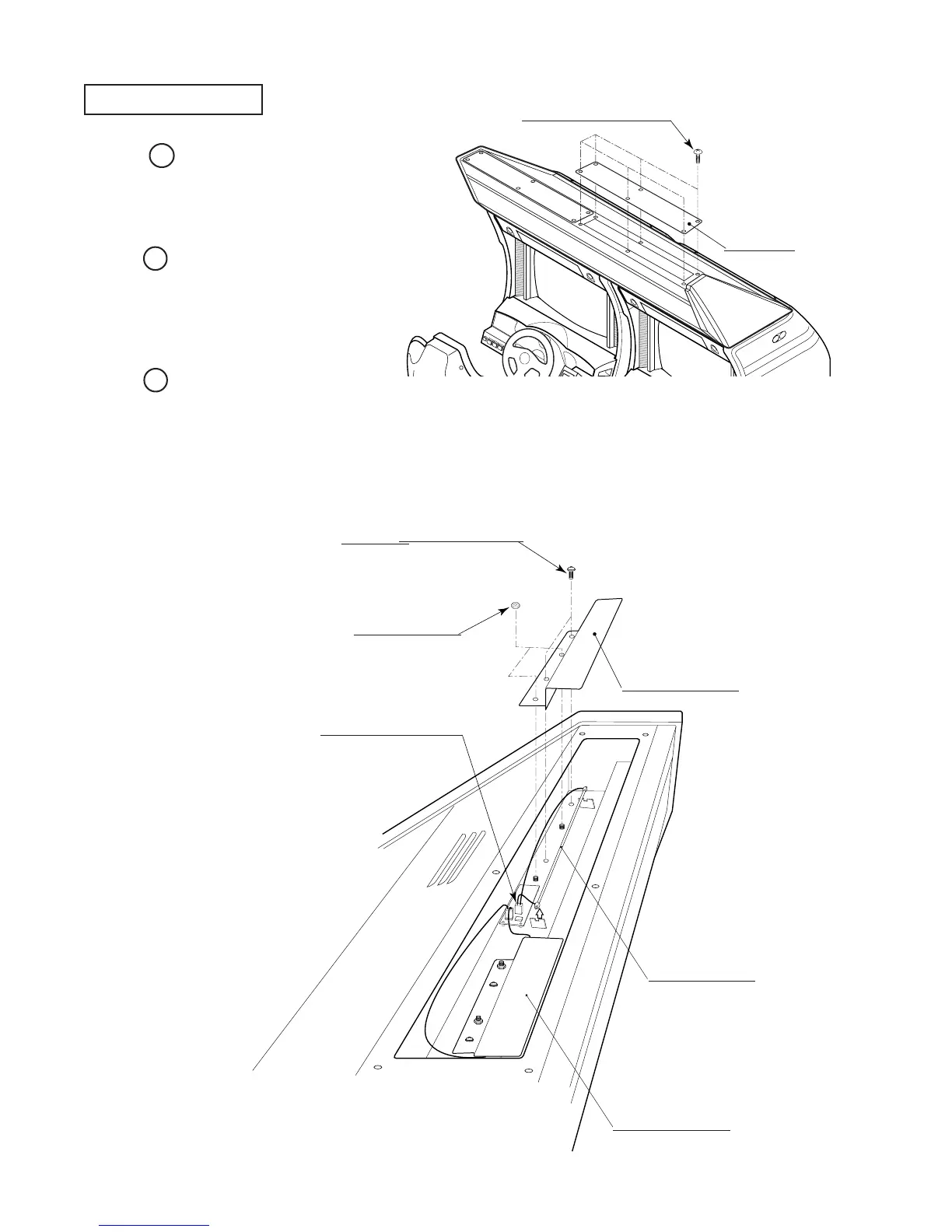

Take off the 6 truss screws
to remove the UPPER LID.
Take off the 2 flange nuts
and 2 screws to remove the
HOLDER PLATE B. The
same can be applied to the
HOLDER PLATE A.
Remove the HOLDER
PLATE, and the CATHODE
TUBE appears. Disconnect
the connector to remove the
CATHODE TUBE.
FLANGE NUT (2)
M4
SCREW (2)
M4 X 8, w/flat & spring washers
HOLDER PLATE B
HOLDER PLATE A
CATHODE TUBE
390-5697-01
UPPER LID
Disconnect the connector
CATHODE TUBE
3
2
1
