These are the two bolts which require Loctite
(242). Reassemble by following these instruc-
tions in reverse having a care for the gold and
black spacers.
CENTERING AND SETTING THE VOLUME FOR THE STEERING ASSEMBLY:
[P 5/6]

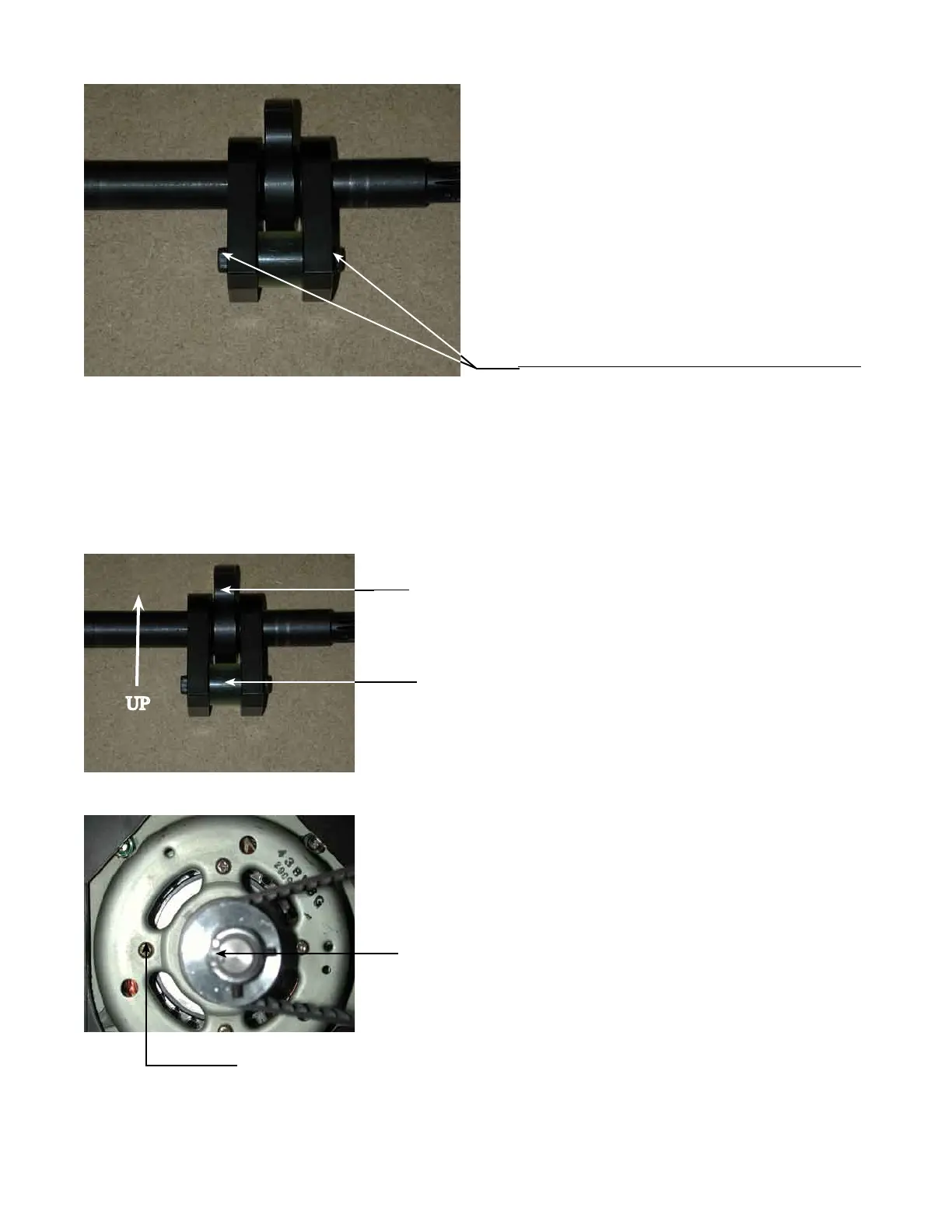

Be sure to center the shaft with the cam in the upwards
position and the Stopper dangling downwards.
Cam
Stopper
Key
Left Screw
Then turn the motor until the key points to the left
screw on the motor.
Now to put the belt on at this time allow enough roll
in the pully for the belt to go on over the pully and still
line up.
Check after the belt is on that the shaft is still centered
and the key points to the left screw.
