192
PARTS LIST
18

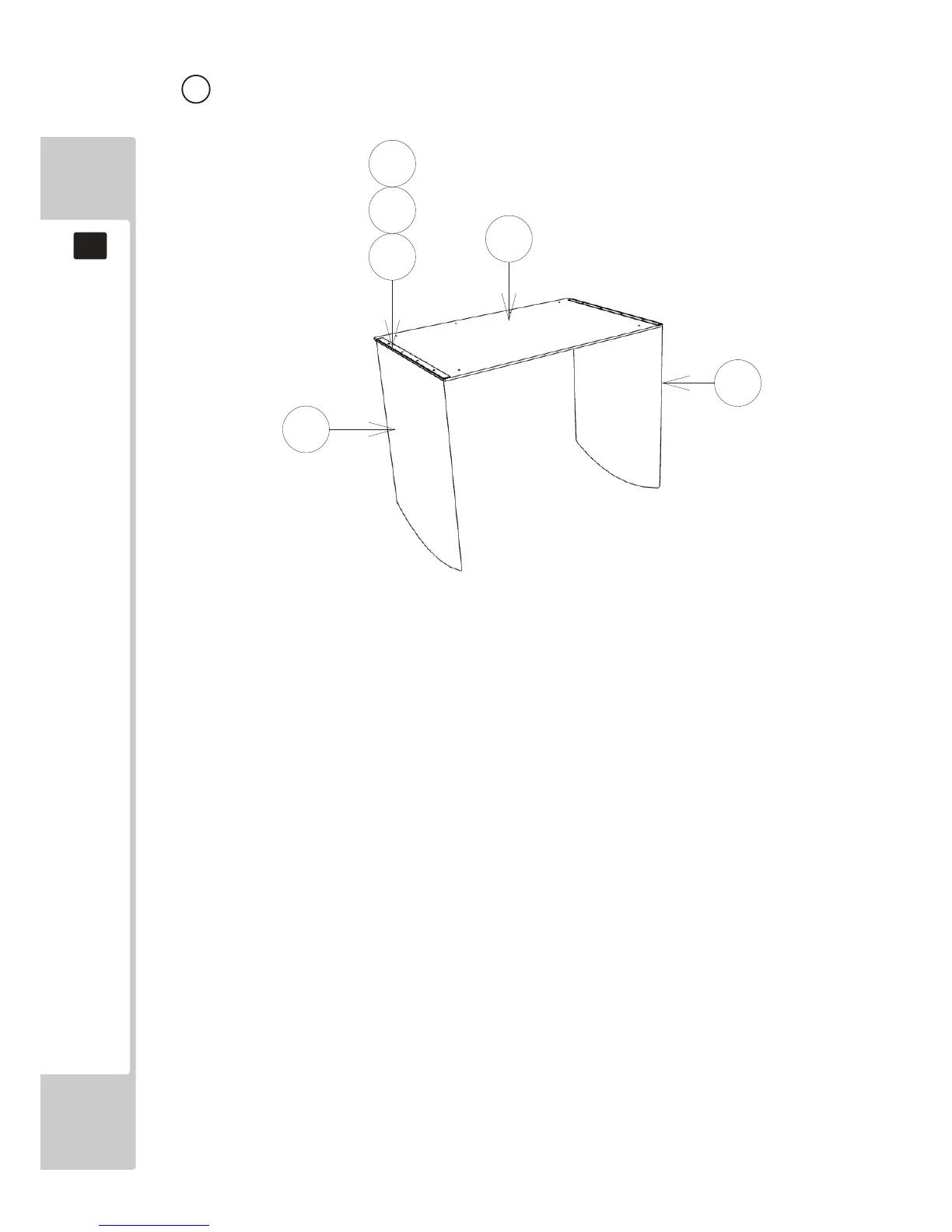

26 ASSY ROOF (LMA-8500UK) (D-1/1
)
ITEM NO PART NO DESCRIPTION QTY
***1 LMA-8501UK ROOF TOP WOOD 1
***2 LMA-8502UK BRKT SIDE CURTAIN STOPPER 2
***3 LMA-8503UK SIDE CURTAIN L 1
***4 LMA-8504UK SIDE CURTAIN R 1
***201 029-B00416-0B M4X16 SKT BH BLK 8
***202 068-441616-0B M4 WSHR 16OD FLT BLK 8
1
2
3
4
201
202
