CONTROL UNIT
10
10-9 REPLACING THE CONTROLLER CABLE
• Alwaysremovepower,switchoffthemachineandremovethepowercable
beforeattemptinganywork.Failuretoremovepowermayresultininjuryorre
hazard.
• Twoqualiedtechniciansormaintenanceengineersareneededinorderto
performthisoperation.

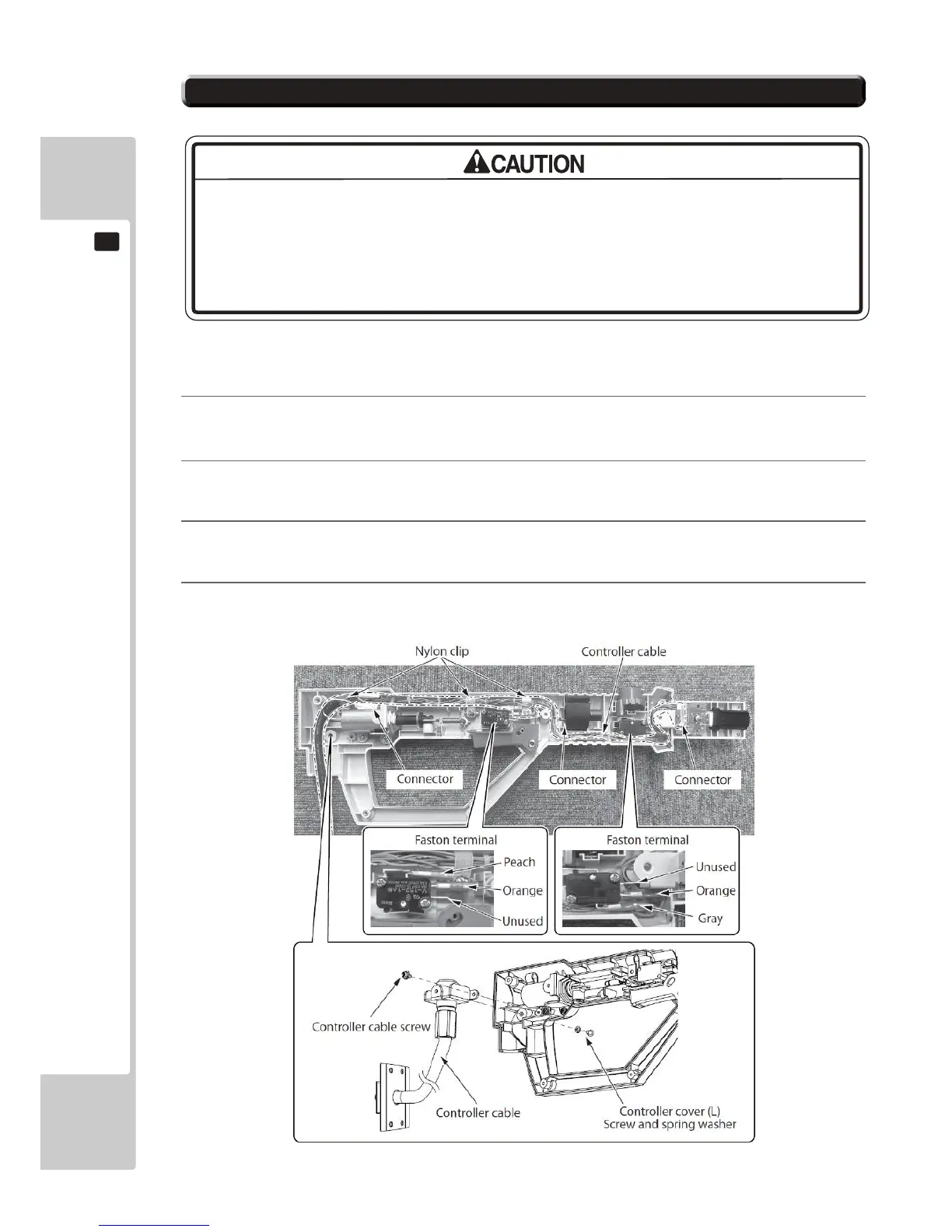

1
Remove power from the machine and disconnect the mains power connector.
2
Refer to “10-3 Disassembling the Poltergust Controller” to disassemble the Poltergust controller.
3
Remove the nylon clips (3), connectors (3), and the fast on terminals (4).
4
Remove the screw (1) and spring washer (1) from the controller cover L, and remove the screw (1) from the
controller cable, then remove the controller cable.
Refer to “10-3 Disassembling the Poltergust Controller” to disassemble the Poltergust controller.
