INSTALLING MONITOR, 52"/62"DX
1
This game is provided with either a 52 or
62 monitor dependant upon the model
purchased. At least 2 people are required
to perform the installation. The footnotes
you see, refer to parts shown on the last
page of the instructions.

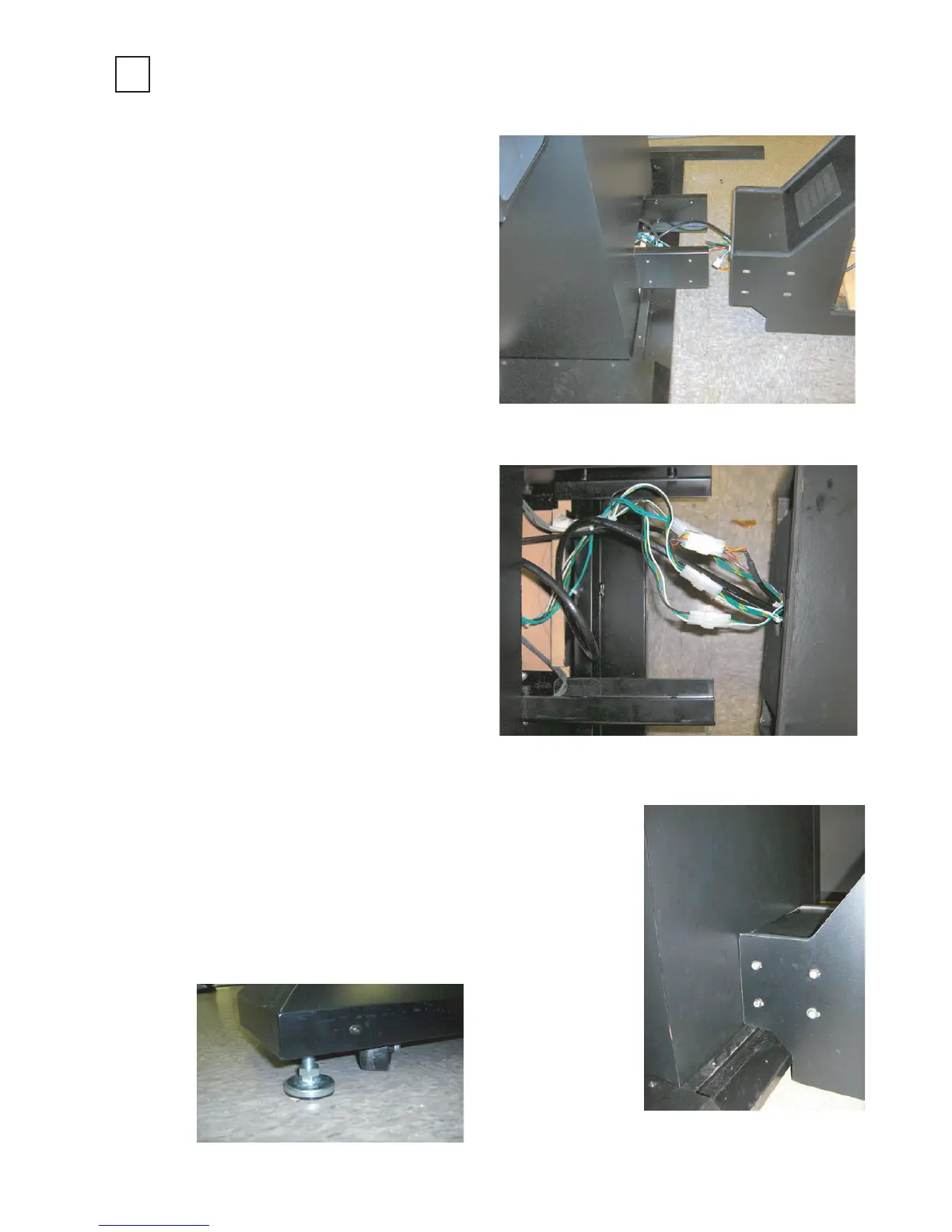

Start the assembly by joining the front
and rear sections of the game. (Figure 1)
When the two sections are aligned, feed
the video cable through the cabinet from
the game board to the rear cabinet then
up through the hole in the platform where
the monitor will rest.. Next connect the
harnesses extending from the front
cabinet to the rear cabinet as shown in
Figure 2.
When the harnesses are connected, join
the two halves together by inserting the
U-Brackets of the rear into the slots of
the front cabinet. The front cabinet may
require lifting to properly align the
brackets with the slots.
After the halves are joined together,
install the 8 tamper proof bolts and
washers, 4 in each side of the cabinet to
secure the 2 halves. (Figure 3) Note-
hardware is generally provided in the
location where it is to be installed. (Also
check parts bag)
Once secured, lower all the leg levelers
to the floor to help prevent the game from
moving as additional operations are
performed. Figure 4
Figure 1
Figure 2
Figure 3
Figure 4
9
(52”LG and 62”ZENITHI)
