11

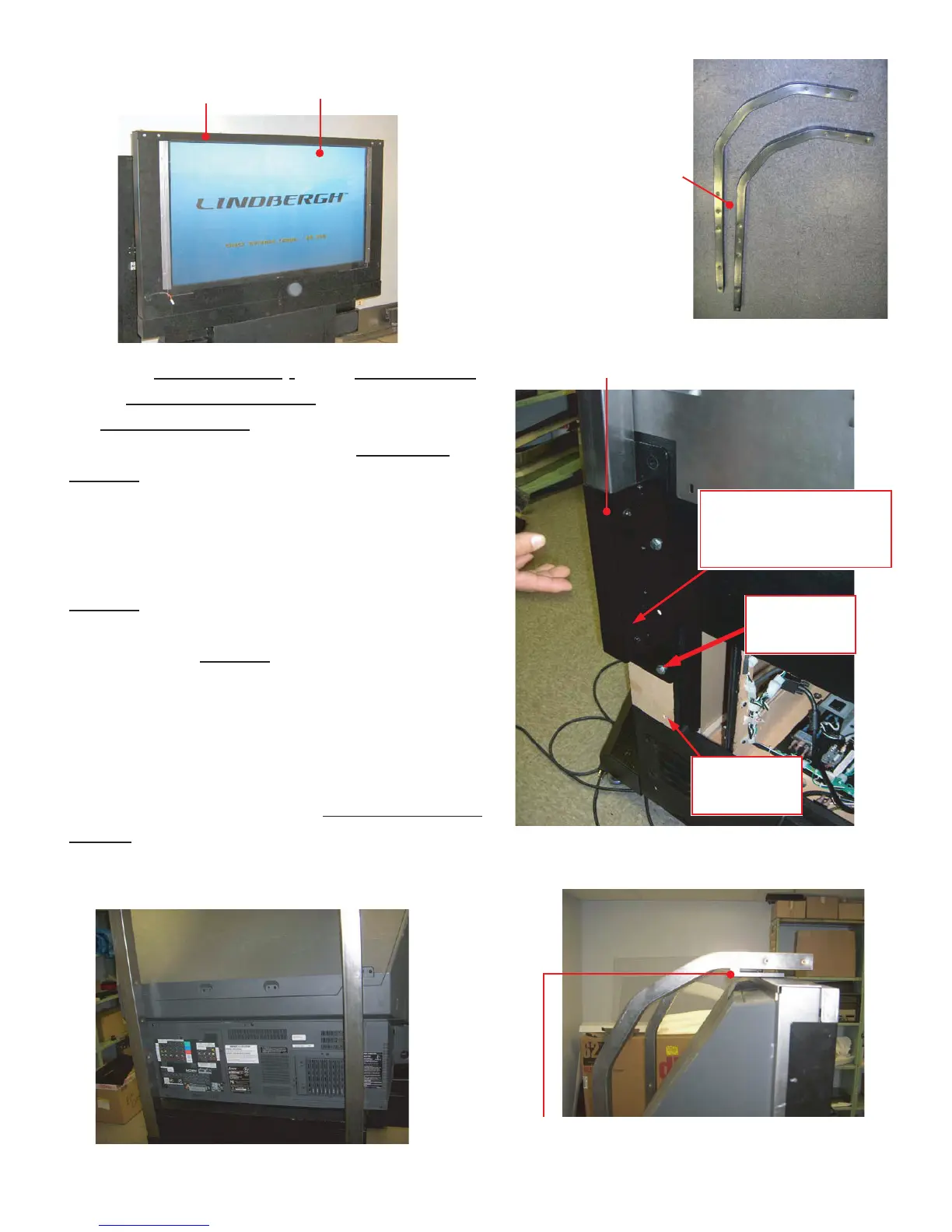

Install the Plexiglas shield
4
and its retaining strips
5
on the monitor side protectors
6
(Figure 8A). Locate
the rectangular tubing
7
(Figure 9) in the packaging
and install them in each of the two rectangular
brackets
8
in the rear of the game (Figure 10) using
the
1
/
4
-20 X
3
/
4
tamper-proof bolts with washers
and lock washers. Warning: The tube with the
cable inside should be mounted on the players
right. Note: when using the 62 monitor that the
brackets
8
holding the tubes are in the upper
position as shown in Figure 10. When used with a
52 monitor the brackets
8
are placed in the lower
position as indicated by the light patch on the
sample cabinet shown. When installed, the tubing
should appear as in Figures 11 and 12.
The upper part of the tubes should arc over the top
of the monitor in preparation for the marquee
installation. Next, connect the weldment marquee
support
3
on the monitor to the two tubes as shown
in Figure 12 Using two
1
/
4
-20 X
3
/
4
tamper-proof
bolts with washers and lock washers per tube.
Figure 9
7: Tube, Marquee struts
Part#: S254-124-000 (52"/62")
Figure 8A
Figure 11
Figure 12
3: Weldment, marquee support
Part#: S254-045-000 (52")
S255-026-000 (62")
5: Bracket, Glass channel
Part#: S254-142-000 (52"/62")
4: Plexiglass shield
Part#: S254-502-000 (52")
S255-500-000 (62")
Figure 10
The cable should feed
through the slot in the
cabinet
Upper
62"Monitor
Lower
52"Monitor
8: Weldment, Marquee support L/R
Part#: S254-028-00L, S254-028-00R (52"/62")
