㉕ RECHARGEABLE BATTERY BLOCK
• Assembling

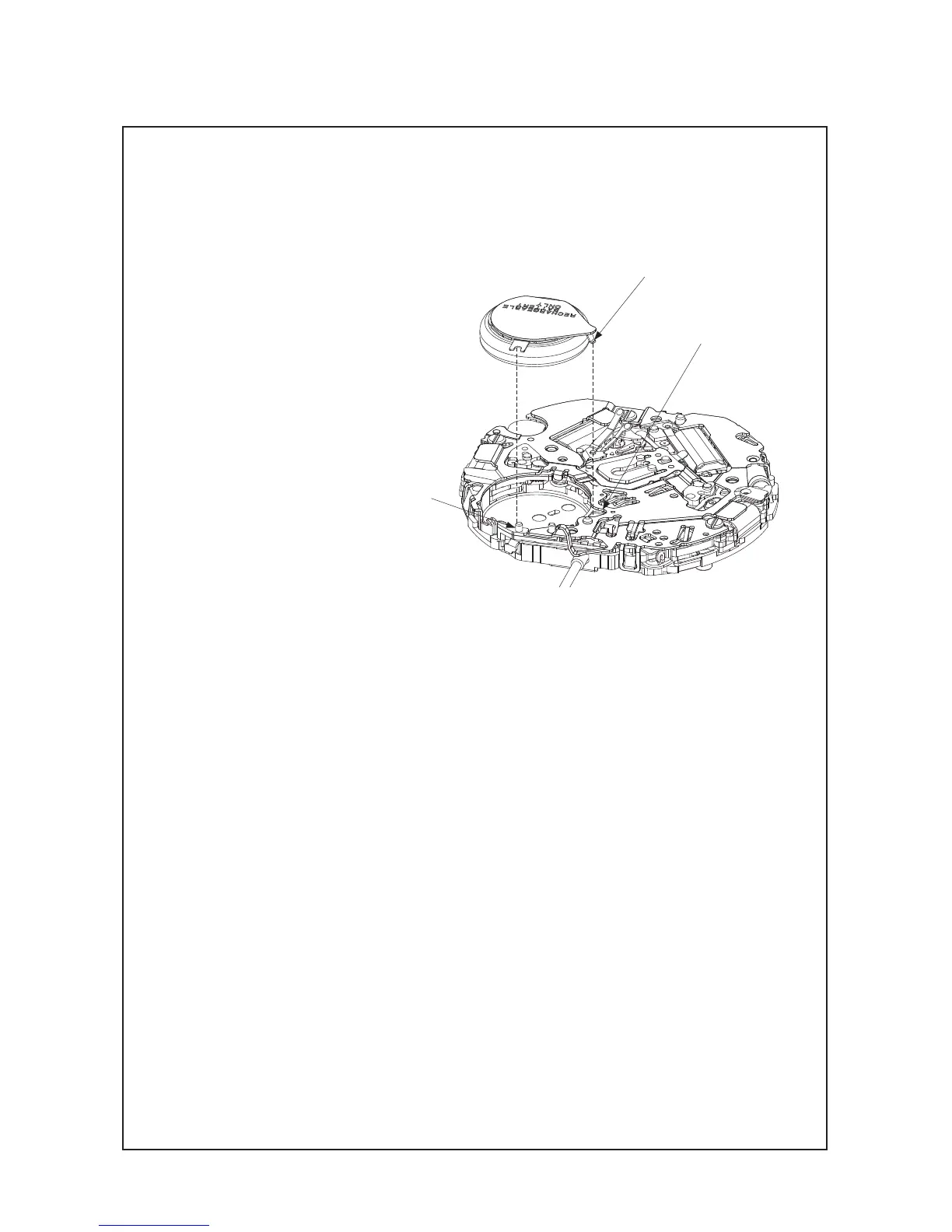

Set the notched portion of the RECHARGEABLE BATTERY BLOCK to the guide post, and check
that the hooking portion of the RECHARGEABLE BATTERY BLOCK touches the (-) output terminal
of the CIRCUIT BLOCK.
HOOKING PORTION
GUIDE POST
(-) INPUT TERMINAL
