7
ENGLISH

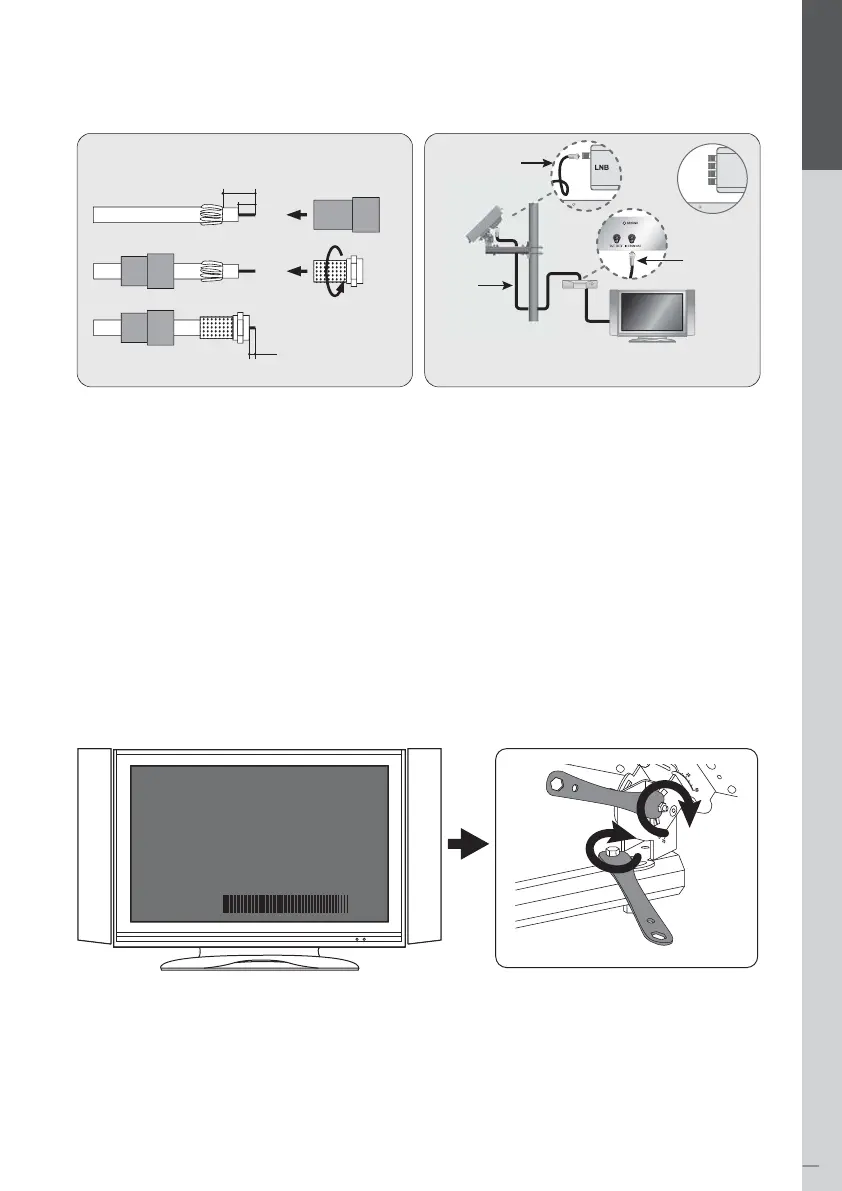

A) How to prepare the cable?
It is important that the coaxial cable does not become damaged or kinked
during the installation procedure.
* The connection required for QUATTRO LNB.
B) How to connect the cable to the antenna and
the set top box?
One side
To Antenna
LV
HV
HH
LH
Other side
To receiver
Cable
Step 5: Fine Tuning and Fix the Bracket
Once ne tuning is completed for signal reception, please tighten bolt and nut.
Once all connected, turn on the TV and the Satellite receiver.
Select the Antenna Pointing Menu on your set top box.
You can check signal level on your TV.
Ensure that to choose “LNB : ON”
You will need someone to stay in front of the TV to tell you when the signal is “good” while you’re outside
trying to adjust the antenna the best way possible.
The signal level and quality is indicated on the TV screen and will uctuate and change colour according to
the adjustment & movement of the antenna while you are pointing & nding (azimuth, elevation angle).
The level indicates the power of the signal and the colour is the signal reception quality from the chosen
satellite.
Q
U
A
T
T
R
O
L
N
B
15mm
CONNECTOR COVER
F CONNECTOR
8mm
3mm
Antenna Pointing Menu
Signal: 0
Satellite : ASTRA 1
Transponder : 23
LNB : ON
Frequency : 12640
