8

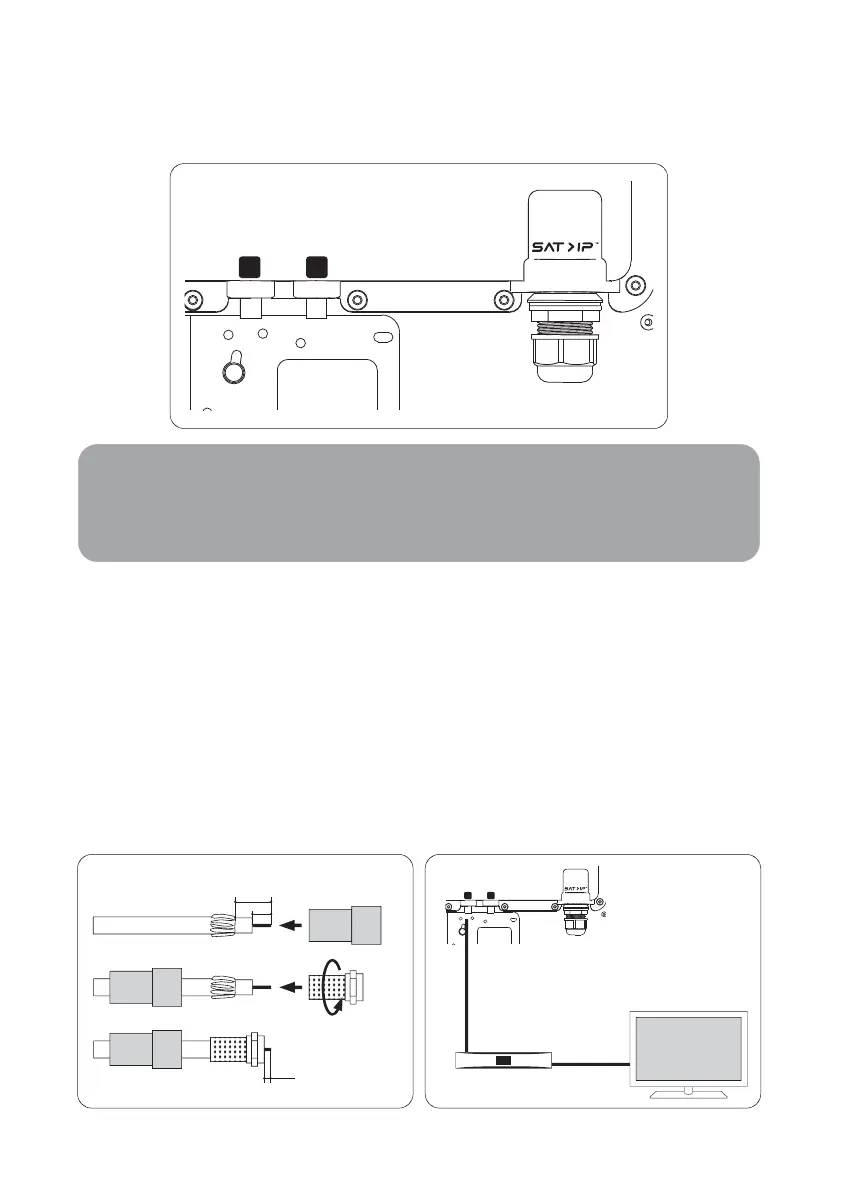

a. How to prepare the cable? b. How to connect the cable to the antenna and
the set top box?
15mm
CONNECTOR COVER
F CONNECTOR
8mm
3mm
Step 4: SELFSAT>IP series Installation and How to Use
Since the SELFSAT>IP series antenna provides two dierent interface: Legacy RF connector and RJ45
LAN connector, the user can select dierent connector upon dierent environment.
1) Connect the SELFSAT>IP series antenna to your traditional DVB-S/S2 STB
Once you have installed the antenna in an open loop space or mounted the way you want it to be, the next
step is to connect them all together.
In order to be able to watch your favorite satellite programs, you need to connect your satellite antenna to a
receiver with a cable. The cable between the antenna and the Satellite receiver should not exceed 30m as it
will decrease the quality of the signal. The use of a long or bad quality cable and/or unisolated jacks can cause
lowering the signal level, it would be preferable to use an RG6 Coaxial cable (HF 17VATC or 19VATC cable), in
order to minimize a signal loss.
Just connect the RF coaxial cable from the Legacy 1 or Legacy 2 from the SELFSAT>IP series antenna to your
DVB-S/S2 STB.
Set-top box
TV
LEGACY
12
LEGACY
12
Note
SELFSAT>IP series antenna includes a protection cap for the legacy outputs. Please put
the protection cap on the legacy outputs when you do not use the ports to prevent water
penetration. Also, when you are using the port, please keep the connector protection cap
and do not lose it.
