Selmo Dynamic - Assembly Procedures; Assembly Without Resistance Elements

Selmo
Comfort technology
division
“Dynamic”
Electronic control for towel heaters
Rev. Beta
-
March 2018
Selmo
Electronic
Via Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel 049.8976761, Fax 049.8976085 - www.selmo.it
EN

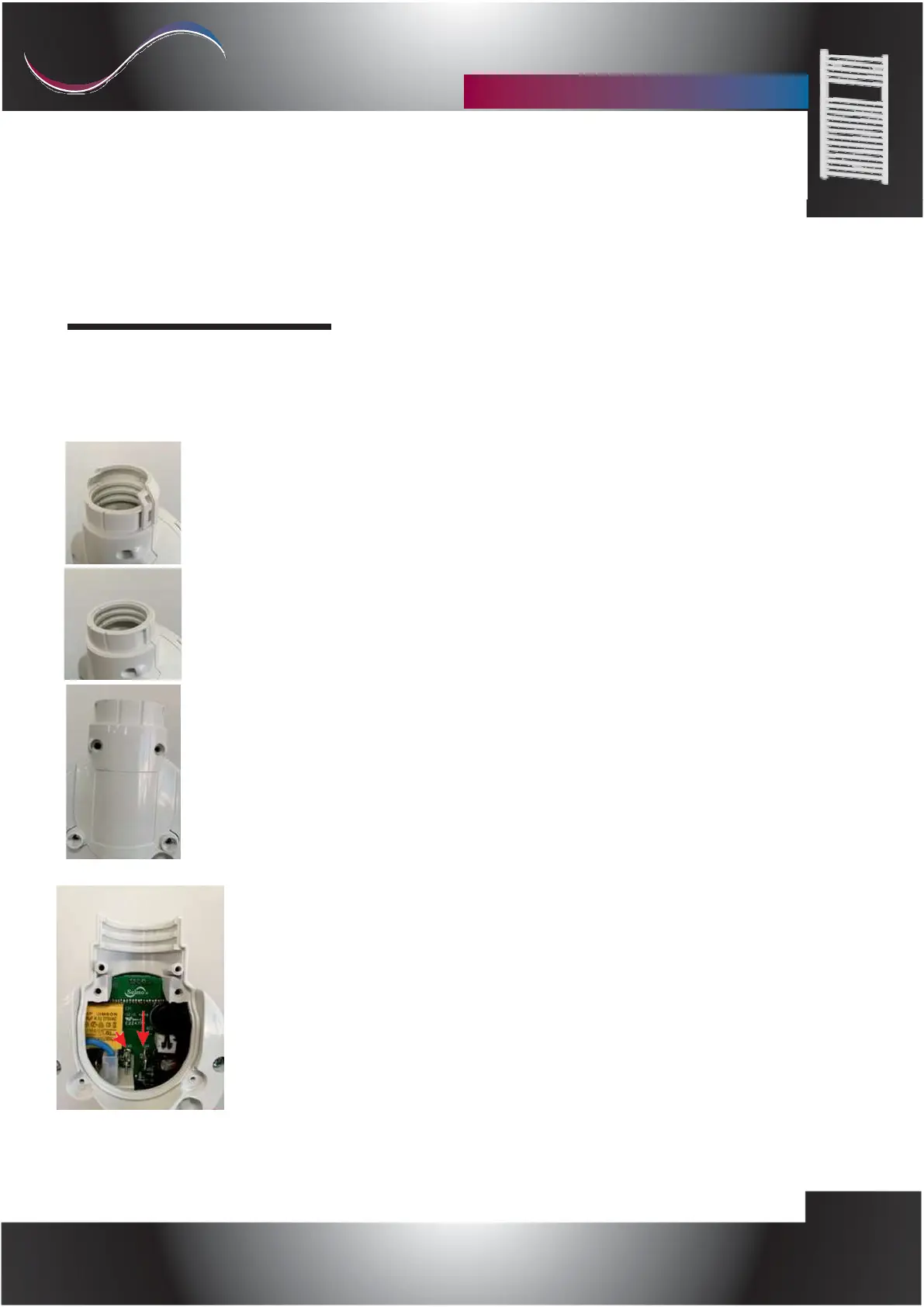

Assembly
(For without resistance elements)
1-
Remove the rear half of the plastic trim cover
2-
Also remove the front half of the ring nut
3-
Remove the 4 screws (A, B, C, D) of the rear cover to
access the Fast-on for the resistance connection
4-
Remove the back cover, the Fast-on connectors for the
resistance connection are indicated by the arrows (1) and
(2).
A
B
C
D
2
1
