Connection to the Fil-Pilote system
(only for versions with "Fil-Pilote")
Example
1.
One with "Fil-Pilote" function (class II) can be controlled remotely by a control unit that
supports the "Fil-Pilote" system. The brown wire is the phase (L), the gray wire is the
neutral (N) and the black wire is used for the reception of the Fil-Pilote signal.
Do not connect the black wire to the ground.
2.
One without "Fil-Pilote" function (class I), can’t be controlled remotely. The brown
wire is the phase (L), the blue wire is the neutral (N) and the yellow / green wire must be
connected to the ground.

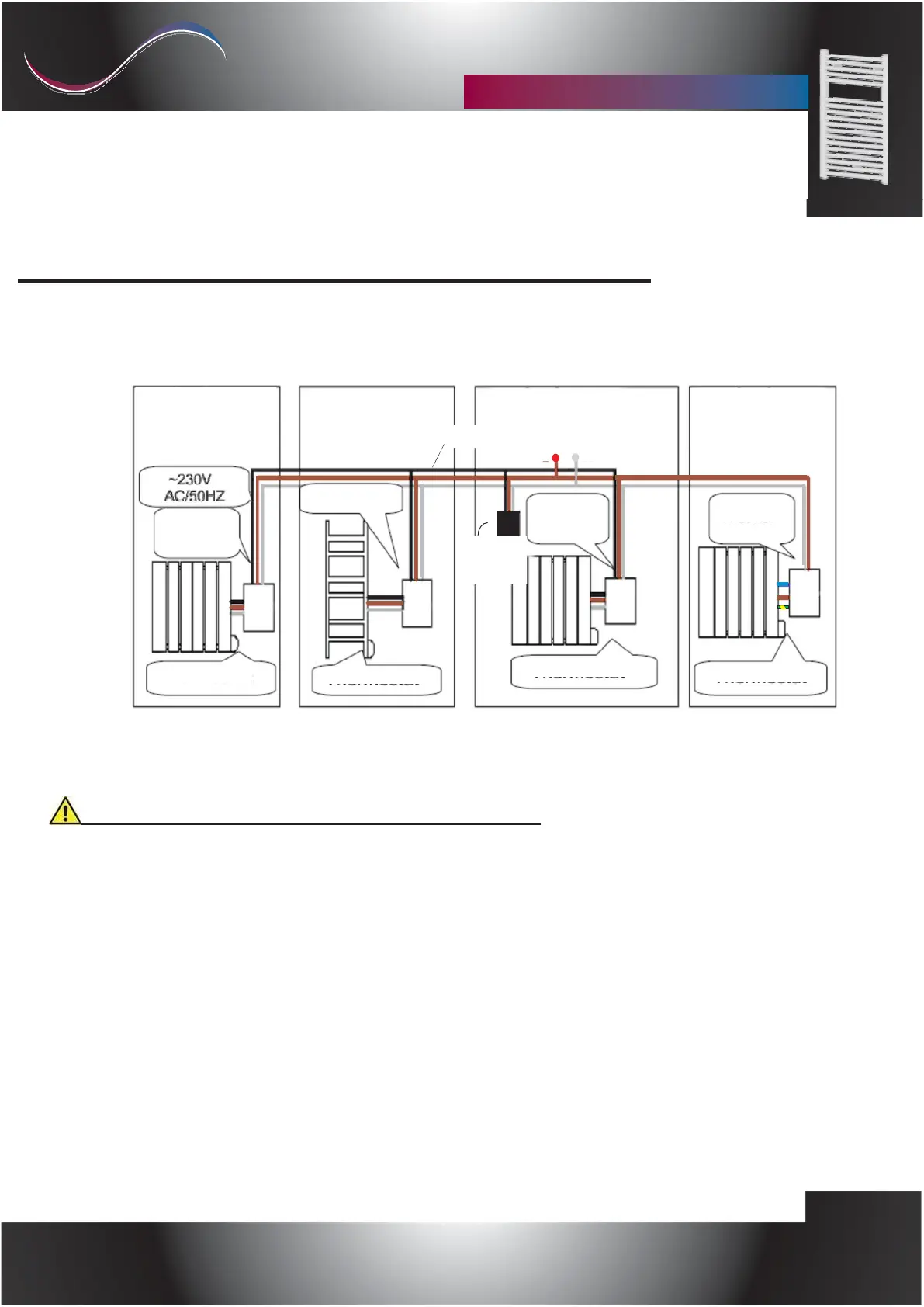

Living room
Thermostat
class II
Bath
Thermostat
class II
"Fil
-
Pilote"
Bedroom1
Thermostat
class II
Bedroom2
Thermostat
class I
P
HASE
N
EUTRAL
Switch
Switch
Switch
Switch
"Fil
-
Pilote"
Station
Thermostat
Thermostat
Thermostat
Thermostat
