11

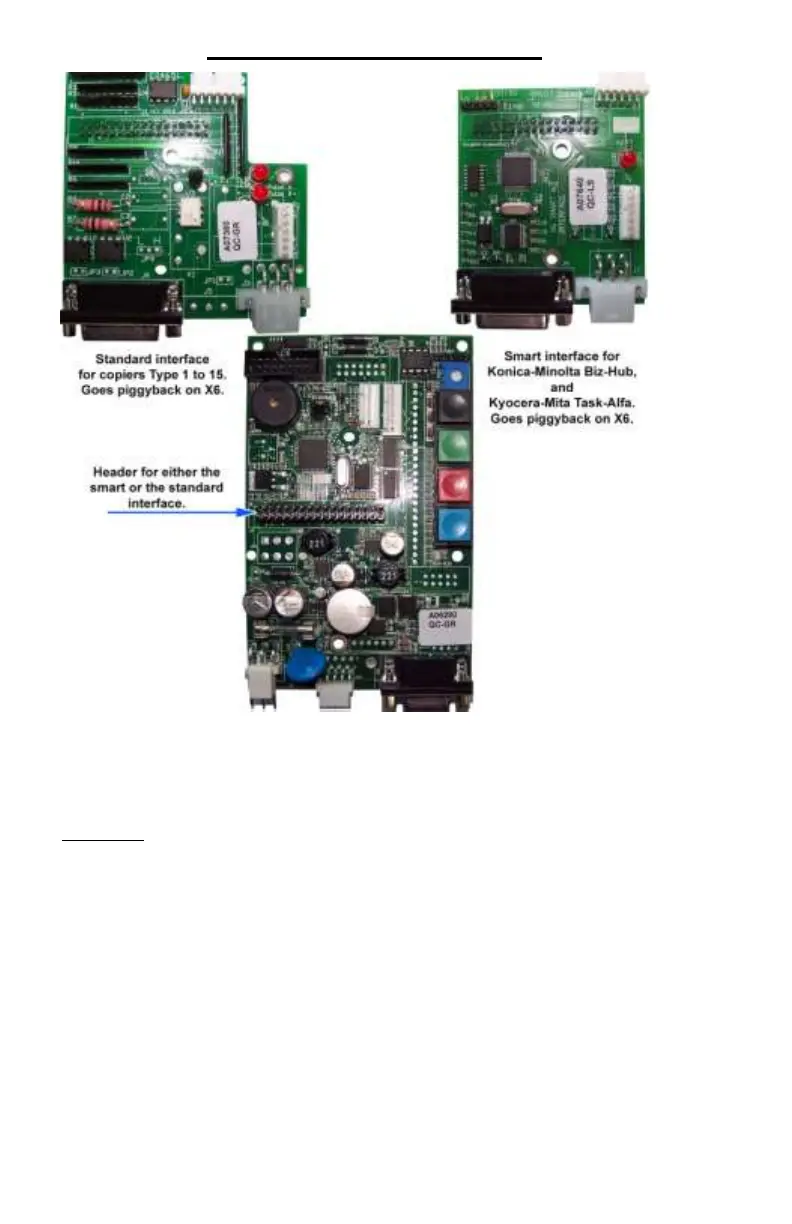

The X6 Circuit and its Interfaces
The 9900X Vend Station uses the X6 circuit platform. The platform requires
an additional interface. The interface goes piggyback on the platform.
The Standard Interface enables you to connect your vend station to any cop-
ier not using a serial port for communication with an external device. It is the
case for probably 95% of the copiers on the market. It communicates with
high and low signals. In the programming of your coin-op, the copier types
available will range from Type 1 to Type 15. (please see page 27)
The Smart Interface (optional) enables you to connect your vend station to a
copier using a serial communication. At the time of printing, only the follow-
ing copiers are using serial communication:
Konica-Minolta Biz-Hub Series, B&W or Colour
Kyocera-Mita Task Alfa
Only those two types of copiers will be visible in the copier types with the
Smart Interface. You cannot select a Type 1 copier with the Smart Interface.
