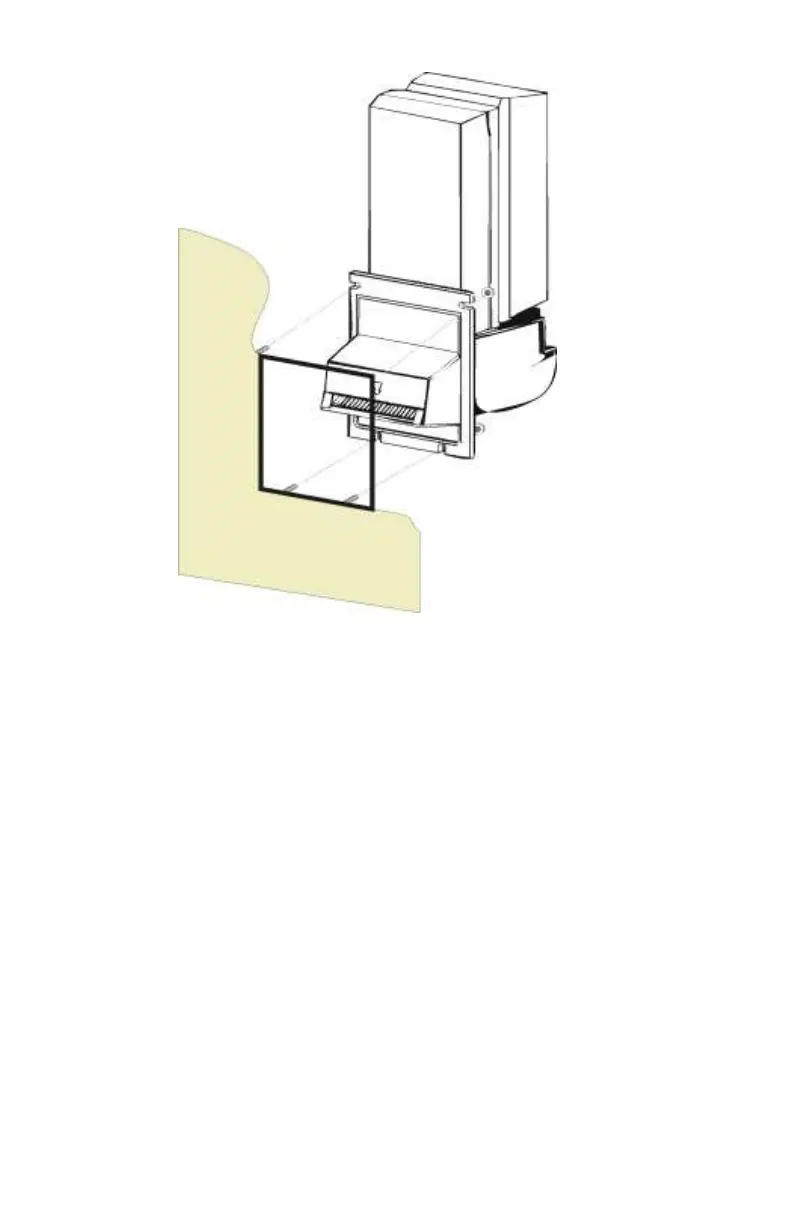

Installing/Removing Bill Acceptor
Description Part #
Kept nut 8-32 (4 pieces) B00520
NAMA Plate (not visible; normally covering hole) S02461
All standard MDB Protocol bill acceptors will normally fit in hole. If you are
installing the bill acceptor as an add-on, do not discard the NAMA plate you
will be removing. Bill acceptor connects to MDB port where coin changer is
already connected. Connect coin changer in Y harness supplied with bill
acceptor. ALWAYS REMOVE POWER BEFORE PLUGGING OR UN-
PLUGGING PERIPHERALS.
