45

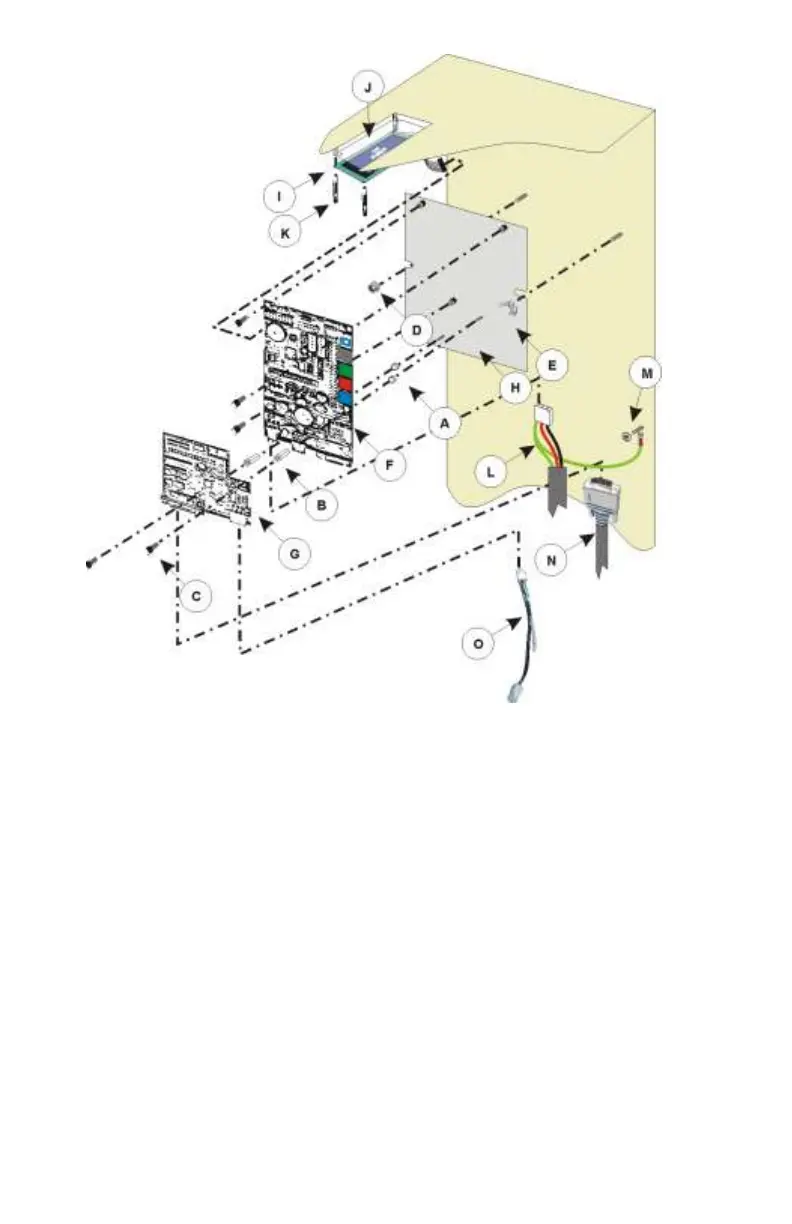

Main Circuits and Display
Position Description Part #
A) Nylon bushing # 8 - ¼” (2 pieces) B01080
B) 6-32 5/8” Hexagonal nylon stand-off (2 pieces) B00150
C) 6-32 ¼” machine screw (5 pieces) B00090
D) Lock nut 8-32 B00530
E) Wing nut 8-32 B01290
F) X6 Main Circuit A06280
G) X6 Expansion board (standard) A06500 or
G) X6 Expansion board (smart) A07640 *
H) Aluminum plate S03080
I) LCD Display 4x20 with flat ribbon A07110
J) Protective transparent Lexan S03046
K) 4-40 ¼ ” machine screw (4 pieces) B00080
L) Power supply harness with ground wire A06620
M) Kept nut for ground B00520
N) Copier harness with DB15 connector n/a
O) MDB harness from coin changer/bill acceptor n/a
* Smart Expansion board is for copiers using serial communication such as Konica-Minolta Biz-
Hub or Kyocera-Mita Task-Alfa.
