SEM 9900X - Locking Device Description; By-pass Cam Lock Description

47

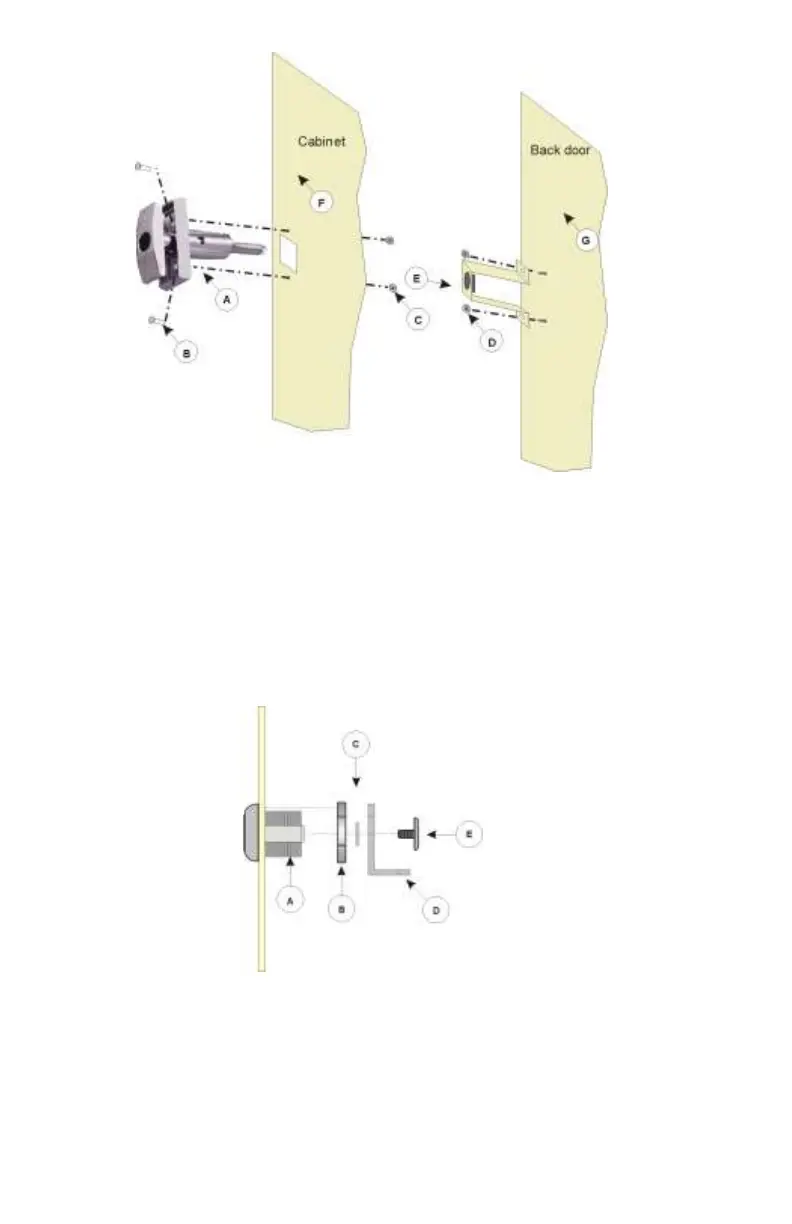

Description locking device
Position Description Part #
A) T-handle assembly w/o plug lock A00150
B) Carriage bolts 10-24 x 1 (2 pieces) B00990
C) Kept nut 10-24 (2 pieces) B00580
D) Kept nut 10-32 B00550
E) 9900 Cage nut assembly (thread ½-13 nc) S02451
F) Main cabinet 9900 S02425
G) Back door 9900 S02435
By-pass Cam Lock
Position Description Part #
A) Lock cylinder * S00590
B) Locking nut * S00590
C) 90-degree turn guide * S00590
D) Actuator 90 degrees angle S01805
E) Locking screw * S00590
* All parts with asterisk are included in the lock #S00590
