Sena HelloDevice LS100 - 2.2.3 Connecting to the Device

13

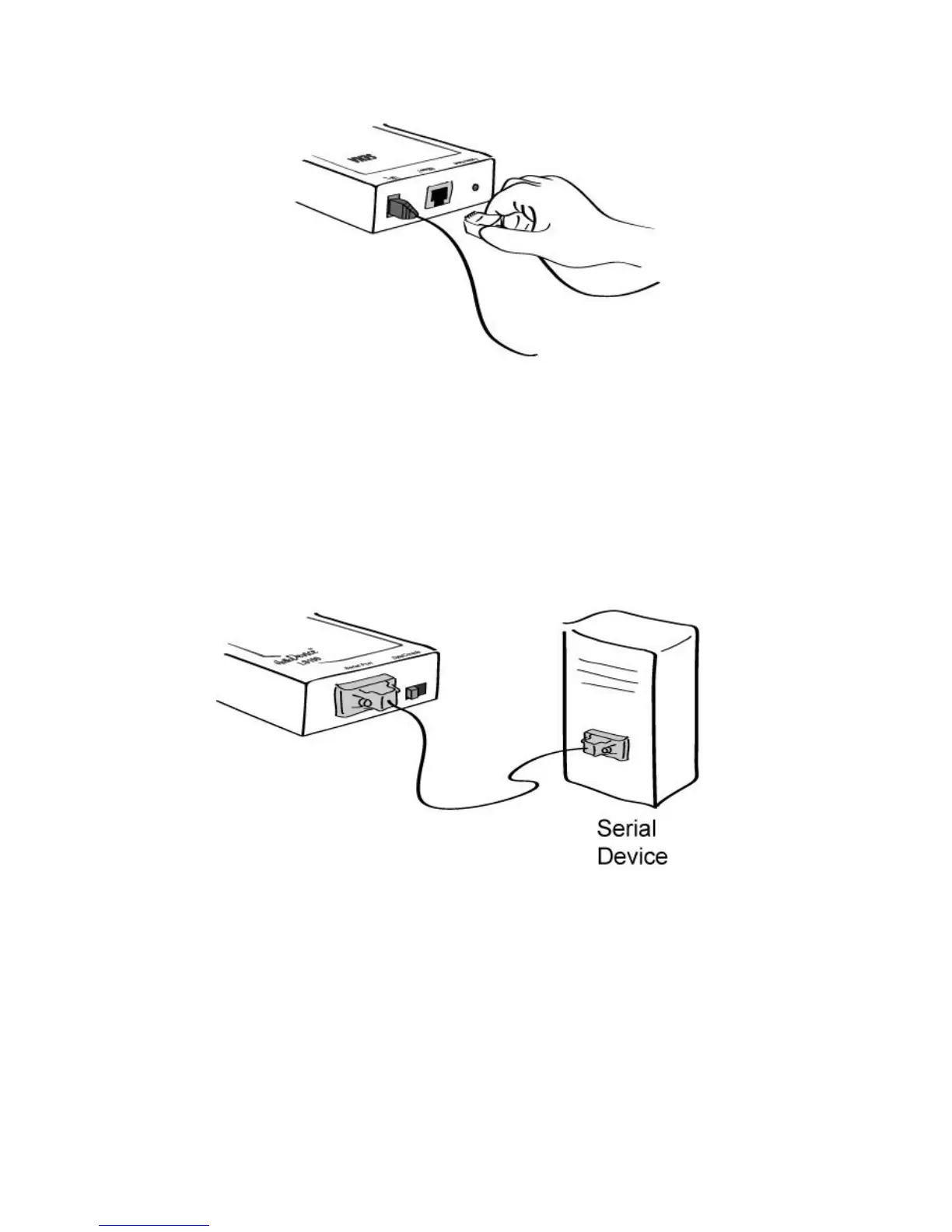

Figure 2-3. Connecting a network cable to the LS100
2.2.3 Connecting to the Device
Connect the serial data cable between the LS100 and the serial device. If necessary, supply the
power to the serial device attached to the LS100.
Figure 2-4. Connecting a serial device to the LS100
