42

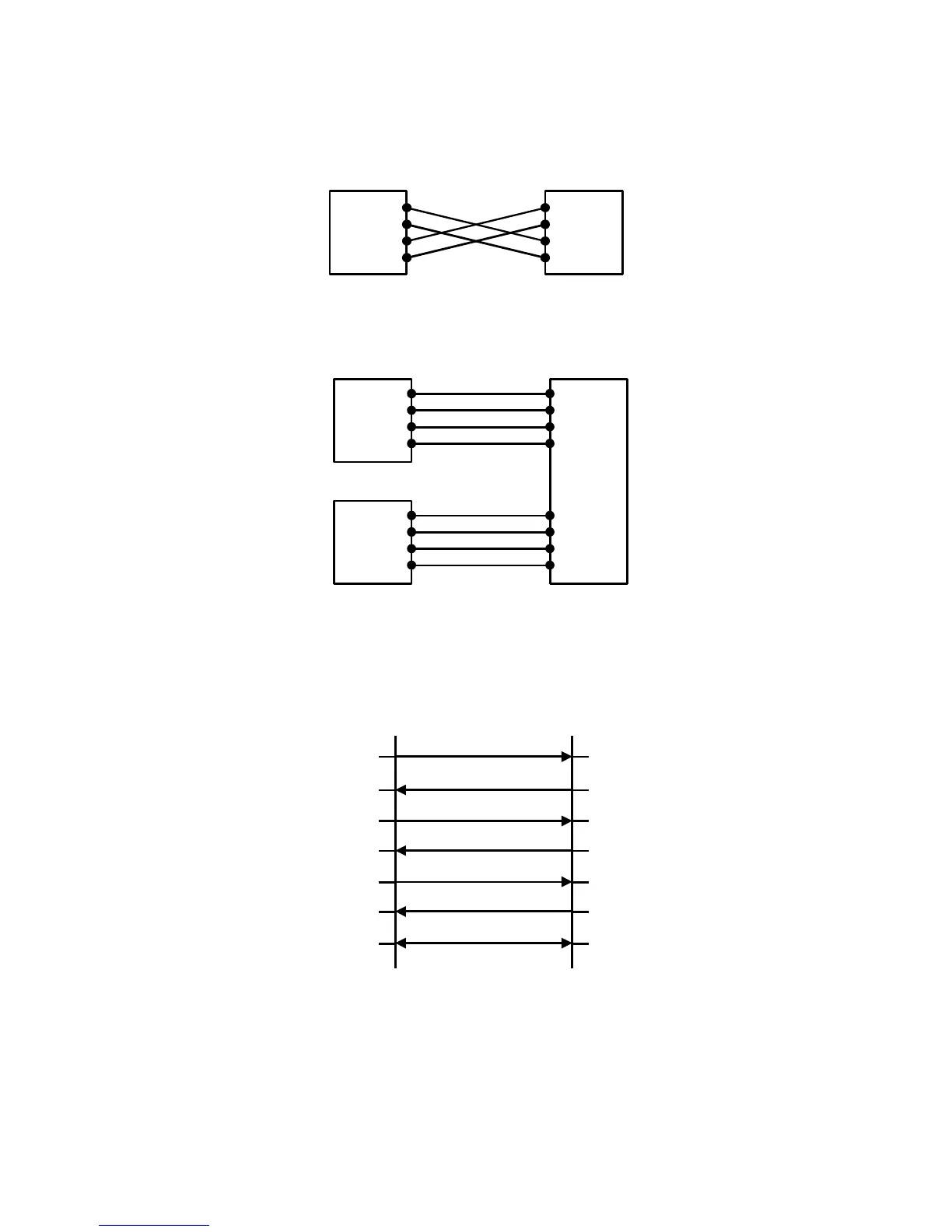

A.3 Ethernet Wiring Diagram
Rx+(1)
Rx-(2)
Tx+(3)
Tx-(6)
HelloDevice
Remote Host
Rx+(1)
Rx-(2)
Tx+(3)
Tx-(6)
Figure A-3 Ethernet direct connection using crossover ethernet cable
Rx+(1)
Rx-(2)
Tx+(3)
Tx-(6)
HelloDevice
Hub
Rx+(1)
Rx-(2)
Tx+(3)
Tx-(6)
Remote Host
Rx+(1)
Rx-(2)
Tx+(3)
Tx-(6)
Rx+(1)
Rx-(2)
Tx+(3)
Tx-(6)
Figure A-4 Ethernet connection using straight through ethernet cable
A.4 Serial Wiring Diagram
Tx(3)
Rx(2)
RTS(7)
CTS(8)
DTR(4)
DSR(6)
GND(5)
Rx
Tx
CTS
RTS
DSR
DTR
GND
HelloDevice Serial Device
RS232
Figure A-5 RS232 wiring diagram
