- 4 _EN- SL320005700 Ed.00 - 04-2011

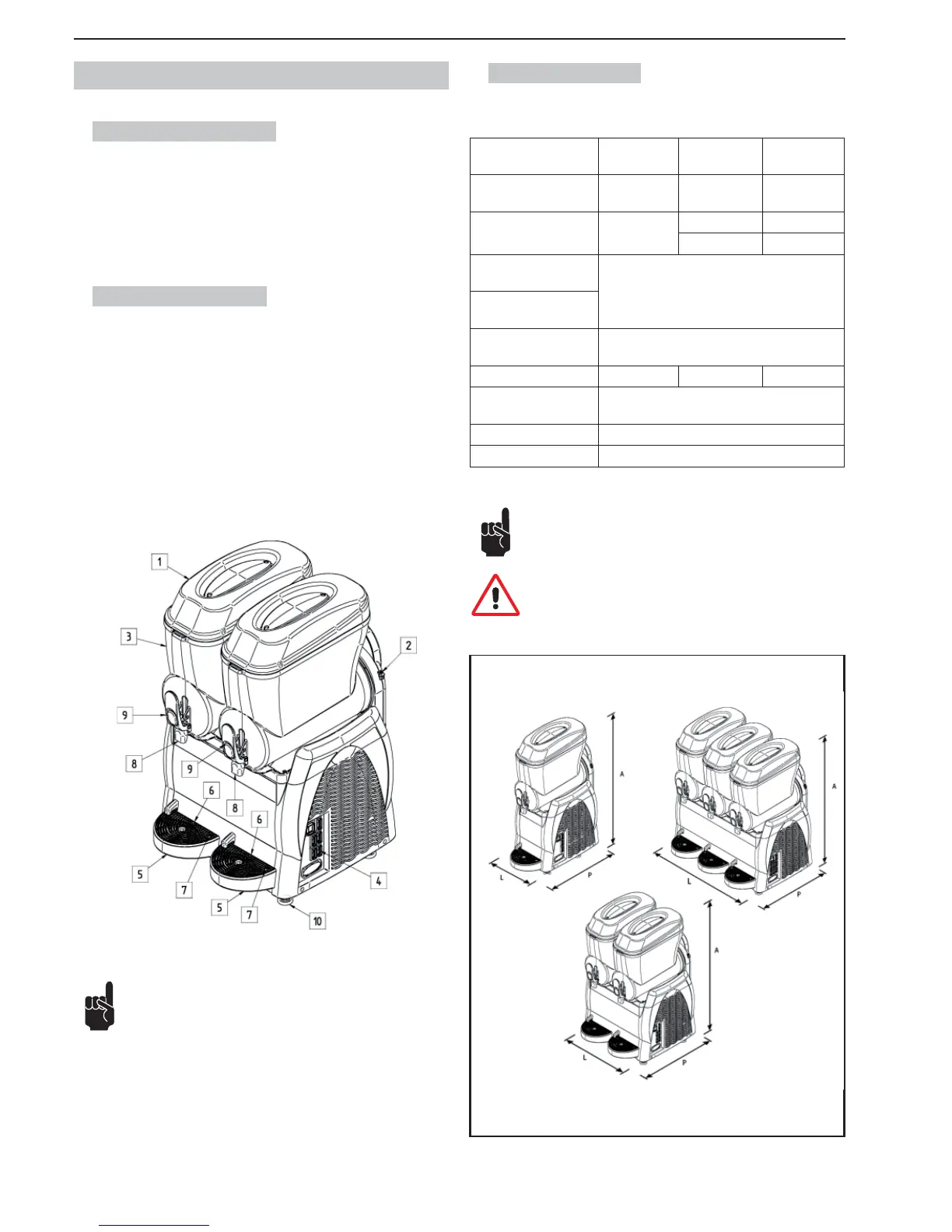

2. MACHINE DESCRIPTION
2.1. Use of the machine
The professional machine you are using is suitable for making slush drinks
and cold beverages. If used with dairy-based products and/or when envisaged
by law in according to the type of product used, it must be equipped with the
optional extra of a “temperature gauge” for the product in the bowl. It is also
obligatory to comply with the current regulations and standards concerning the
products used.
2.2. Main components
The main components making up the machine are:
1 Bowl lid
2 Thickness regulator
3 Bowl
4 Control panel
5 Drip tray
6 Grid
7 Float (overfl ow indicator)
8 Product dispenser
9 Product dispensing lever
10 Feet
2.3. Technical Data
The technical data and features are listed below
Model
Granitore 1
Granitore 1 FF
Granitore 2
Granitore 2 FF
Granitore 3
Granitore 3 FF
Dimensions
L x P x H (mm).
27 x 52 x 81 47 x 52 x 81 67 x 52 x 81
Maximum Electrical
Input (W)
29
47 68
52 70
Potencia máxima con-
sumida (W)
See rating plate on side of machine
Operating voltage
(V).
Operating temperature. Min. 20°C
Max. 32°C
Number of bowls. 1 2 3
Capacity of each
bowl (l.)
12
Sound pressure level << 70 dB
A
Class. N
Fig.2
To make the instructions easier to read, the following abbrevia-
tions are used herein:
Granitore 1, identifi es a Granita machine with one (1) bowl;
Granitore 2, identifi es a Granita machine with two (2) bowls;
Granitore 3, identifi es a Granita machine with three (3) bowls;
Granitore 1 FF, identifi es a Granita machine with one (1) bowl and Fast Freeze
refrigeration system;
Granitore 2 FF, identifi es a Granita machine with two (2) bowls and Fast Freeze
refrigeration system;
Granitore 3 FF, identifi es a Granita machine with three (3) bowls and Fast
Freeze refrigeration system.
Note: The manufacturer reserves the right to make changes to
the machine without notice.
Important! Any changes and/or additions of accessories must
be explicitly approved and implemented by the Manufacturer.
Fig.1
