- 16 _EN- SL320005700 Ed.00 - 04-2011

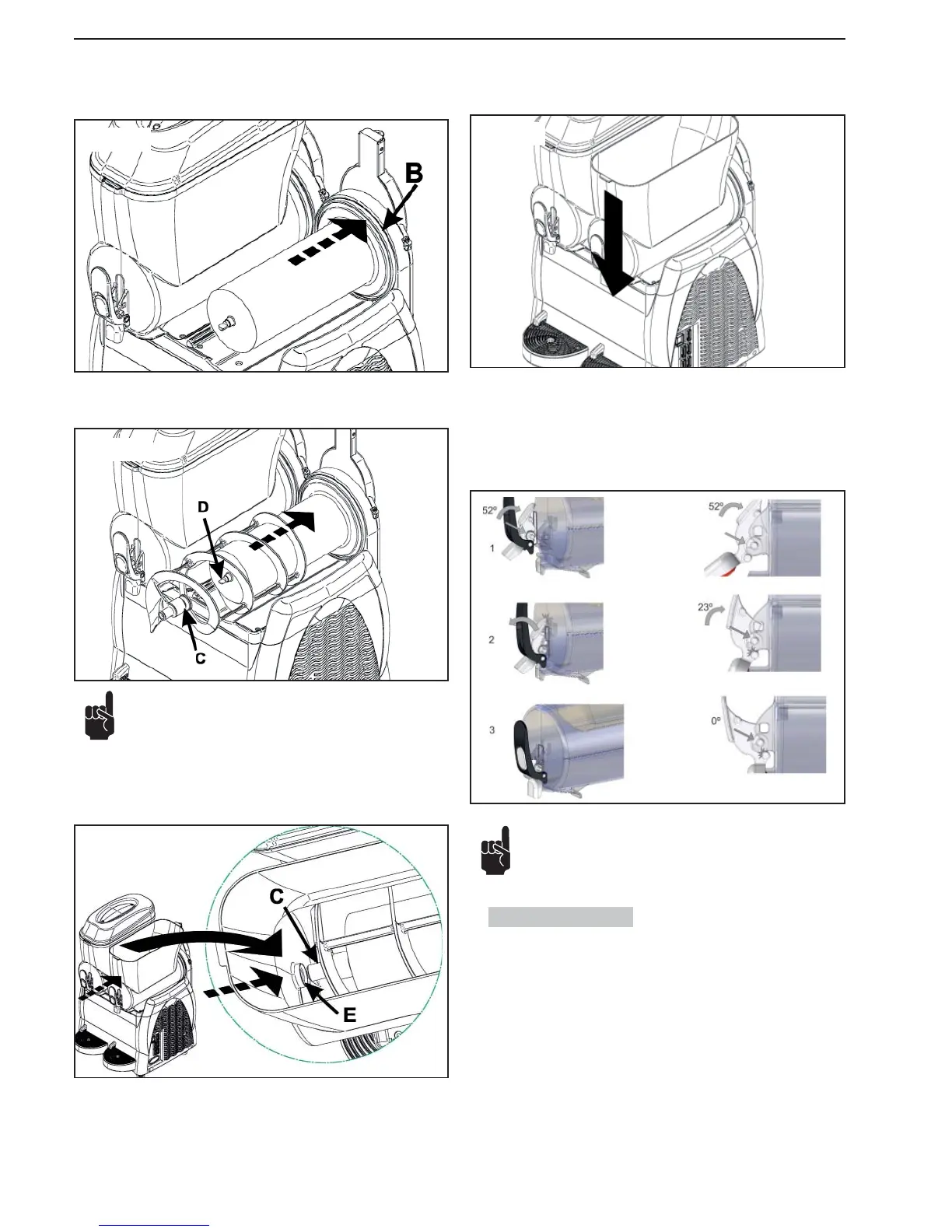

Apply seal (B), lubricating the entire surface indicated by the arrows with Vase-
line.
Introduce the auger, engaging head (C) with shaft (D).
Note: rotate the auger to engage it.
Set the bowl back in place; slightly raise head (C) of the auger so that it meets
the seat provided (E) in the bowl.
Follow these instructions to refi t the tap:
1 using the vaseline provided, adequately lubricate the joint
2 lean the pins on its seat and push the “push” lever dispenser until introduce
the tap.
Press the bowl downward until it engages the surface as shown in the fi gure.
Note: Correctly install the components as shown in the fi gure.
The non-lubrication of the cap may cause product leakage from
the tap.
7.6. Rinsing cycle
Before starting up the machine, you must carry out the rinsing cycle.
Proceed as follows:
1 fi ll the tank with clean water
2 let the machine on for 5 minutes in the “agitation” mode only
3 turn off the machine and empty the tank by opening the tap
Fig.36
Fig.37
Fig.38
Fig.39
Fig.40
