SL320005700 Ed.00 - 04-2011 - 27 _EN-

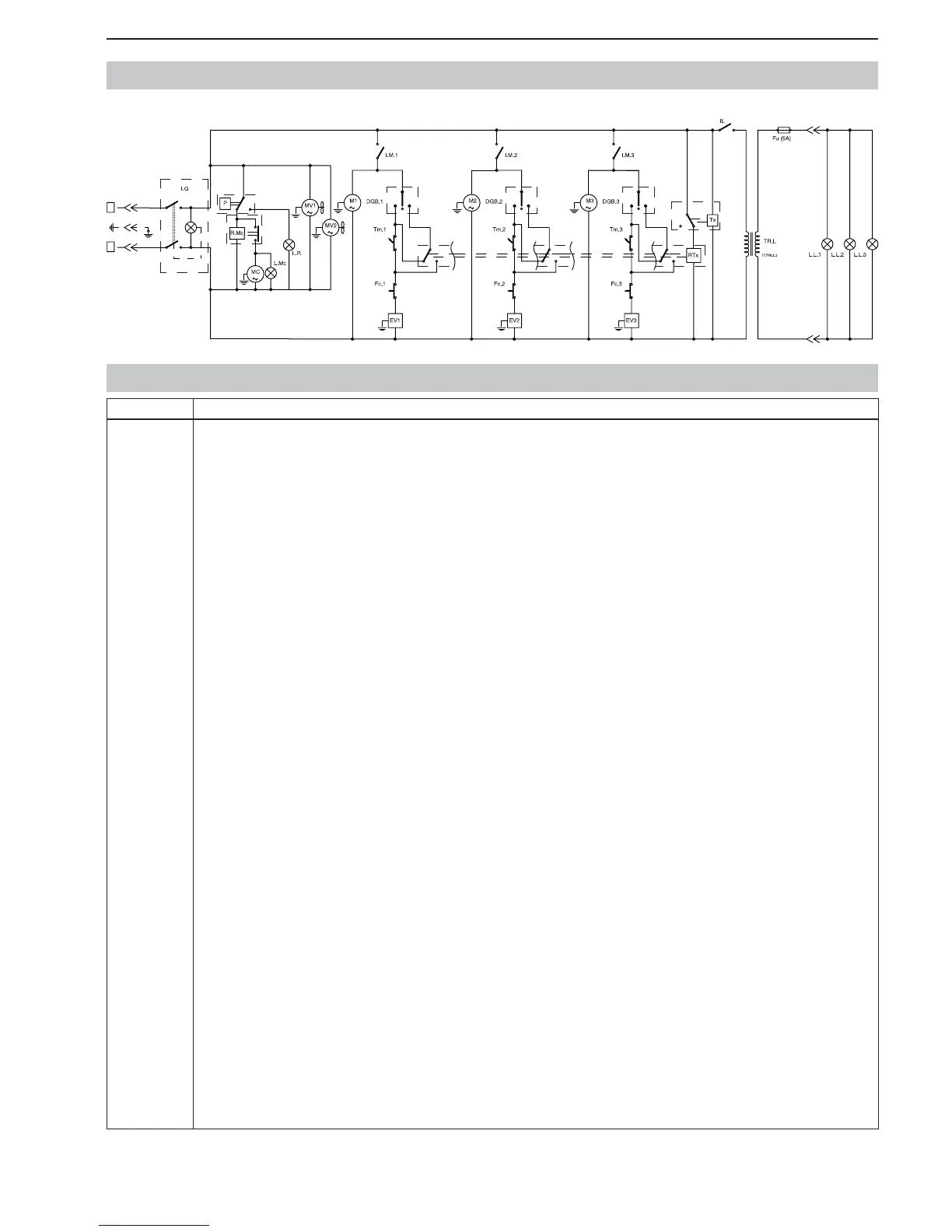

BASIC WIRING DIAGRAMS (GRANITORE 3FF) / 115V
I
0
III IIII
I
I
I
0
0
I
0
I
I
0
F
N
Item Description
D.G.B
DGB.1
DGB.2
DGB.3
EV1
EV2
EV3
Fc
Fc.Tx
Fc1
Fc2
Fc3
Fu
FuA
I.G
I.L
I.M
I.M1
I.M2
I.M3
L.L.
L.L.1
L.L.2
L.L.3
L.MC
L.P.
M
M1
M2
M3
MC
MTx
MV
MV1
MV2
N.T.C
N.T.C 1
N.T.C 2
N.T.C 3
P
R.Mc
RTx
TE
Tm
Tm1
Tm2
Tm3
TR
TR.L
Tx
SLUSH/DRINK SWITH
TANK 1 SLUSH/DRINK SWITH
TANK 2 SLUSH/DRINK SWITH
TANK 3 SLUSH/DRINK SWITH
TANK 1 SOLENOID VALVE
TANK 2 SOLENOID VALVE
TANK 3 SOLENOID VALVE
LIMIT SWITCH ADJUSTMENT
TIMER LIMIT SWITCH
TANK 1 LIMIT SWITCH ADJUSTMENT
TANK 2 LIMIT SWITCH ADJUSTMENT
TANK 3 LIMIT SWITCH ADJUSTMENT
FUSE
AUXILIARY FUSE
MAIN SWITCH
LIGHTED COVER SELECTOR
IMIXING MOTOR SWITCH
TANK 1 MIXING MOTOR SWITCH
TANK 2 MIXING MOTOR SWITCH
TANK 3 MIXING MOTOR SWITCH
LIGHTED COVER LAMP
TANK 1 LIGHTED COVER LAMP
TANK 2 LIGHTED COVER LAMP
TANK 3 LIGHTED COVER LAMP
COMPRESSOR INDICATOR LIGHT
PRESSURE GAUGE LAMP
MIXING MOTOR
TANK 1 MIXING MOTOR
TANK 2 MIXING MOTOR
TANK 3 MIXING MOTOR
COMPRESSOR MOTOR
TIMER MOTOR
FAN MOTOR
FAN MOTOR 1
FAN MOTOR 2
TANK TEMPERATURE PROBE
TANK TEMPERATURE PROBE 1
TANK TEMPERATURE PROBE 2
TANK TEMPERATURE PROBE 3
PRESSURE GAUGE
COMPRESSOR RELAY
TIMER RELAY
ELECTRONIC THERMOSTAT
TANK THERMOSTAT
TANK 1 THERMOSTAT
TANK 2 THERMOSTAT
TANK 3 THERMOSTAT
TRANSFORMER
TRANSFORMER
TIMER
LEGEND
