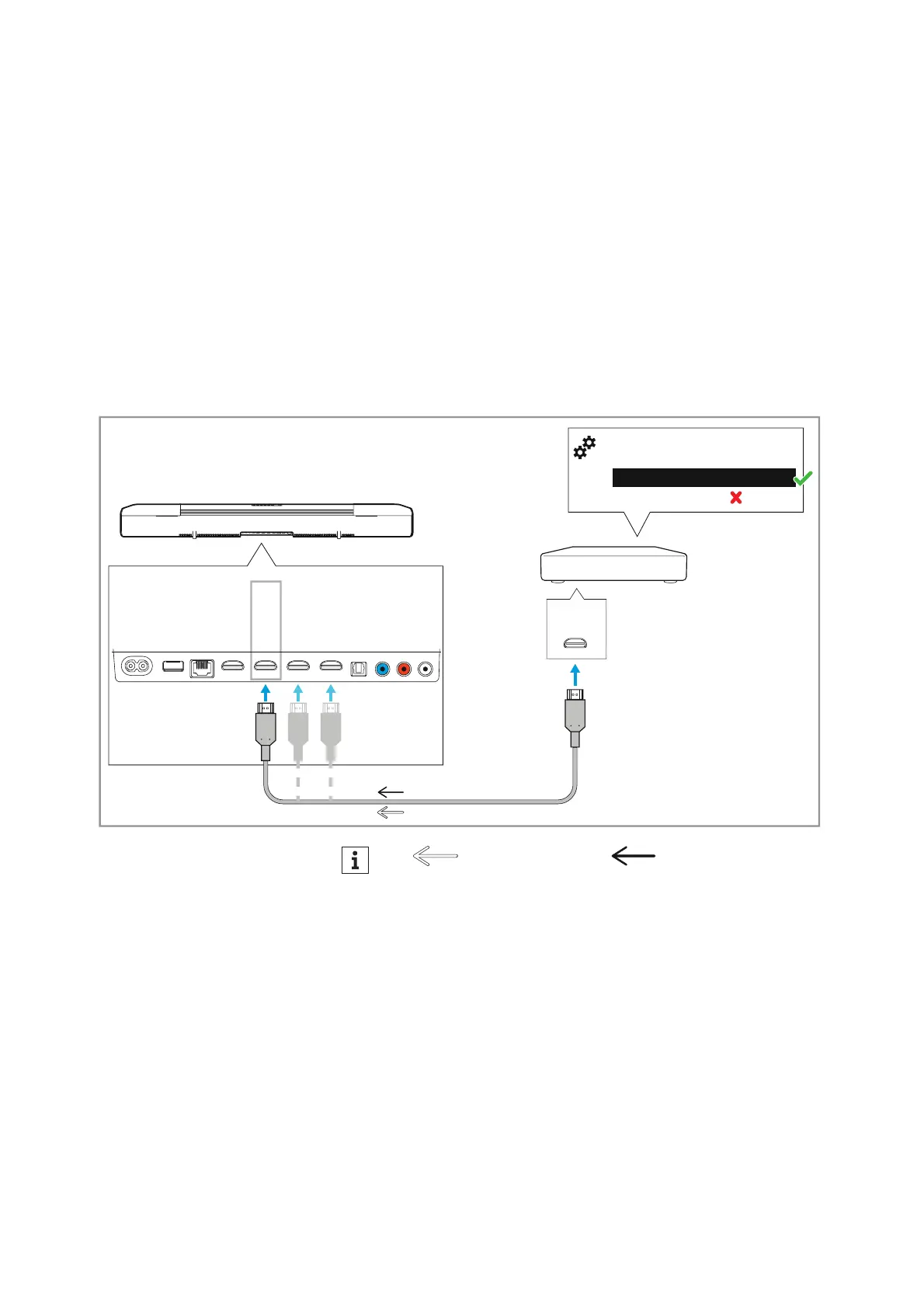

Connecting an audio/video device
Digital connection
• Required cable: HDMI
To connect the Soundbar to an audio source (e.g. Blu-ray player, DVD
player):
▷ Connect one connector of an HDMI cable (to be ordered sepa-
rately) to one of the three HDMI sockets (HDMI 1 IN, HDMI 2 IN,
HDMI 3 IN
) on the Soundbar.
▷ Connect the other connector of the cable to the HDMI OUT socket
of your audio source.
▷ Observe the settings of your devices, > 22.
AUX IN
SW PRE
OUT
OPT IN
HDMI 3 IN
HDMI 2 IN
HDMI 1 IN
HDMI TV
(eARC) OUT
ETHERNET
USB
POWER
HDMI
OUT
Blu-ray player,
DVD player,
cable or satellite
receiver
Auto/Bypass/Pass-Through
Downmix/Stereo
TV/Player sound menu
*
:
HDMI Audio OUT/Optical OUT
*
*
Video signal Audio signal
*
*
