Connecting devices to the Soundbar
26 | AMBEO Soundbar | Max
Analog connection
• Required cable: stereo RCA cable
To connect the Soundbar to a TV or an audio source (e.g. CD player):

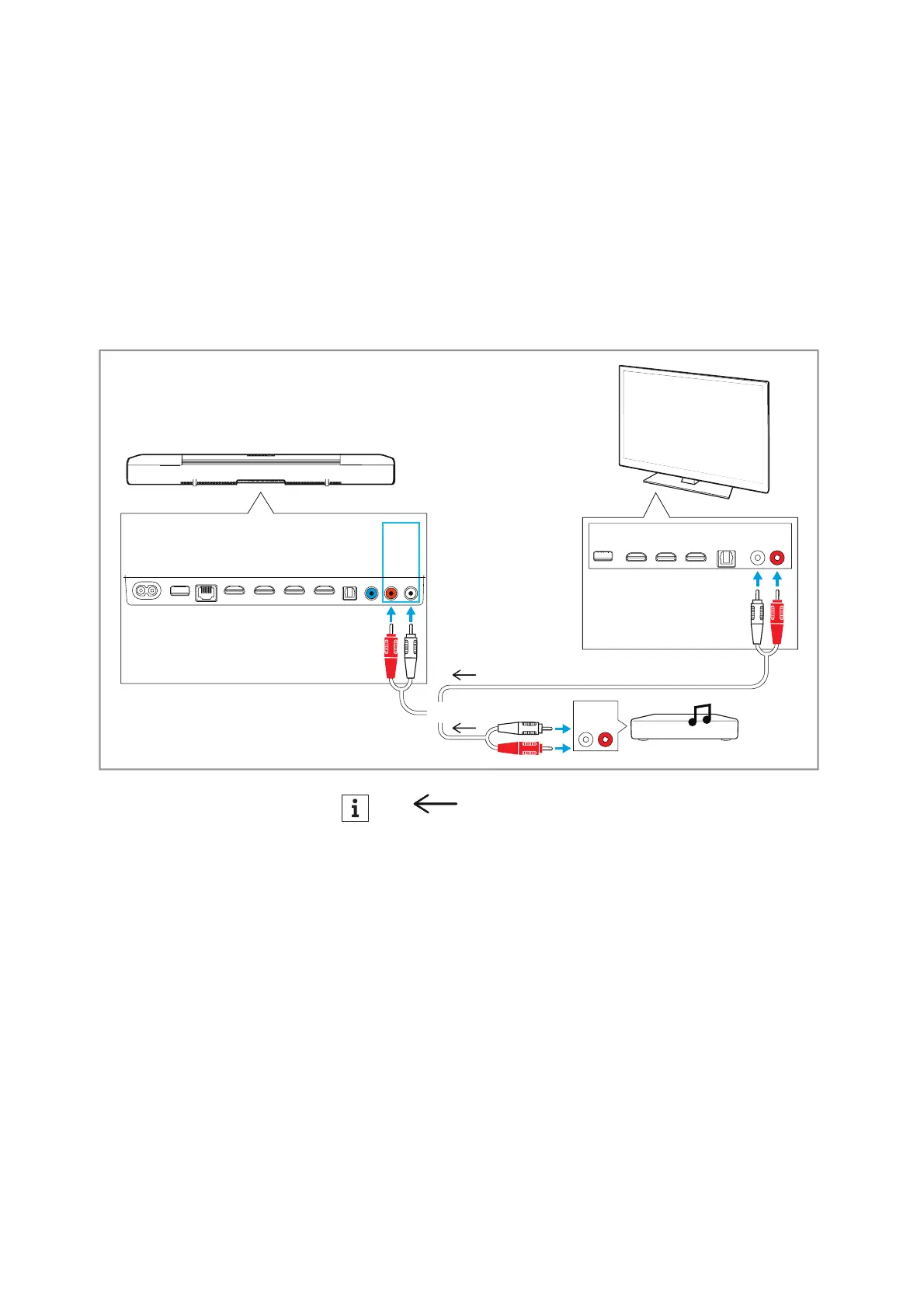

▷ Connect the red connector of an RCA cable (to be ordered sepa-
rately) to the red AUX IN socket and the white connector of the
same cable end to the white
AUX IN socket on the Soundbar.
▷ Connect the other red connector of the cable to the red socket
and the white connector of the same cable end to the white
socket of the TV or audio source.
