EW-DX EM 2 rack receiver
82
EW-DX EM 2 rack receiver

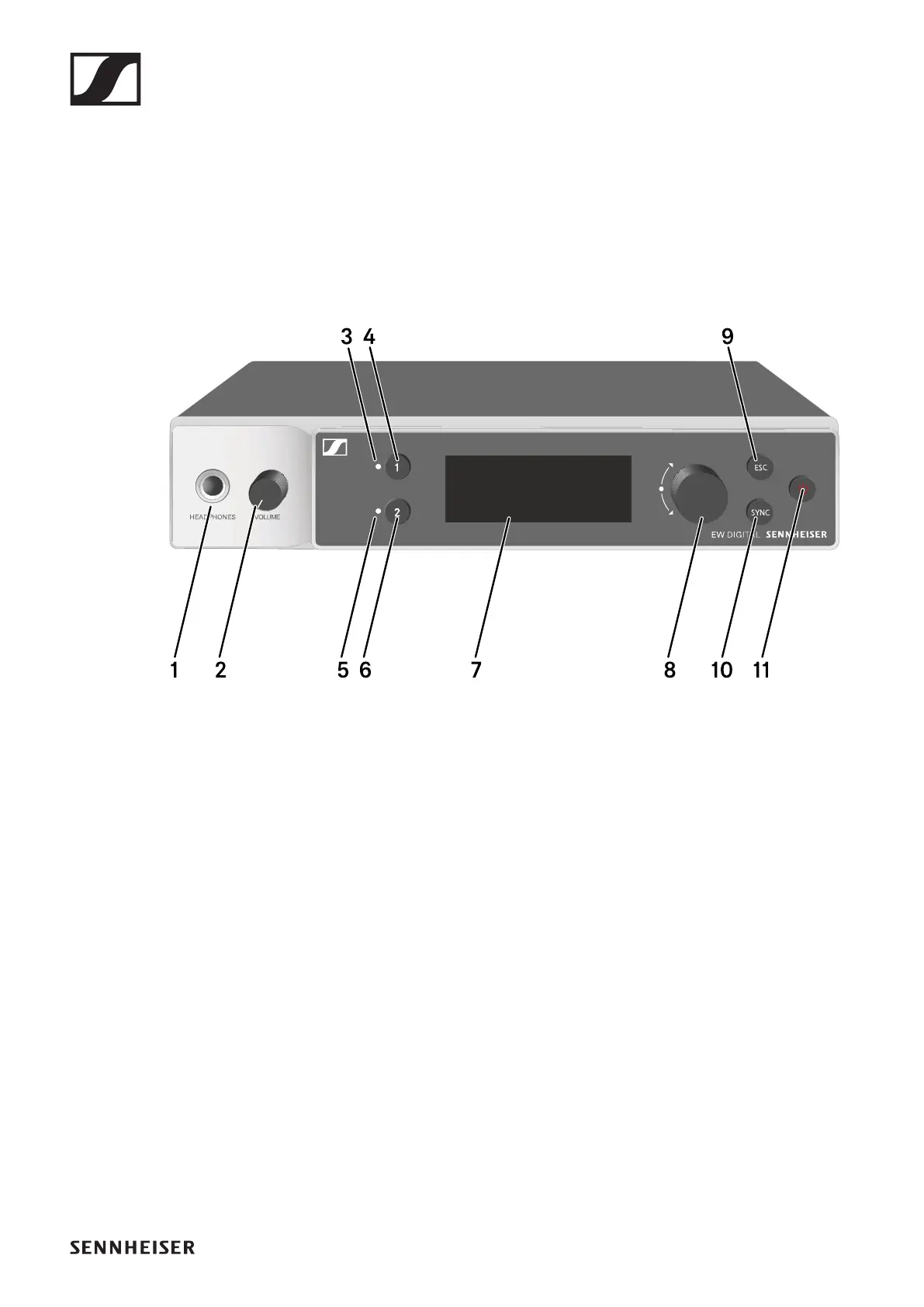

Connectors and controls
Front
1 Headphone socket
• See „Using the headphone output“
2 Volume control for the headphone socket
• See „Using the headphone output“
3 CH 1 LED to indicate the status of channel 1
• See „Meaning of the LEDs“
4 CH 1 button for selecting channel 1
• See „Displays on the receiver’s display panel“
• See „Buttons for navigating the menu“
5 CH 2 LED to indicate the status of channel 1
• See „Meaning of the LEDs“
6 CH 2 button for selecting channel 1
• See „Displays on the receiver’s display panel“
• See „Buttons for navigating the menu“
7 Display for status information and operating menu
• See „Displays on the receiver’s display panel“
