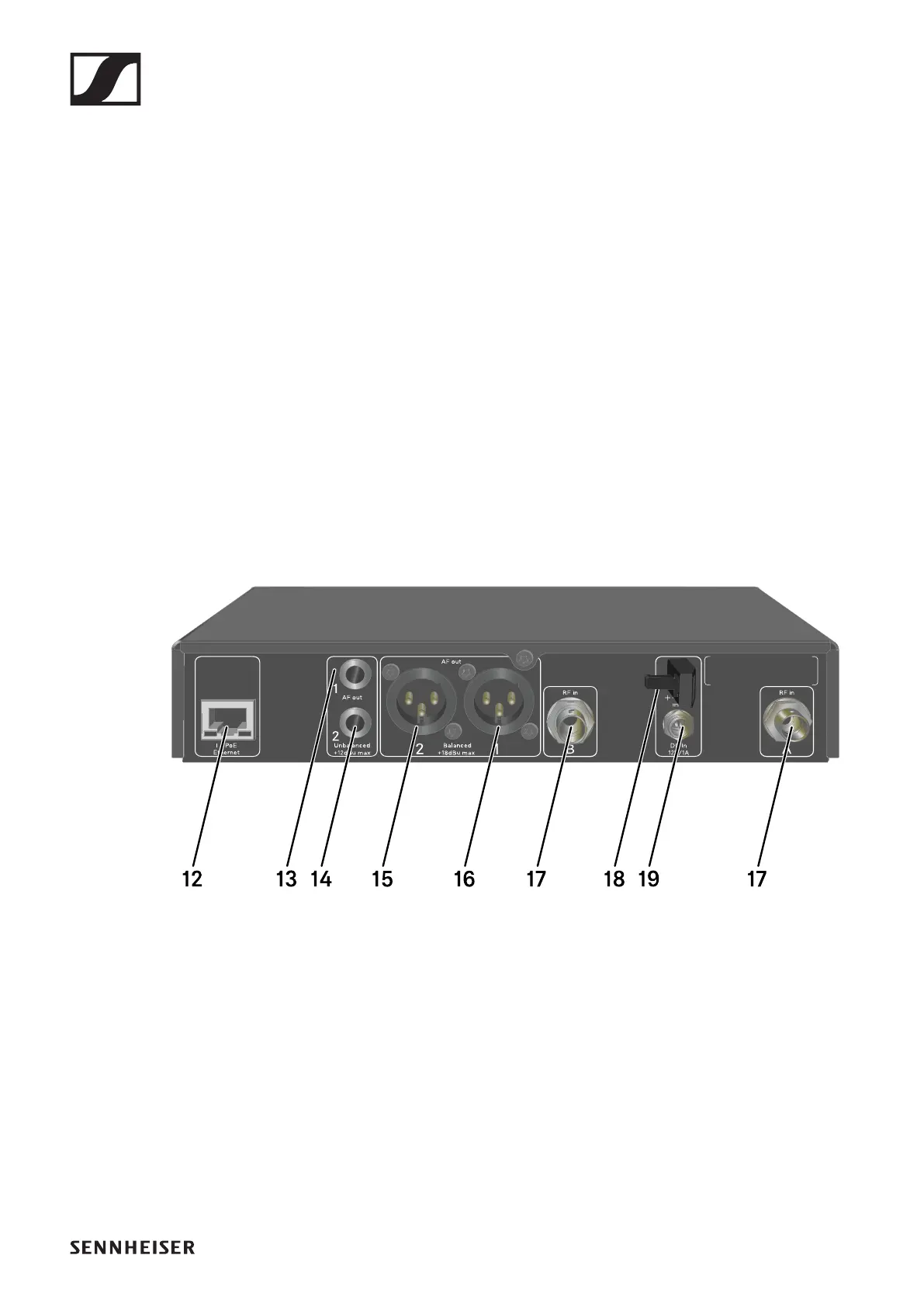

EW-DX EM 2 rack receiver
83
8 Jog dial (UP/DOWN/SET) for navigating the operating
menu
• See „Buttons for navigating the menu“
9 ESC button for canceling an action in the menu
• See „Buttons for navigating the menu“
10 SYNC button for synchronizing the transmitter and receiver
• See „Establishing a radio link | Synchronizing the receiver
and transmitter“
11 ON/OFF button for switching the device on and off
• See „Switching the receiver on and off“
Back
12 PoE/Ethernet RJ-45 socket for controlling the device over
the network and for Power over Ethernet power supply
• See „Connecting receivers in a network“
• See „Connecting/disconnecting the receiver to/from the
power supply system“
13 6.3 mm jack socket for AF out Unbalanced audio output for
channel 1
• See „Outputting audio signals“
14 6.3 mm jack socket for AF out Unbalanced audio output for
channel 2
• See „Outputting audio signals“
