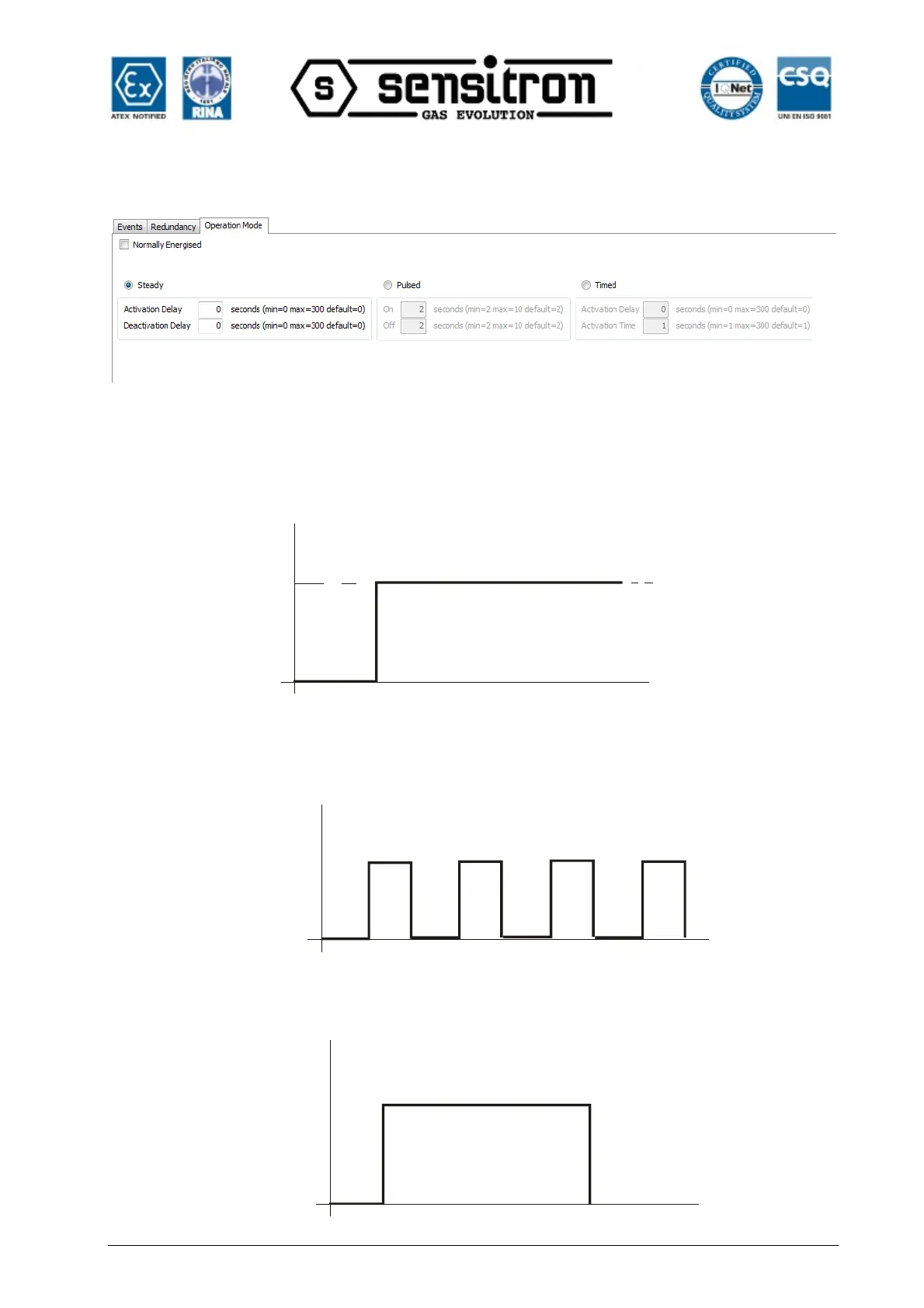

Outputs “Operation Mode”
There are three options for the output Operation Mode
Fig. 4.5.6 q) Output operation mode
Steady follows the course of the alarm; alarm activated, output activated
after a possible activation delay; alarm restored, output low after a
possible de-activation delay.
t
Off
On
activated until the
channel restore +
the Deactivation Delay
Output status
Activation
Delay
0
Output operation mode Steady
Pulsed flashing mode with the ON and OFF times adjustable
Off
On
Output status
Output operation mode Pulsed
T1
T1
T2 T2
Timed single pulse with an adjustable delay activation time and an
adjustable duration time
t
Off
On
Output status
0
Output operation mode Timed
T1
T2
