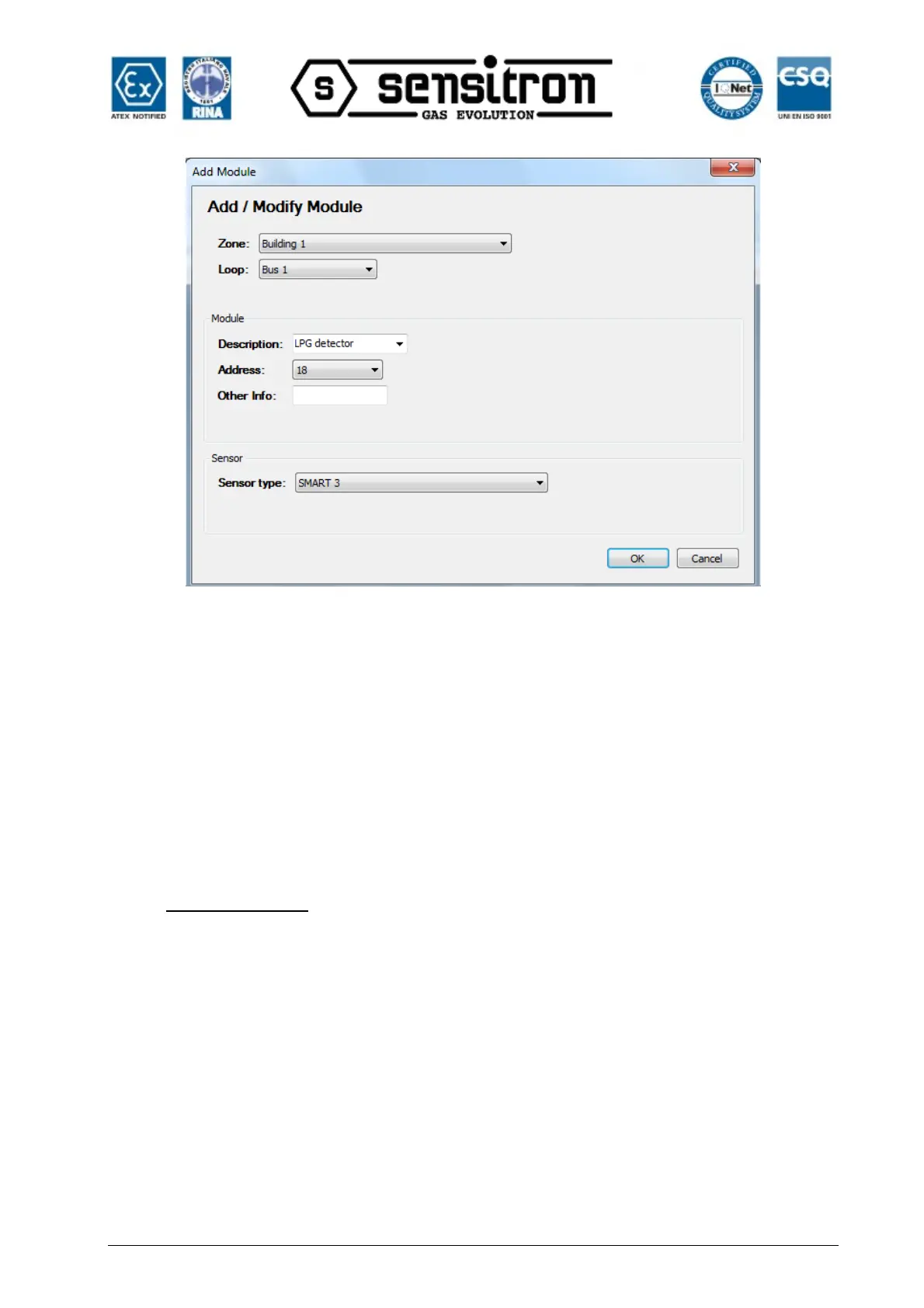

Fig. 4.5.4 c) Detectors configuration screen
Zone Zone where the Detector is installed
Bus Bus Number (RS485 bus) where the module is physically connected. 1 or
2 (3 and 4 optional)
Description Detector description
Address Detector address. From 1 to 256 (See chapter 2 – Installation, for details)
Other Info Additional description
Modify Sensor to edit Detector settings.
Delete Sensor to delete the Detector
Output Modules
STG/OUT16 output modules installed in the system are set in Output Module.
Click Add Output Module to open the window shown in Fig. 4.5.4 b.
