MT3401E.doc rev.0 21/05/13 Pagina 68 di 86

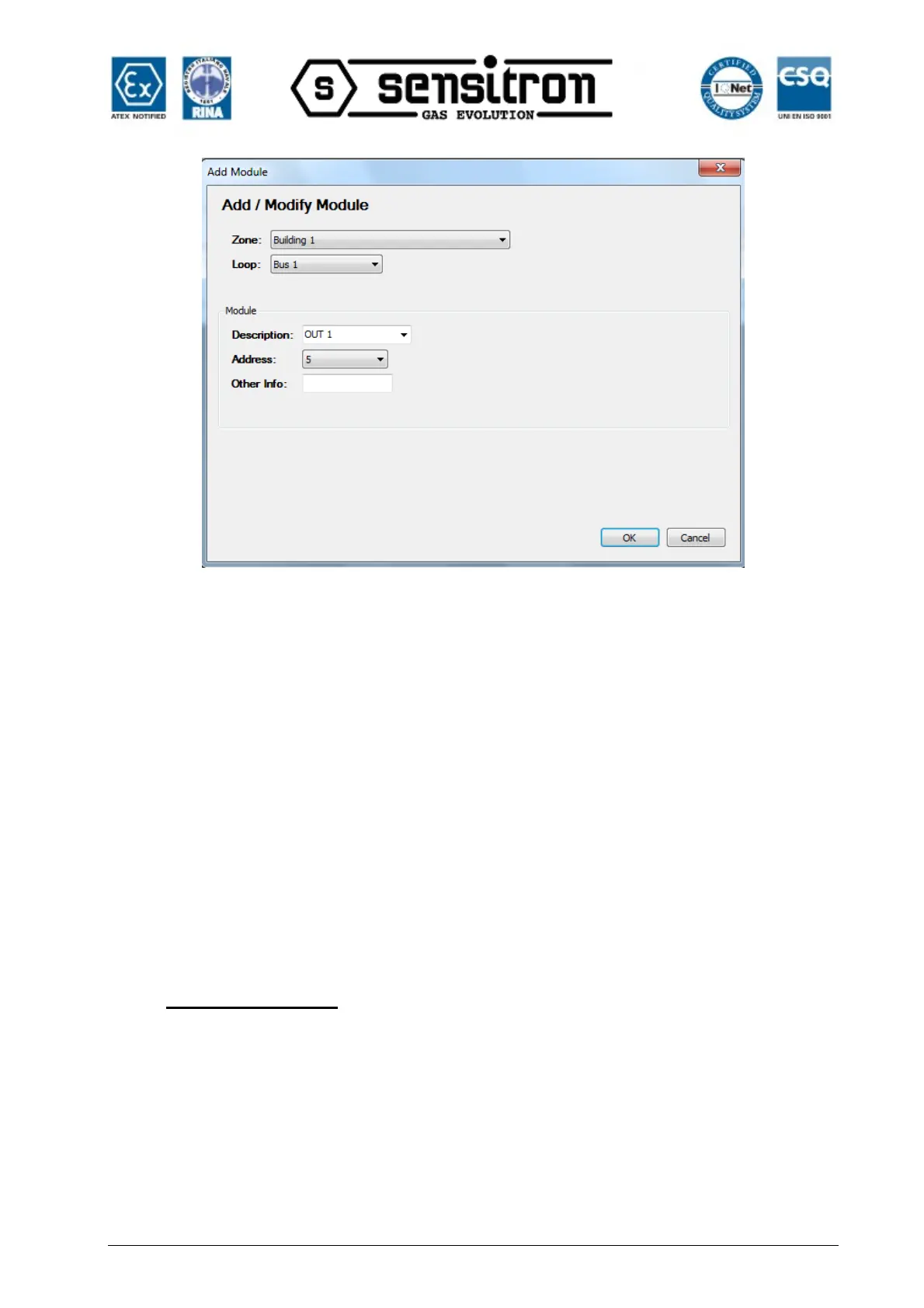

Fig. 4.5.4 d) Outputs configuration screen
Zone Zone where the module is installed
Bus Bus Number (RS485 bus) where the module is physically connected. 1 or
2 (3 and 4 optional)
Description Module description
Address Module address. From 1 to 256 (See chapter 2 – Installation, for further
information).
Other Info Additional description
Modify Output Module to edit module settings.
Delete Output Module to delete the module
4.5.5) Channels
Use the “Channels” menu to enable and program single gas Detector settings in the
system.
