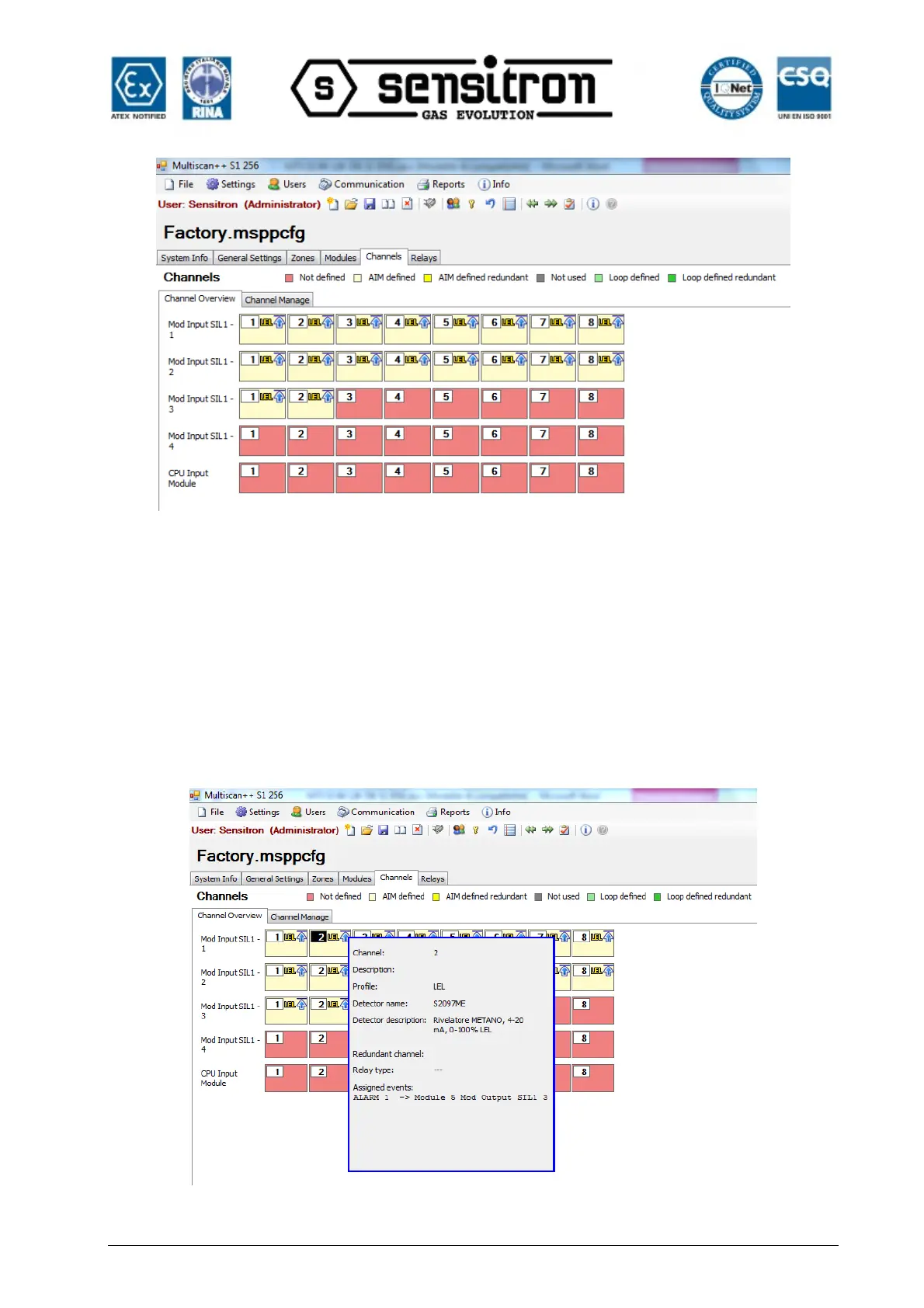

Fig. 4.5.5 a) Channels map screen
The Channel Overview gives a quick overview of how many Input modules and
detectors are programmed in the MULTISCAN++S1 configuration and these are
defined.
Different colours represent different characteristics like Not defined, Channel Defined,
Channel Redundant etc.
To choose a channel to view its data, simply pass the mouse over the channel and the
data for this channel will be shown by a popup window. Otherwise, for the modification
of the channel parameters: with a mouse click on the channel and the data will be
shown in the “Channel Manage” window.
Fig. 4.5.5 b) Channel popup window with the parameters
