MANUALE TECNICO – TECHNICAL HANDBOOK ST.PL4+
MT2770_rev2_PL4+.doc 10.11.2010 8 di 32
2 INSTALLAZIONE 2 INSTALLATION
2.1 Fissaggio meccanico 2.1 Mechanical fixing
Prima di collegare la centrale leggere
attentamente e seguire le istruzioni qui di
seguito riportate.
Before installing the control panel, read and
strictly follow the instructions detailed here
below.
Aprire il pannello frontale della centrale
ruotando la serratura su UNLOCK.
Scollegare il morsetto CN10 che collega i cavi
d'alimentazione della scheda al trasformatore
sul fondo del box; scollegare anche il morsetto
CN9 per il collegamento della batteria.
Richiudere il pannello frontale girando la
serratura su LOCK.
Togliere le 4 viti poste a lato del pannello e
rimuovere la parte frontale della centrale.
Ora è possibile forare la custodia posteriore per
consentire l'entrata dei cavi.
Raccomandiamo di eseguire l'entrata dei cavi
preferibilmente nella parte inferiore, utilizzando
un pressacavo idoneo IP65 per poter
mantenere lo stesso grado di protezione della
centrale.
Fissare la parte posteriore della centrale a
parete mediante le staffe di fissaggio riportate
in figura.
UNLOCK the control panel front door and open
it.
Disconnect the CN10 terminal, which connects
the power supply wires from the main PCB to
the transformer on the back side of the box,
and the CN9 terminal for the battery
connection.
Close the front door and LOCK it again.
Unscrew the four screws placed close to the
panel and remove it.
Now it is possible to drill the rear panel to allow
the cables entrance.
We would recommend having cables entering
from the lower side.
Make sure you are using an adequate IP65
rated cable gland to assure the box ingress
protection is not compromised.

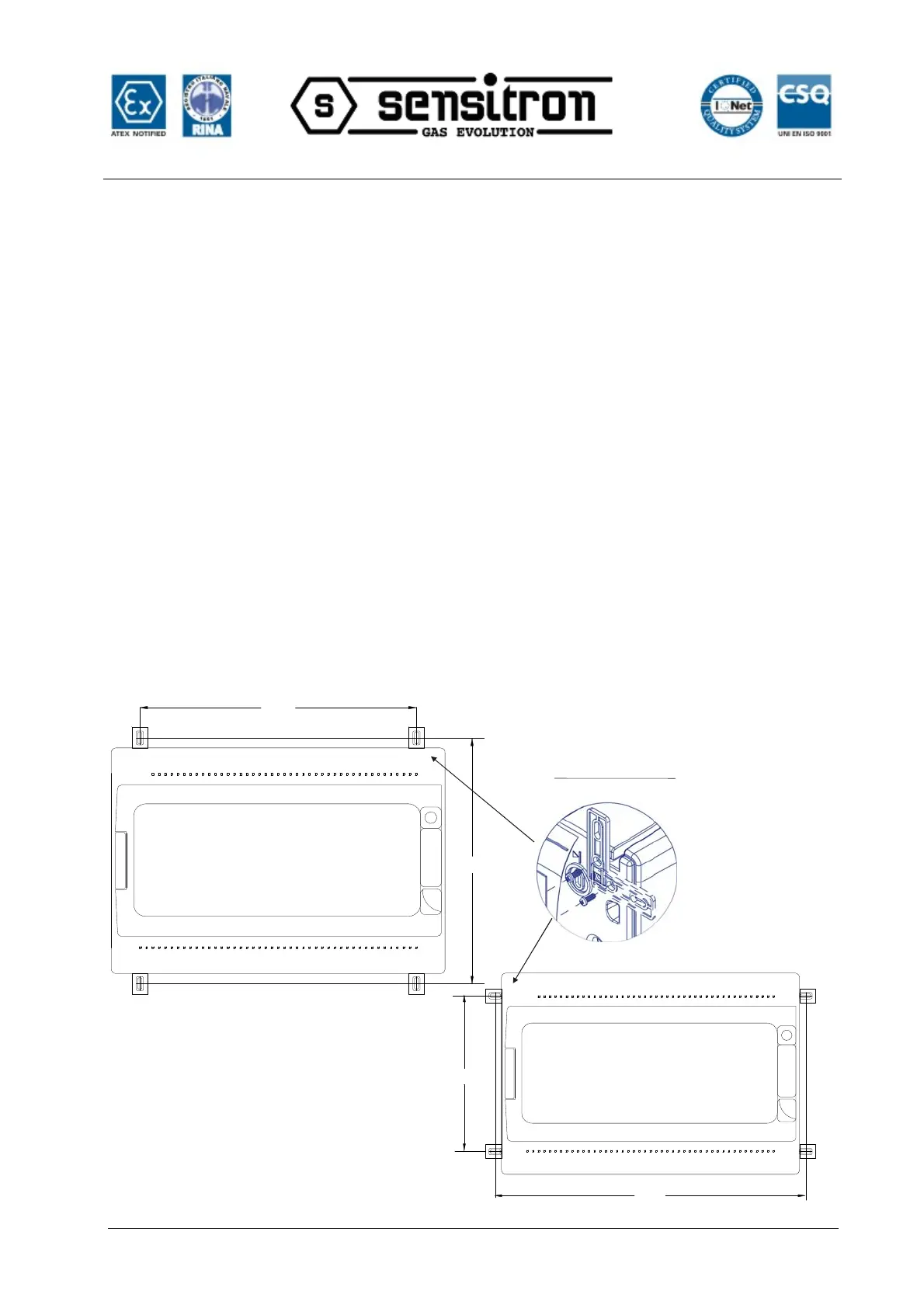

Wall fix the rear panel through the mounting
brackets detailed in the picture.
353,00
314,00 mm
mm
444,00 mm
223,00 mm
Non è necessario eseguire fori
nel box
It is not required to make any
hole in the box
