vMax Web Operation
700-1015 R002 3–5
3.3. vMax Web User Interface
The vMax Web interface is shown below. Section 1 (on the left) has four menus. vMax
Web opens with the Live tab selected and live video from the TL-HD and cameras
displaying.

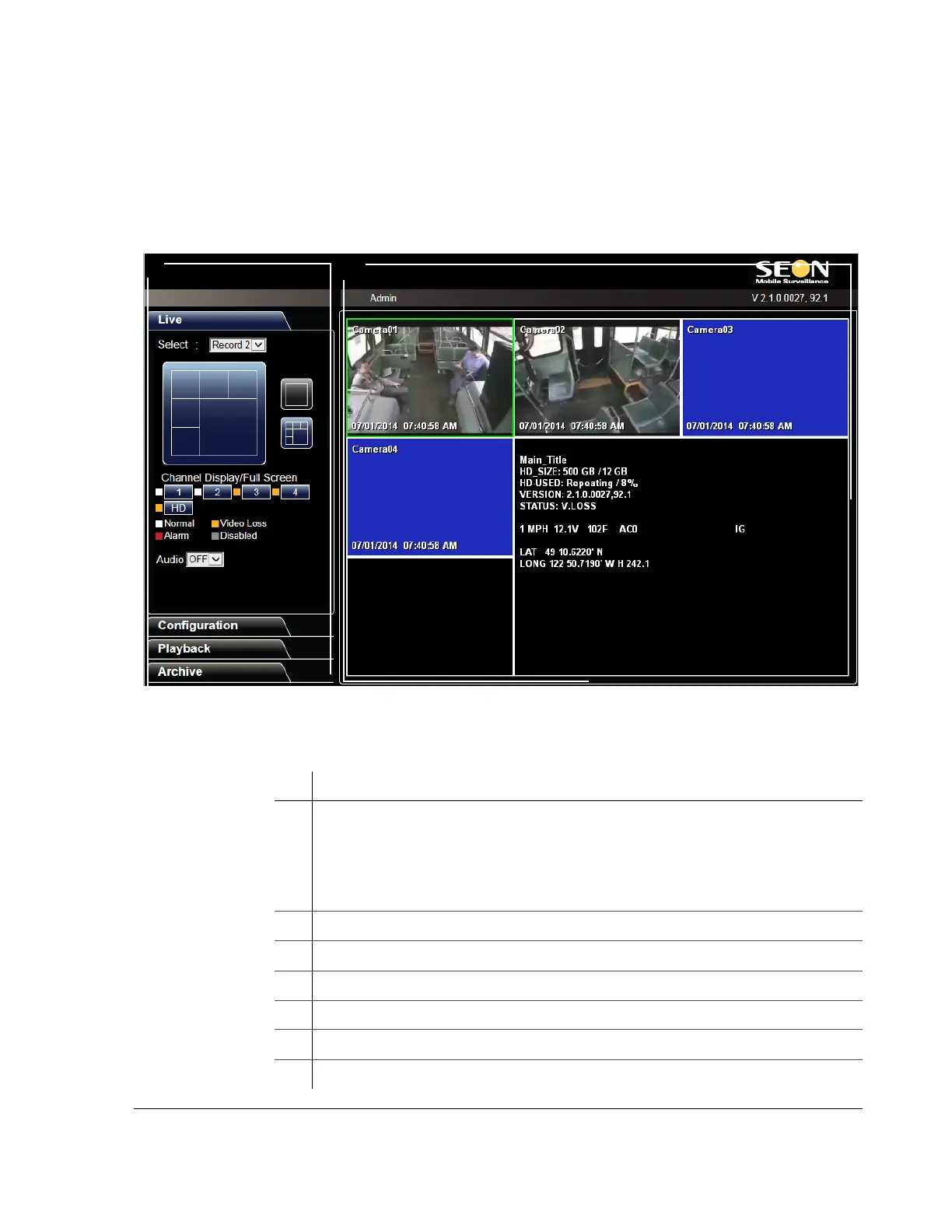

Figure 3-5 vMax Web User Interface
1
2
3
4
6
7
5
Table 3-2 User Interface Components
ID Description
1 Tab area.
• Live tab — live DVR video display and viewing controls
• Configuration tab — DVR setup menus
• Playback tab — search recorded DVR video
• Archive tab — archive recorded DVR video
2 Viewing Area — view multiple or single cameras and telemetry information
3 User login name
4 DVR firmware version
5 DVR information — DVR configurable; camera title, date and time
6 Overlay information — DVR ID, firmware version, and operating status
7 Telemetry information — DVR location, speed, and hard drive temperature
