Introduction
700-1015 R002 1–3
1.3. Product Features
The Explorer TL-HD DVRs contain the following features:
• supports four analog video channels and four audio channels
• has one high-definition video channel at 1280 × 720 pixel maximum resolution
• records up to 30 frames per second (FPS) on all 5 video channels
- 720 x 480 D1 analog
- 1280 × 720 digital
• offers dual stream recording; high-resolution stream for playback on a PC, and a
lower resolution stream for viewing over a cellular phone network
•offers H.264 and MJPEG video compression for enhanced compression and
quality
• has removable hard disk DVR drive, that stores up to 1 TeraByte (TB)
• has removable SD card drive, use Seon approved cards only
• DVR Health Check monitors DVR and hard drive status and notifies the
administrator of any issues, ensuring all onboard events are captured, using the
vMax Commander video management software Health Check feature
• uses Global Positioning System (GPS) technology for Geo-fencing, to designate a
geographic boundary for the vehicle and provides an alert if the vehicle leaves the
area
• uses G Sensor technology to provide driver behavior and accident impact velocity
data
• configure, playback, and archive video from the DVR locally with trackball
mouse, monitor, and DVR On Screen Display (OSD) and USB memory stick
• configure, playback, and archive video from the DVR remotely with vMax Web
via Wi-fi network or Ethernet connection
• interfaces with network using the RJ-45 connections on the front and back panel
• has Expansion and Power Thru ports for device connectivity
• mounting options that can accommodate horizontal or vertical installation
• keyed access to front cover and secure cable cover with slotted cable entries to
restrict access to authorized personnel, as shown.

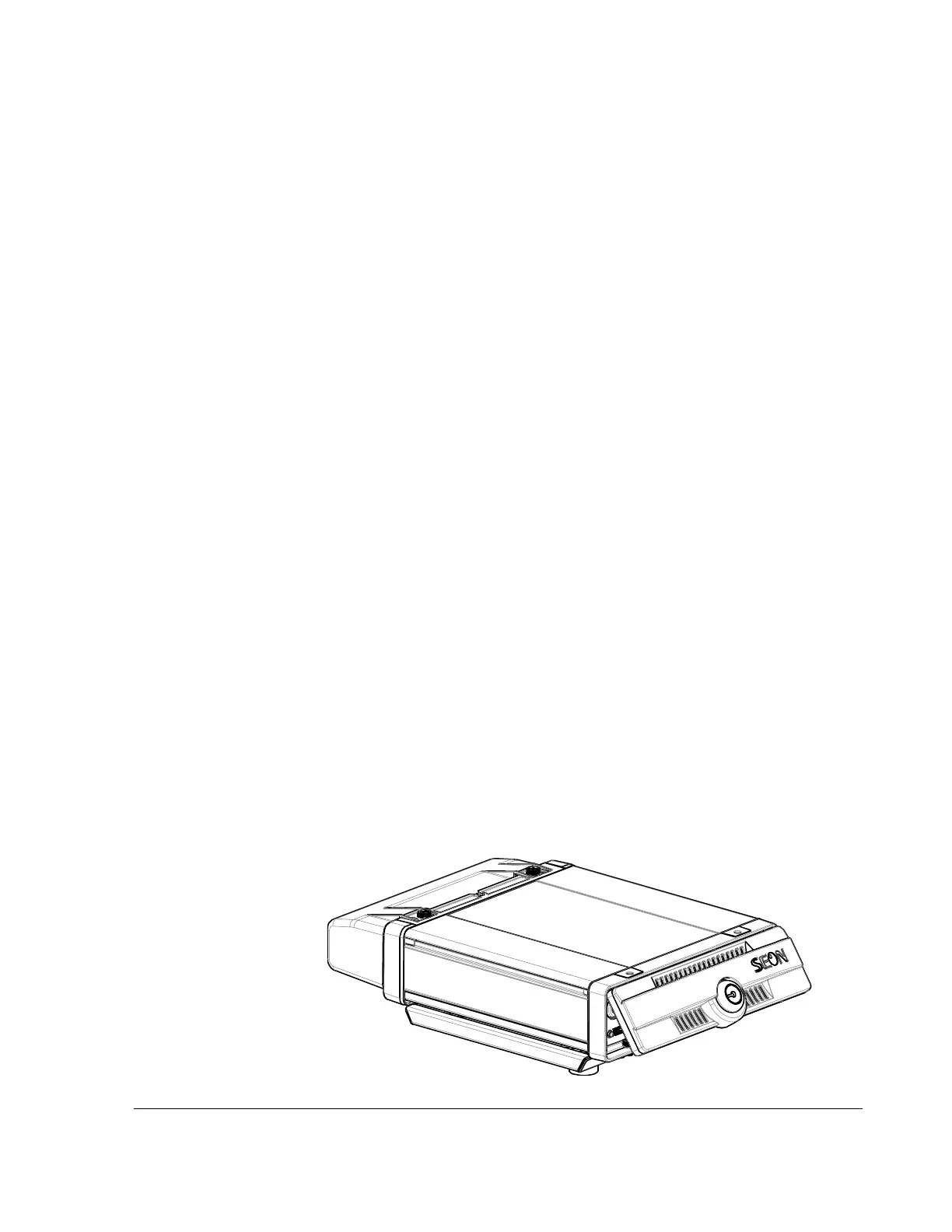

Figure 1-1
TL-HD DVR with Security Front Cover and Secure Cable Cover
