Rear Panel Connections

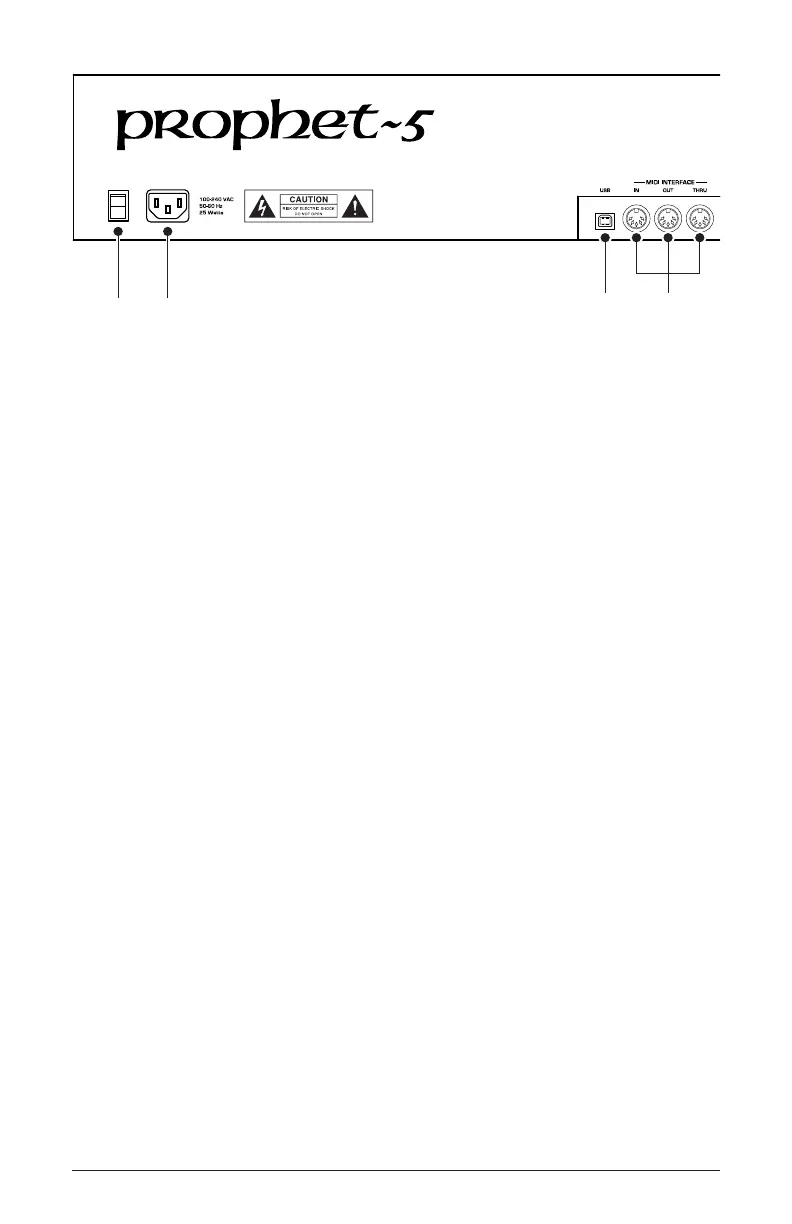

The rear panel of the Prophet-5 has connectors for power, USB, MIDI,
audio, and pedals.
1. Power On/Off—This rocker switch controls power on and off to the
Prophet-5.
2. AC Power Connector—Accepts a standard, grounded IEC power
cord. Operates over a range of 100 to 240 volts and 50 to 60 Hz.
3. USB—For bidirectional MIDI communication with a computer. The
Prophet-5 is a Class Compliant USB device and does not require addi-
tional drivers when used with Mac OS or Windows. See “Using USB” on
page 4 for more information.
4. MIDI In, Out, Thru—Standard 5-pin MIDI DIN connectors for
communicating with MIDI-equipped devices.
5. Release—Accepts a momentary, normally open or normally closed
footswitch to control sustain.
6. Pedal —These two connectors accept a standard expression pedal
that has a variable resistor on a TRS (tip-ring-sleeve) ¼ inch phone plug.
Connecting a pedal to the amp connector controls volume. Connecting a
pedal to the filter connector controls lter cutoff.
