Seriallink SLK-R602 Series User Manual





7 / 29 7 / 29
SLK-R602 Series Industrial Cellular Router
Web：www.seriallink.nete‐Mail：info@seriallink.netMobilePhone：+86‐18682315199

2.2Dimensions：
The dimensions are shown below. Senor group g industrial 4 g router supports standard 35 mm DIN rail
installation, as well as wall-mountable installation as shown in the figure below: (unit: mm) fixed screw and
routing equipment specifications for: M3 * 5 mm countersunk head screw. Note: no fixed installing 4 g
industrial router screw M3, the depth of the screw to lock into the 4 g industrial router is 3 ~ 4 mm.

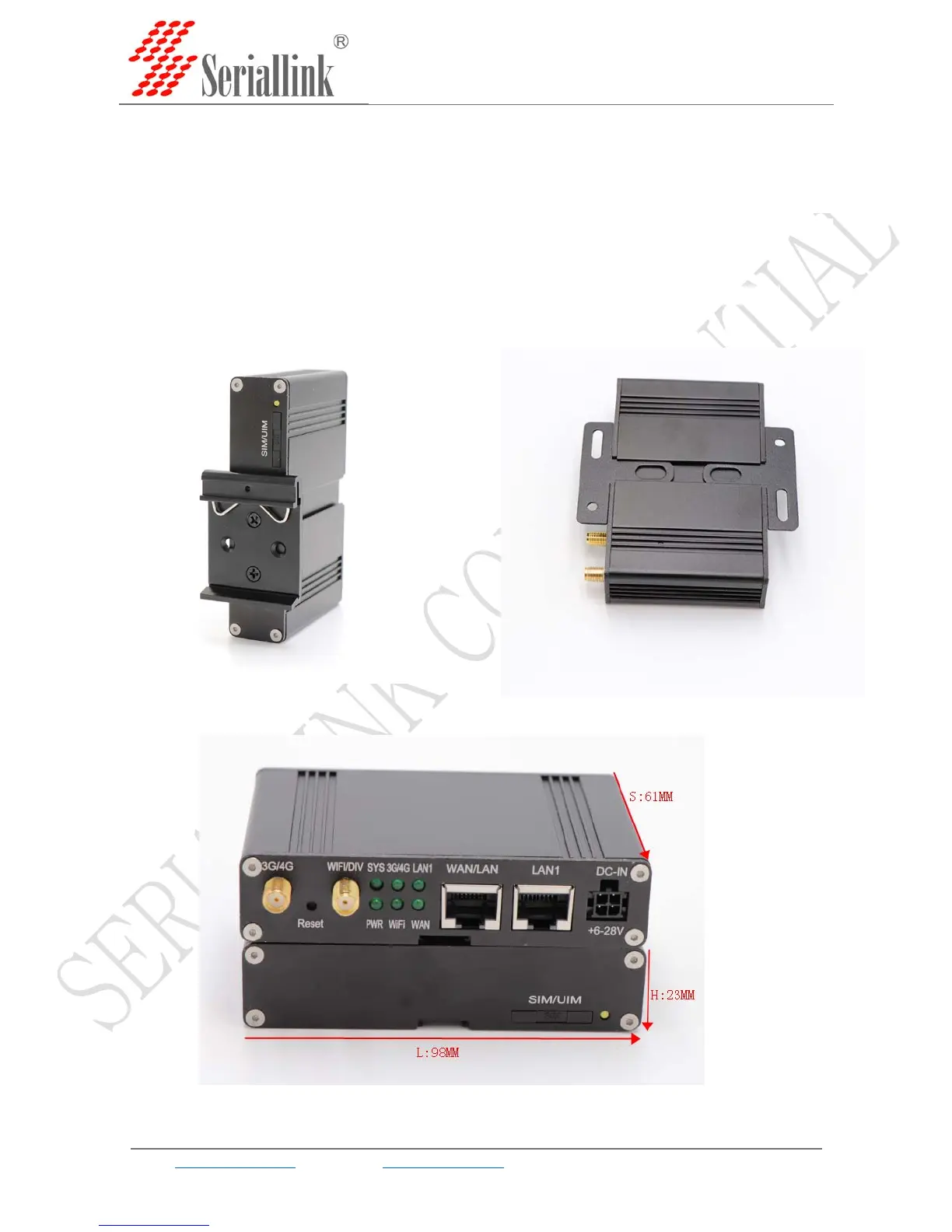

DIN installation diagram: Wall mounting diagram:
Dimension:(unit:mm)

Seriallink SLK-R602 Series Specifications

General

Brand	Seriallink
Model	SLK-R602 Series
Category	Network Router
Language	English
