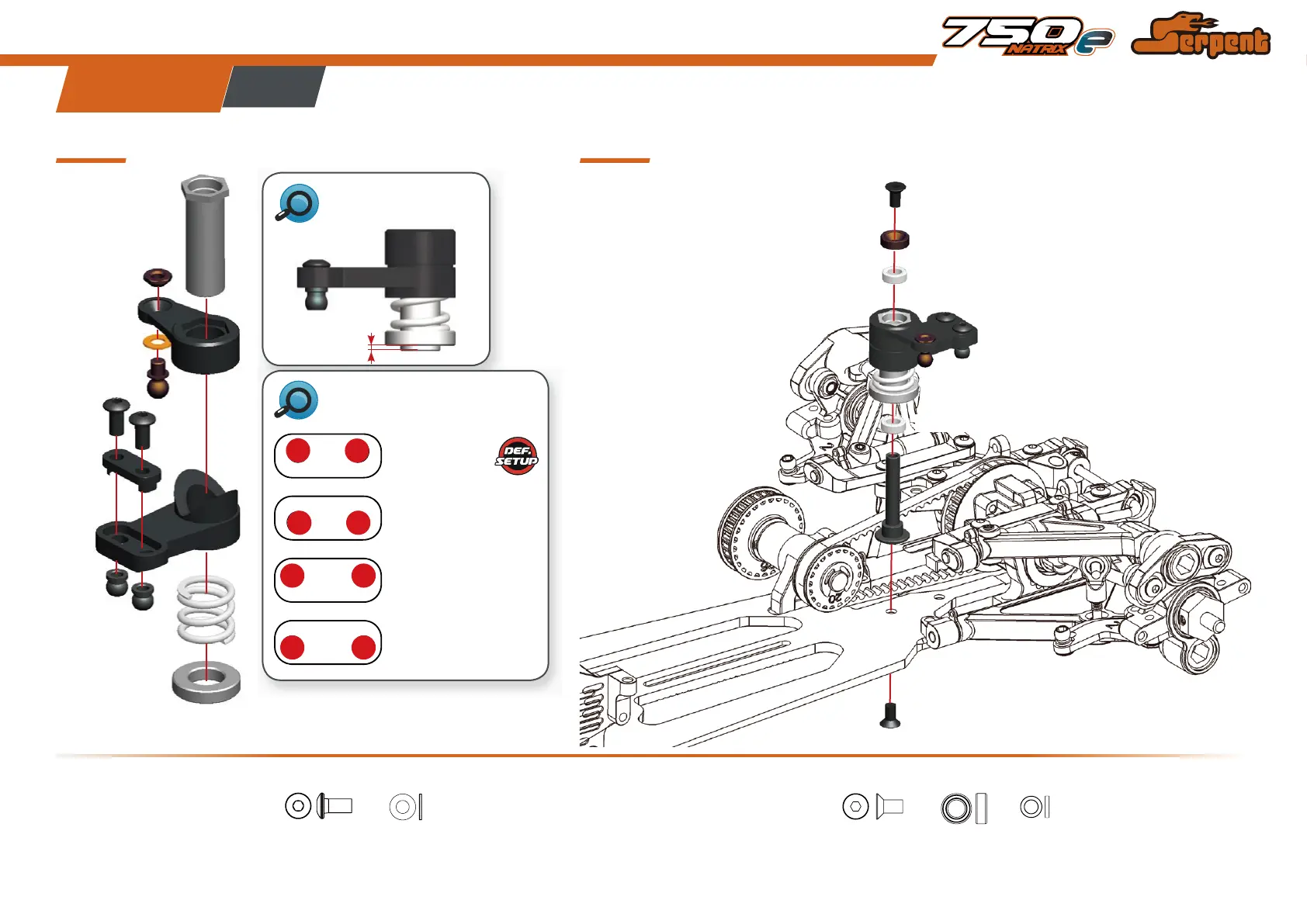

33.1
33.2
Preload the servo-saver-
spring 1mm.
1 mm
M3x6
M3x6
4x7x2.5
M3x6
3x6x0.5
M3x6
M3x6
SERVOSAVER ACKERMANN
INSERTS
REARWARD
NARROW
FORWARD
WIDE
REARWARD
WIDE
FORWARD
NARROW
4X7X2.5
3x5x1
3x6x0.5
4x7x2.5
BAG 9
STEP 33
23
STEERING ASSEMBLY
