Serpent Natrix 750-E - SHOCK ASSEMBLY

43.1
44.1
44.243.2
1
2
Use some silicone oil
during the assembly.
Use some silicone oil
during the assembly.
For the correct piston holes please
check the default setupsheet.

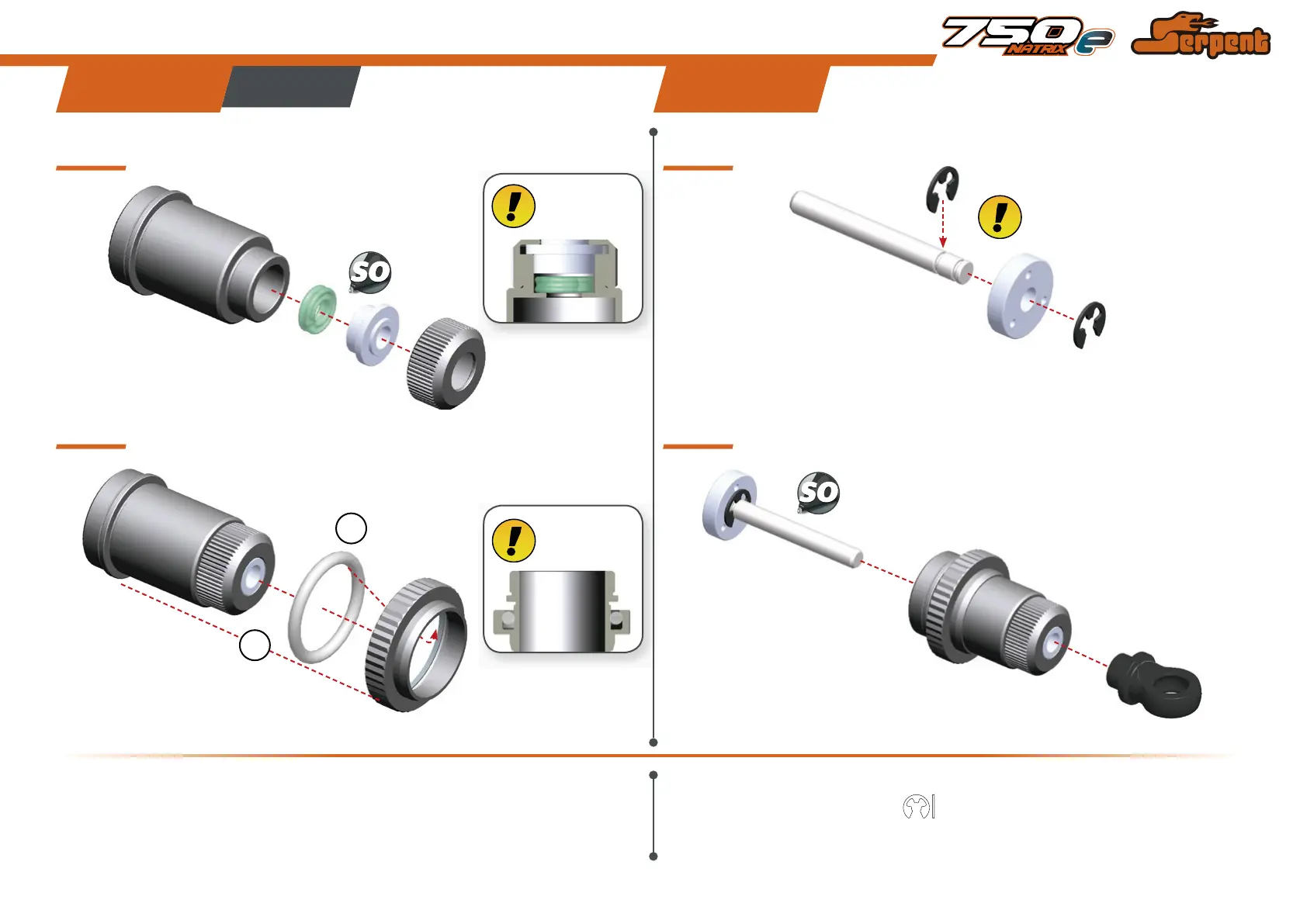

Insert the o-ring
inside the spring
collar.
Note the correct
orientation of the
shock spacers .
Note the correct
position of the
o-ring .
R2.3
R2.3
R2.3
SHOCK BAG
STEP 43 STEP 44
SHOCK ASSEMBLY
30
