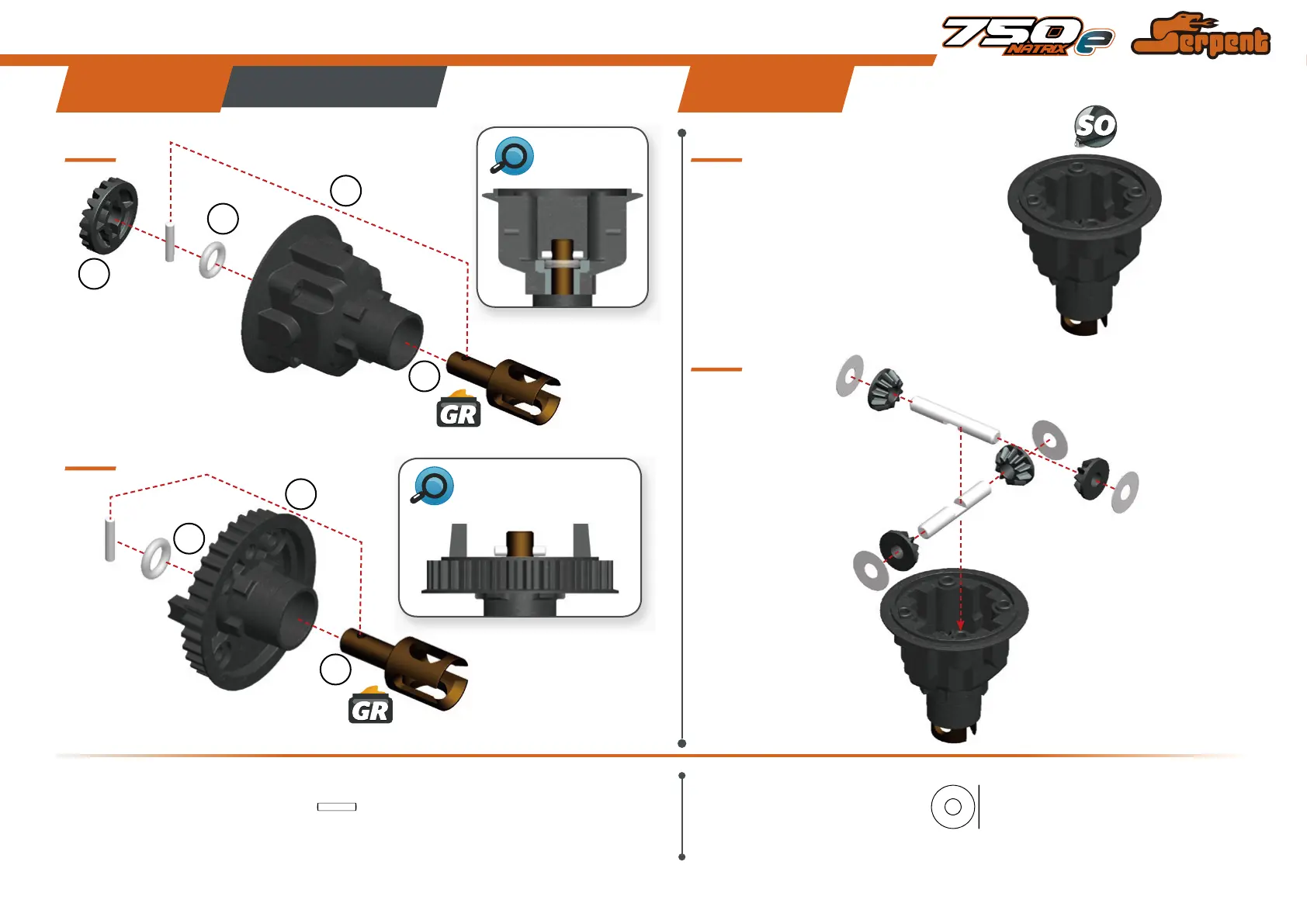

Serpent Natrix 750-E - FRONT DIFF ASSEMBLY

1.7x8.5
1.7x8.5
1.1
1.2
3
3
4
1
1
2
2
Add just enough oil to cover the large gear before
assembling the small satellite gears and cross pins.
For the correct cst value please check the default
setupsheet.
2.2
2.1
Note the correct
pin location.
Note the correct pin location.
4x10x0.2
4x10x0.2
4x10x0.2
4x10x0.2
1.75x8.5
4x10x0.2
FRONT DIFF ASSEMBLY
FRONT DIFF BAG
STEP 1 STEP 2
4
