3.2
3.1
M3x3
Fill the differential with
evoba mm 1 lio enocilis
the crosspin, do NOT
cst value please check
the default setupsheet.
Add the big gear.
Mount the diff top-case on the lower case, make sure to follow below Detail View, and
tighten the screws.
1- Allow the excess of oil to escape
through the escape hole.
2- Close the hole with the 3x3
setscrew. Tighten carefully.
3- In case the diff feels too hard
remove the M3x3 set screw and
let some oils to escape and colse
again. Tighten carefully.
M2.5x10
M3x3
M2.5x10
HOW TO CLOSE THE FRONT DIFF

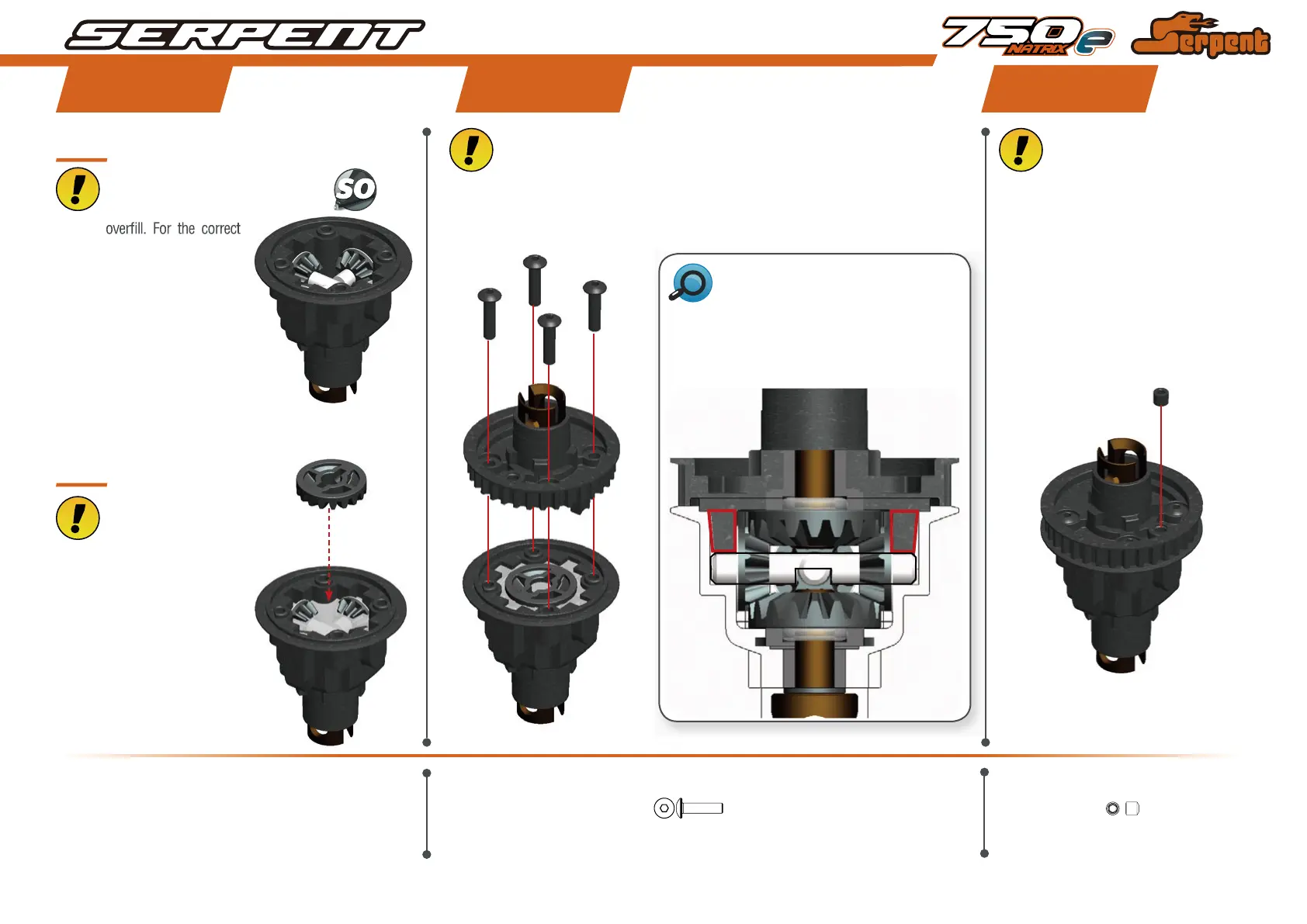

The front diff top case has two protrusions (see below
picture in red) to hold the geardiff shafts in the correct
position. The two protrusions press on the upper
shaft and thus secure the shafts in position.
STEP 5STEP 4STEP 3
5
