Serpent Viper 989 - Page 15

15
bag 5
STEp 17
Note the correct gearbox
assembly
1- The M2.5x10 screw adjust
the SHIFT POINT. As default
adjustment screw it in all
the way (do not overtighten to avoid
spring deformation), then unscrew 3
turns.
2- Adjust the M4x4 screw to minimise
the gap between the shoes and the
bell, but still spinning free without
touching. Check after each run.

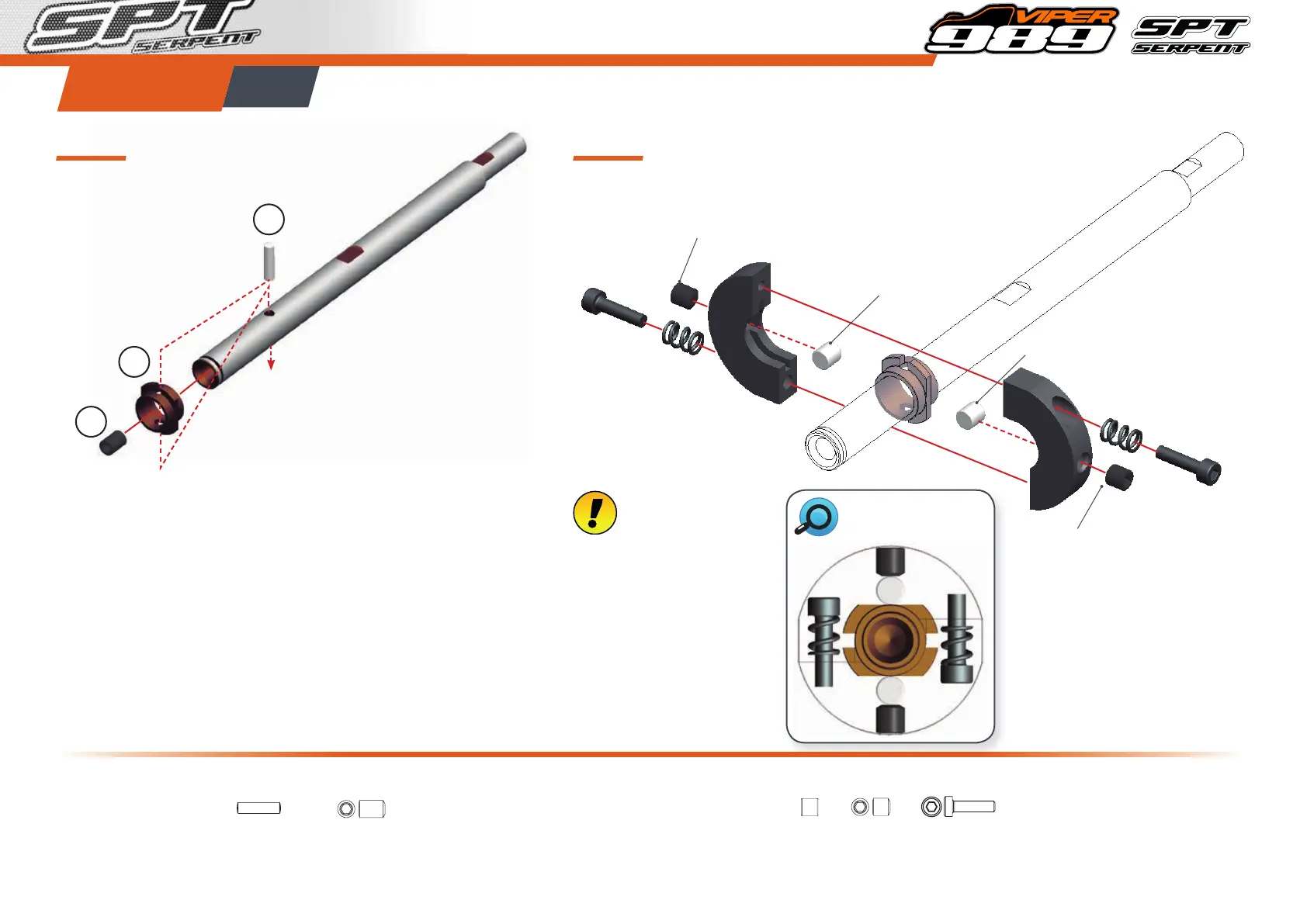

17.1 17.2
1
2
3
2.5x10
M4x4
M4x4
4x4
4x4
M4x4
M2.5x10
M2.5x10
2.5x10
M4x6
M4x6
4x4
M2.5x10
