Serpent Viper 989 - Clutch and Gearbox Exploded View

47

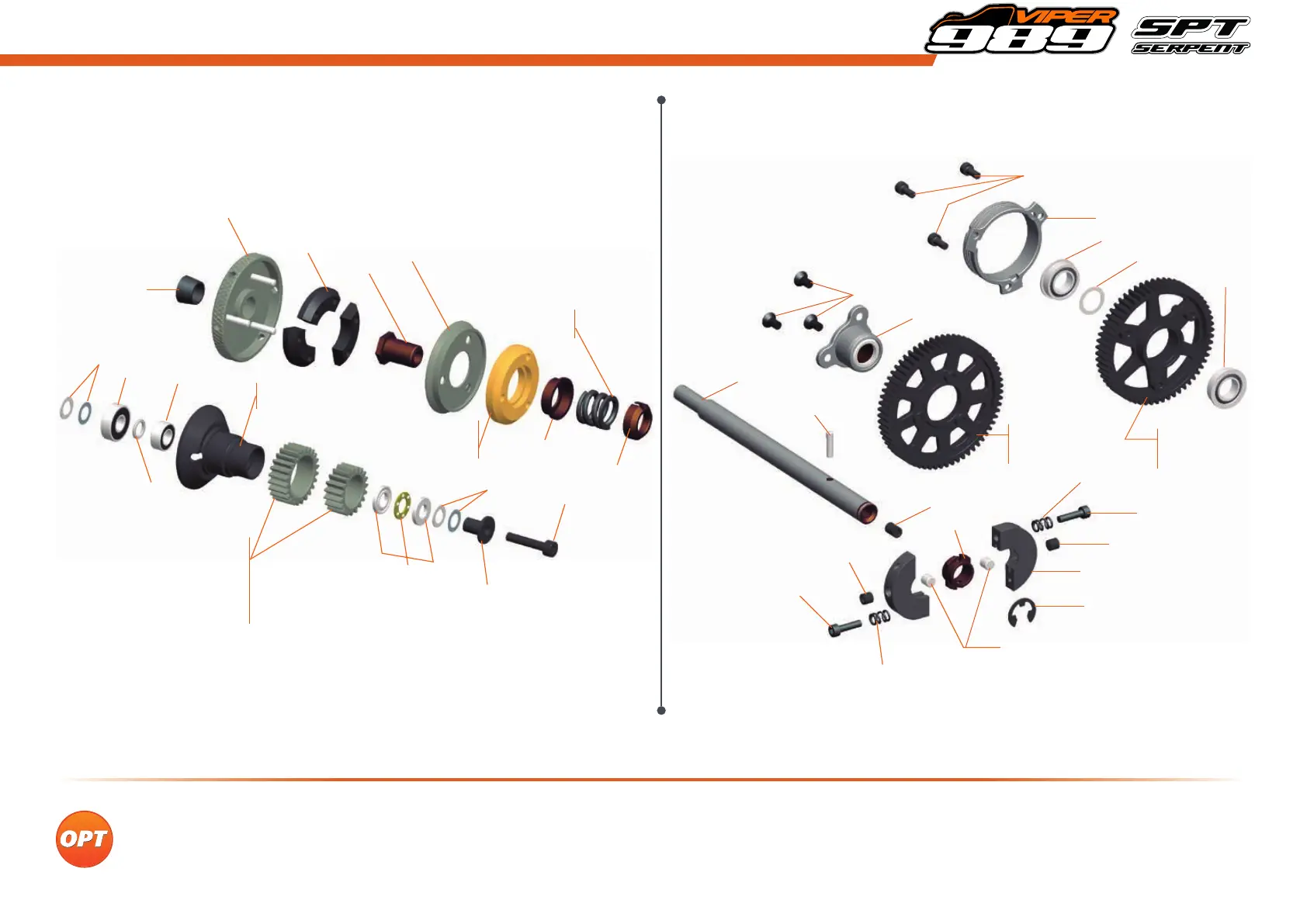

ClUTCh aND gEaRbOX EXplODED VIEW
6587XP Centax clutch shoe XP
903239 Centax-2 clutch shoe red
903640 Centax gear-pinion alu 18T XLI
903642 Centax gear-pinion alu 20T XLI
903643 Centax gear-pinion alu 23T XLI
903645 Centax gear-pinion alu 25T XLI
903646 Centax gear-pinion alu set XLI (6)
903636X 2-speed gear 61T SL8 XLI V2
903637X 2-speed gear 62T SL8 XLI V2
903717 Centax clutchbell alu nickel coated V2
903732 2-speed gear 56T XLI Gen2
903733 2-speed gear 57T XLI Gen2
903771 2-speed gear set (6) XLI Gen2
909520 Centax II / III spring 1.8 (10mm)
6503
903399
903401
909512
6582
110501
110500
110423
909514
909516
110107
110424
1377
903400
903239 opt
6584
6583
903636X opt
903732 opt
903637X opt
903733 opt
903638X
903734
903729
110118
110306
110118
110228
1394
110122
903731
903725
110119
110213
110432
110199
110227
909520 opt
903647
6587XP opt
6587N
903717 opt
1388 opt
903644
903645 opt
903640 opt
903642 opt
903641
903643 opt
903728
110228
903728
903730
1394
903727
